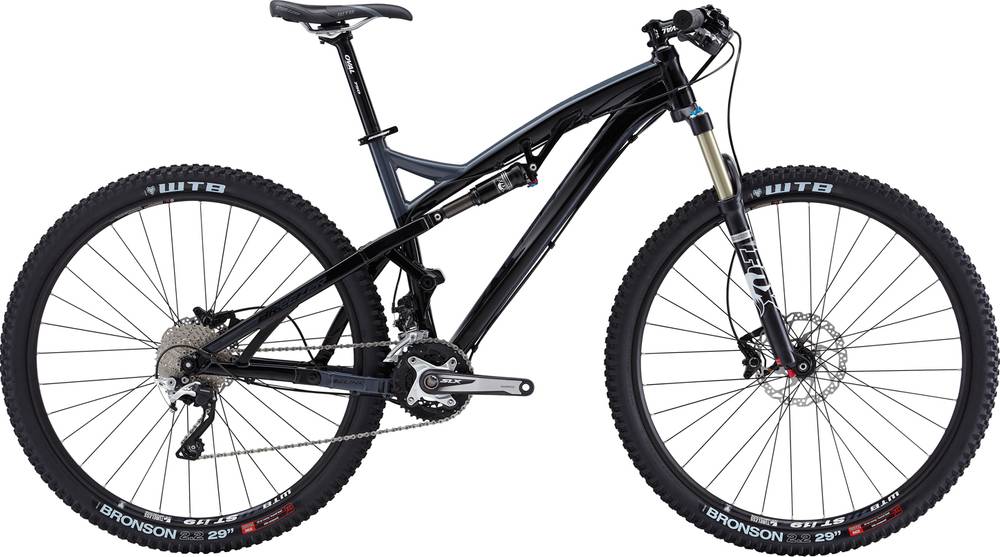

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Float 32
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Breezer D'Fusion Hydroformed Custom-Butted 6066 Aluminum, Tapered Head Tube, BB92 Press-Fit Bottom Bracket, Sealed Cartridge Bearing Pivots
Suspension Fork
Fox 32 Float 29 O/C CTD, 1.5" Taper Steerer, 15QR Axle, Lockout, 120mm Travel
Rear Shock
Fox Float CTD Boost Valve, 120mm Travel
Drivetrain
Rear Derailleur
Shimano Deore XT 10-Speed, SGS, Shadow Plus Design
Front Derailleur
Shimano SLX 10-Speed, Direct Mount
Shift Levers
Shimano SLX 20-Speed, I-Spec
Cassette
Shimano HG-62 10-Speed, 11-36T
Crank
Shimano SLX 10-Speed, Hollowtech II, 38-24T
Bottom Bracket
Shimano BB92 Press-Fit Bearing System
Chain
KMC X10
Pedals
-
Wheels
Rims
Formula 15mm Thru-Axle 32H CenterLock Front / Shimano SLX 12mm Thru-Axle 32H CenterLock Rear, WTB Frequency ST i19 TCS 29" Rims (Tubeless-Ready)
Tires
WTB Bronson 29x2.2" Race
Brakes
Brakes
Shimano M615 Hydraulic Disc Brake, 180mm Front, 160mm Rear
Brake Levers
Shimano M615 Hydraulic Disc Brake
Cockpit
Stem
Oval Concepts 713, 3D-Forged 7050 Aluminum, 31.8, 6°/84°
Handlebar
Oval Concepts 650, 7050 Aluminum, 31.8, 710mm Wide, +/- 5mm Rise, 9° Sweep
Headset
FSA Orbit 1 1/8"-1 1/2", Fully Integrated, 36° ACB-Sealed, 7.8mm Aluminum Top Cover
Seat
Saddle
WTB Volt, Satin Steel Rail
Seatpost
Oval Concepts 750, 3D-Forged 7050 Aluminum, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.41 mm | 1.41 mm | 1.39 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 680.3 mm | 696.1 mm | 706.8 mm | 722.7 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Stack | 594.9 mm | 604.3 mm | 613.7 mm | 623 mm |
| Reach | 414.9 mm | 427.3 mm | 434.6 mm | 447.1 mm |
| Top Tube Length | 581 mm | 596 mm | 606 mm | 621 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 430 mm | 470 mm | 500 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1123 mm | 1139 mm | 1150 mm | 1166 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 761 mm | 761 mm | 764 mm | 771 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Supercell Pro completes the Breezer Supercell model. Breezer released 17 bikes variations of this model so far. You can get a glimpse at all models from 2014, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Supercell Pro components
Fork
Breezer Supercell Pro 2014 bike is equipped with the Fox Float 32 fork, and has 120mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Breezer Supercell Pro bike has the Fox Float CTD Boost Valve model installed, and has a travel of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the Supercell Pro model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Supercell Pro comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Breezer Supercell Pro bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
