Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Float 32
-
Groupset XT -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Breezer D'Fusion Hydroformed Custom-Butted 6066 Aluminum, Tapered Head Tube, BB92 Press-Fit Bottom Bracket, Sealed Cartridge Bearing Pivots
Suspension Fork
Fox 32 Float 29 FIT CTD w/ Trail Adjust, Kashima Coat, 1.5" Taper Steerer, 15QR Axle, Lockout, 120mm Travel
Rear Shock
Fox Float CTD Boost Valve w/ Trail Adjust, Kashima Coat, 120mm Travel
Drivetrain
Rear Derailleur
Shimano Deore XT 10-Speed, SGS, Shadow Plus Design
Front Derailleur
Shimano Deore XT 10-Speed, Direct Mount
Shift Levers
Shimano Deore XT 20-Speed, I-Spec
Cassette
Shimano HG-81 10-Speed, 11-36T
Crank
Shimano Deore XT 10-Speed, Hollowtech II, 38-24T
Bottom Bracket
Shimano BB92 Press-Fit Bearing System
Chain
KMC X10
Pedals
-
Wheels
Rims
Shimano Deore XT 15mm Thru-Axle 32H CenterLock Front / Shimano Deore XT 12mm Thru-Axle 32H CenterLock Rear, WTB Frequency Race i19 TCS 29" Rims (Tubeless-Ready)
Tires
WTB Bronson 29x2.2" TCS (Tubeless-Ready)
Brakes
Brakes
Shimano Deore XT Hydraulic Disc Brake, 180mm Front, 160mm Rear
Brake Levers
Shimano Deore XT Hydraulic Disc Brake
Cockpit
Stem
Oval Concepts 713, 3D-Forged 7050 Aluminum, 31.8, 6°/84°
Handlebar
Oval Concepts 650, 7050 Aluminum, 31.8, 710mm Wide, +/- 5mm Rise, 9° Sweep
Headset
FSA Orbit 1 1/8"-1 1/2", Fully Integrated, 36° ACB-Sealed, 7.8mm Aluminum Top Cover
Seat
Saddle
WTB Volt, Ti/Cro Tubular Rail
Seatpost
Oval Concepts 750, 3D-Forged 7050 Aluminum, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.41 mm | 1.41 mm | 1.39 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 680.3 mm | 696.1 mm | 706.8 mm | 722.7 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Stack | 594.9 mm | 604.3 mm | 613.7 mm | 623 mm |
| Reach | 414.9 mm | 427.3 mm | 434.6 mm | 447.1 mm |
| Top Tube Length | 581 mm | 596 mm | 606 mm | 621 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 430 mm | 470 mm | 500 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1123 mm | 1139 mm | 1150 mm | 1166 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 761 mm | 761 mm | 764 mm | 771 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

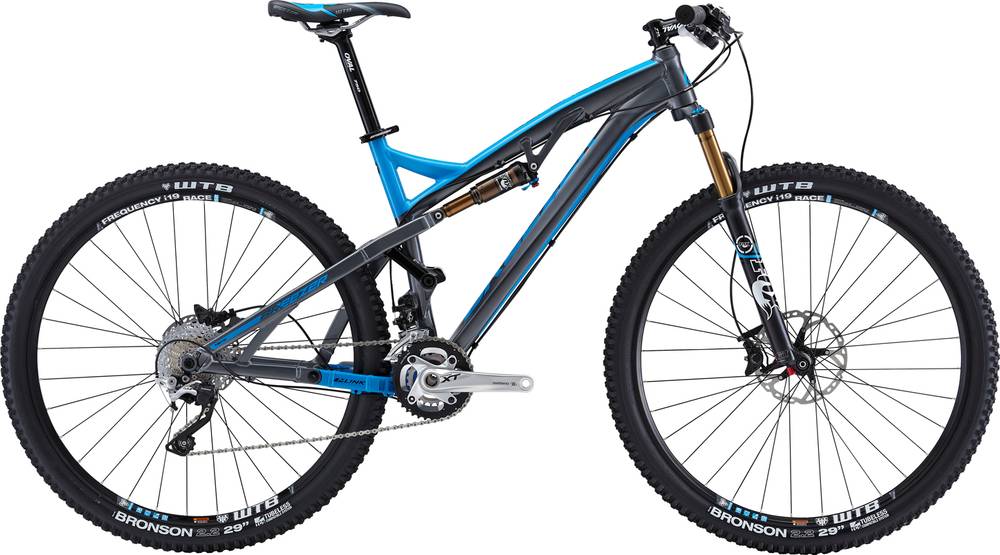

Supercell Team is part of the Breezer Supercell model. Breezer launched 17 bikes of this model so far. You can easily view all of the Breezer Supercell bikes models from 2014, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Supercell Team components
Fork
This bike has the Fox Float 32 fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is Fox Float CTD Boost Valve w/ Trail Adjust, with a travel distance of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on Supercell Team are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Breezer Supercell Team is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Supercell Team comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
