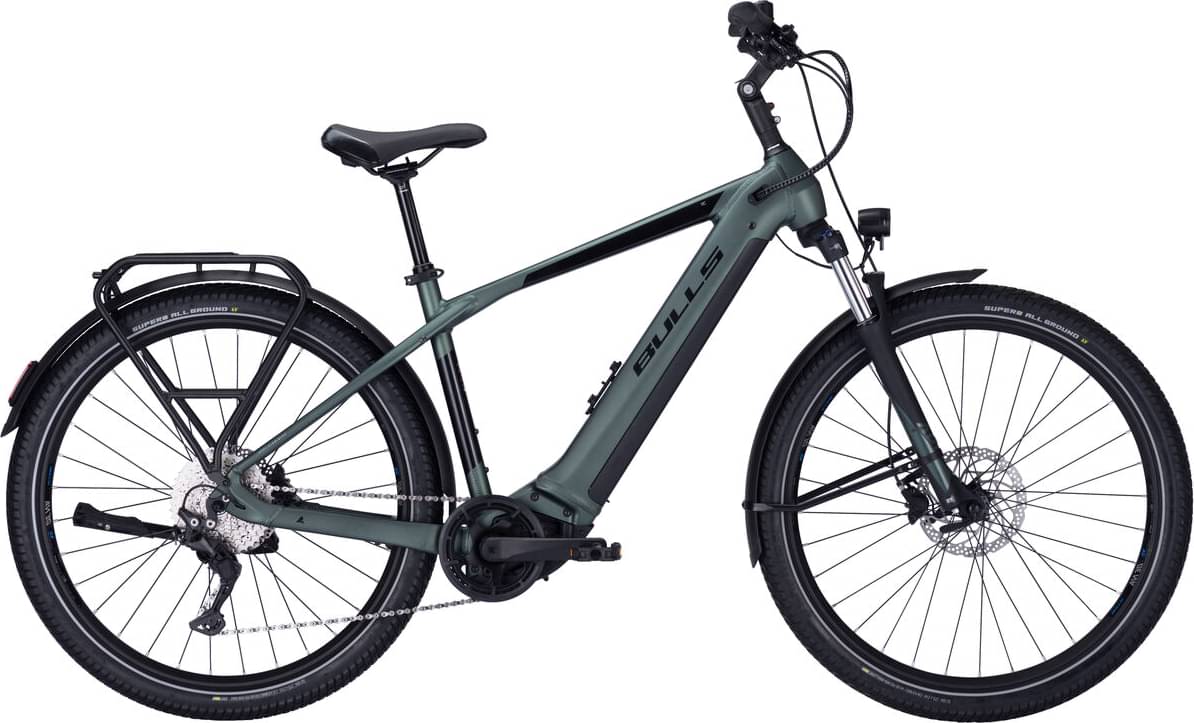

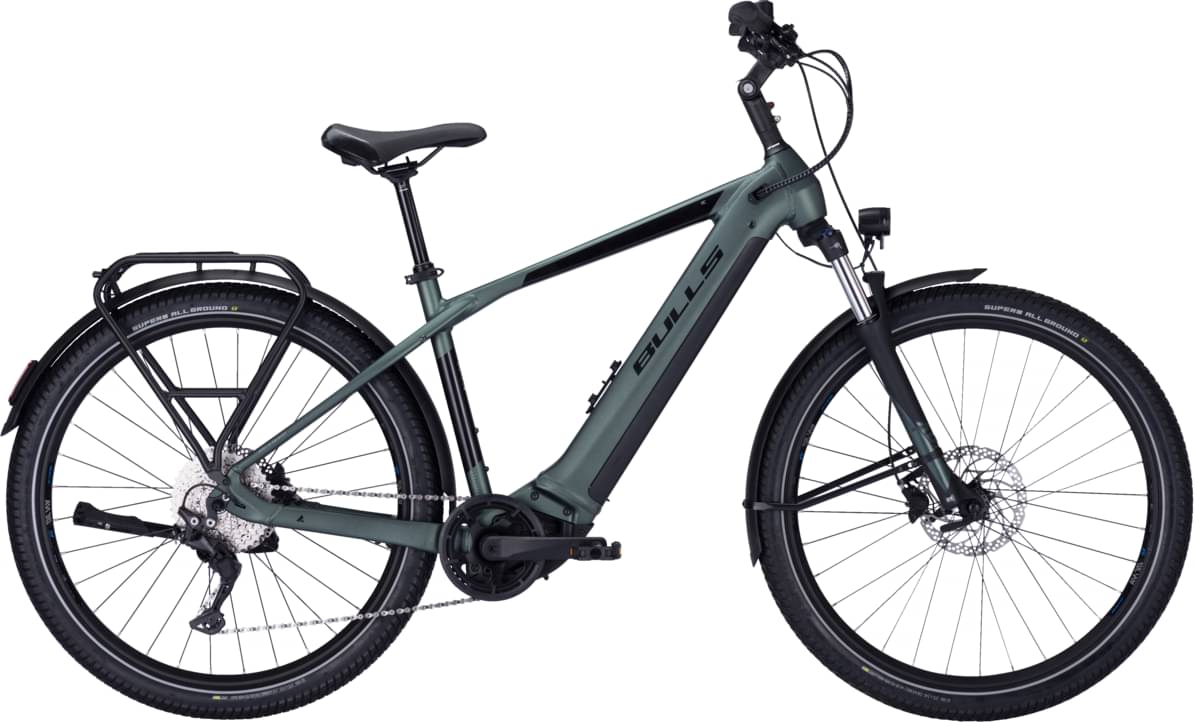

BULLS Iconic EVO 1 750 27.5” Diamond 2022
2022 E-bike
Estimate price |
4,816$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube Horizontal 750 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy
Suspension Fork
SR SUNTOUR XCM-ATB HLO
Drivetrain
Rear Derailleur
SHIMANO Deore RD-M5120-SGS Shadow Plus
Shift Levers
SHIMANO Deore SL-M4100-R
Cassette
SHIMANO Deore CS-M4100-10 11-42T
Crank
FSA 165mm
Chain
KMC E10S
Pedals
wellgo C-098DU black body
Wheels
Front Hub
SHIMANO HB-MT200
Rear Hub
SHIMANO FH-MT200-B
Rims
RYDE Disc 30
Tires
SUPERO All Ground
Brakes
Brakes
hydraulic disc brake
Brake Levers
TEKTRO HD-M390
Cockpit
Stem
Aluminium, verstellbar
Handlebar
STYX MTB Alloy
Headset
FSA no.57 B-1
Seat
Saddle
Iconic SUV
Seatpost
LIMOTEC A3-Z suspension dropper, 30,9 mm
Motor & Battery
Motor
Bosch Performance Line CX (Smart System) 25/85Nm
Battery
Bosch PowerTube Horizontal 750 Wh
Remote
Bosch LED Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 41cm | 44cm | 48cm | 54cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.43 mm | 1.43 mm | 1.38 mm | 1.42 mm |
| Front Center | 748 mm | 753 mm | 762 mm | 789 mm | 820 mm |
| Rake | 47 mm | 47 mm | 46 mm | 46 mm | 46 mm |
| Trail | 95 mm | 95 mm | 97 mm | 97 mm | 97 mm |
| Stack | 626 mm | 626 mm | 635 mm | 645 mm | 681 mm |
| Reach | 432 mm | 437 mm | 444 mm | 466 mm | 481 mm |
| Top Tube Length | 608 mm | 613 mm | 628 mm | 653 mm | 678 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 440 mm | 480 mm | 540 mm | 600 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm | 180 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1174 mm | 1179 mm | 1189 mm | 1216 mm | 1247 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
About this model
Iconic EVO 1 750 27.5” Diamond completes the Bulls E Iconic model. There are 38 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the BULLS Iconic EVO 1 27.5” 2022 has a starting price of 3821$. BULLS Iconic EVO TR 2 750 27.5” 2022 on the other hand is the most expensive at 5733$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Comfort e-bikes average price
According to our math, the average price for a trustworthy Comfort e-bike is 1957$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Comfort e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Bulls released this model in 2022, its price was 4458$. In conclusion, this e-bike price is 127.8% higher than the price of the average Comfort e-bike.
Iconic EVO 1 750 27.5” Diamond components
Fork
The Iconic EVO 1 750 27.5” Diamond comes factory-installed with the Suntour XCM fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The Iconic EVO 1 750 27.5” Diamond 2022 e-bike is equipped with aluminum wheels when leaving the factory. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Iconic EVO 1 750 27.5” Diamond comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the Iconic EVO 1 750 27.5” Diamond. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
