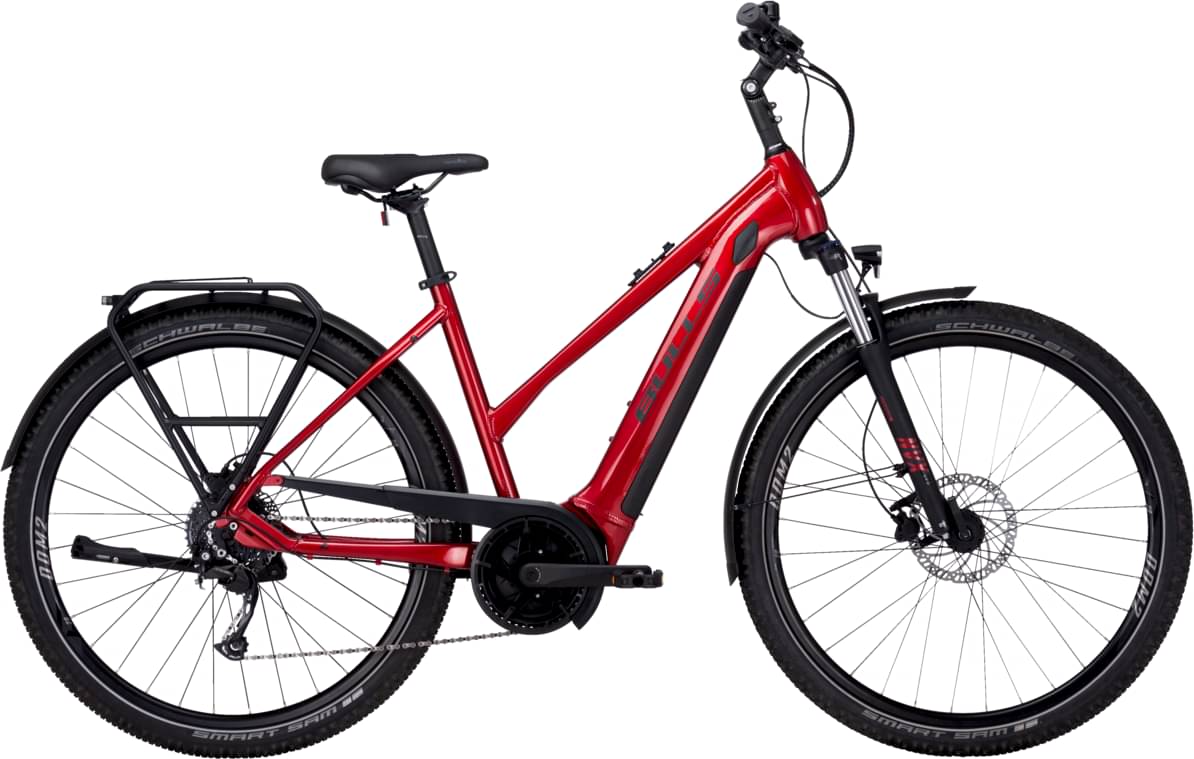

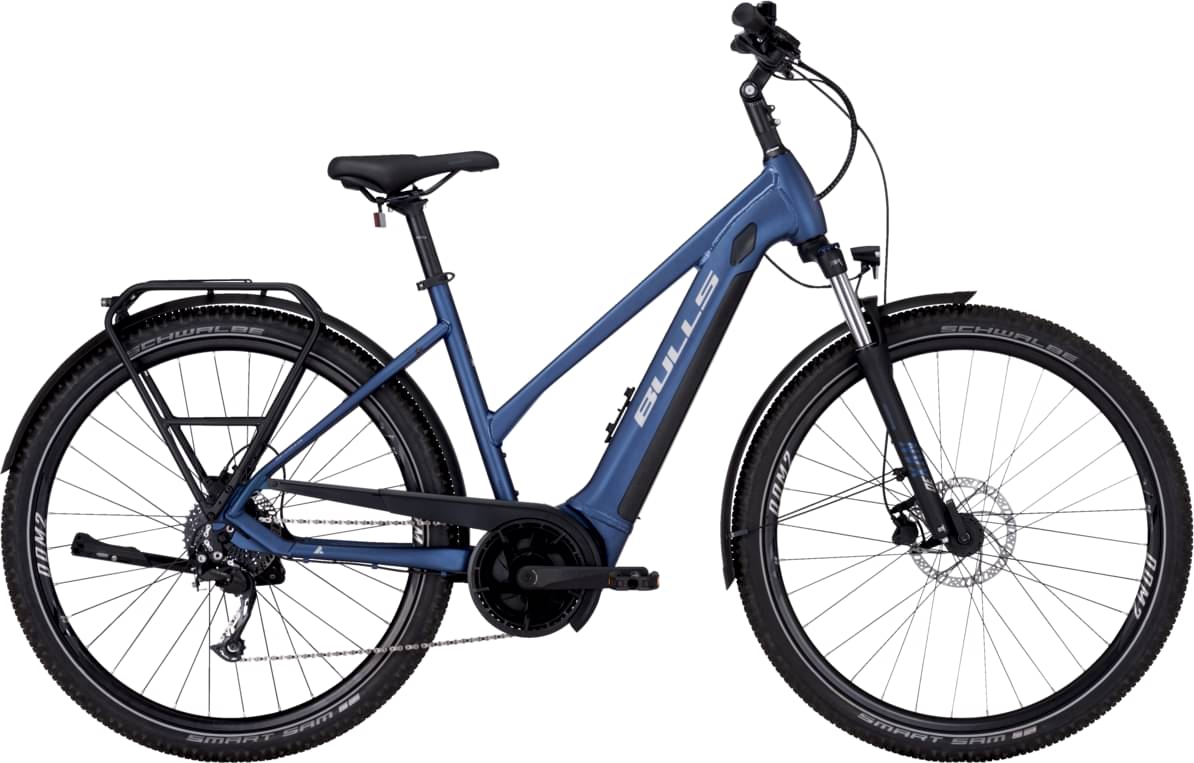

BULLS Landscape EVO Trapeze 2023
2023 E-bike
Estimate price |
3,784$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour NVX
-
Groupset Alivio, FSA -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch PowerTube Horizontal 500 -
Drivetrain 1 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy
Suspension Fork
Suntour NVX 30 NLO DS QR 700C STEEL TAPERED
Drivetrain
Rear Derailleur
SHIMANO Alivio RD-M3100-SGS Shadow
Shift Levers
SHIMANO Alivio SL-M3100
Cassette
SHIMANO Altus CS-HG200-9 11-36T
Crank
FSA 170mm
Chain
KMC E9S
Pedals
wellgo C-098DU black body
Wheels
Front Hub
FORMULA DC-20QR
Rear Hub
FORMULA DC-22QR
Rims
STYX DDM-2
Tires
SCHWALBE Smart Sam Performance
Brakes
Brakes
hydraulic disc brake
Brake Levers
TEKTRO MD-M280
Cockpit
Stem
Aluminium, verstellbar
Handlebar
STYX
Headset
FSA no.57 B-1
Seat
Saddle
Comodoro Comfort Women
Seatpost
STYX, 10mm Offset
Motor & Battery
Motor
Bosch Performance Line 25/65Nm
Battery
Bosch PowerTube Horizontal 500
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm |
|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.68 mm | 1.69 mm |
| Front Center | 679 mm | 689 mm | 706 mm |
| Rake | 40 mm | 40 mm | 41 mm |
| Trail | 98 mm | 98 mm | 97 mm |
| Stack | 668 mm | 668 mm | 686 mm |
| Reach | 388 mm | 398 mm | 407 mm |
| Top Tube Length | 599 mm | 609 mm | 624 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 140 mm | 140 mm | 160 mm |
| Chainstay Length | 489 mm | 489 mm | 489 mm |
| Wheelbase | 1161 mm | 1171 mm | 1188 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" |
About this model
Landscape EVO Trapeze belongs to the Bulls E Landscape model. 9 e-bikes variations carry this model name so far. Take a sneak peek at all Bulls E Landscape e-bikes models from 2023, by clicking here.
Model range prices
Bulls Landscape EVO 2023 is the cheapest e-bike model and costs 3503$. Bulls Landscape EVO Trapeze 2023 is the most expensive one and costs 3503$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 3503$. In conclusion, this e-bike price is 41.25% higher than the price of the average Hybrid e-bike.
Landscape EVO Trapeze components
Fork
The Suntour NVX is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
When it comes to the fork, this e-bike has a steel one, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Wheels
The wheels on Landscape EVO Trapeze are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Bulls Landscape EVO Trapeze has Mechanical Disc brakes installed. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
