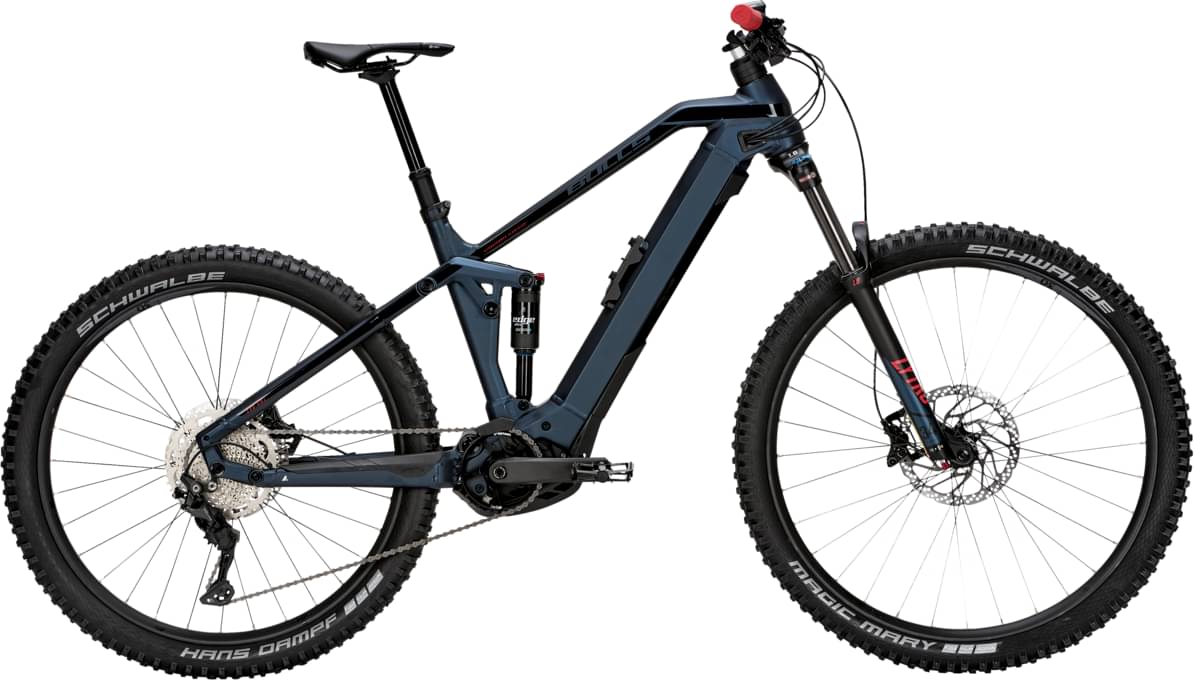

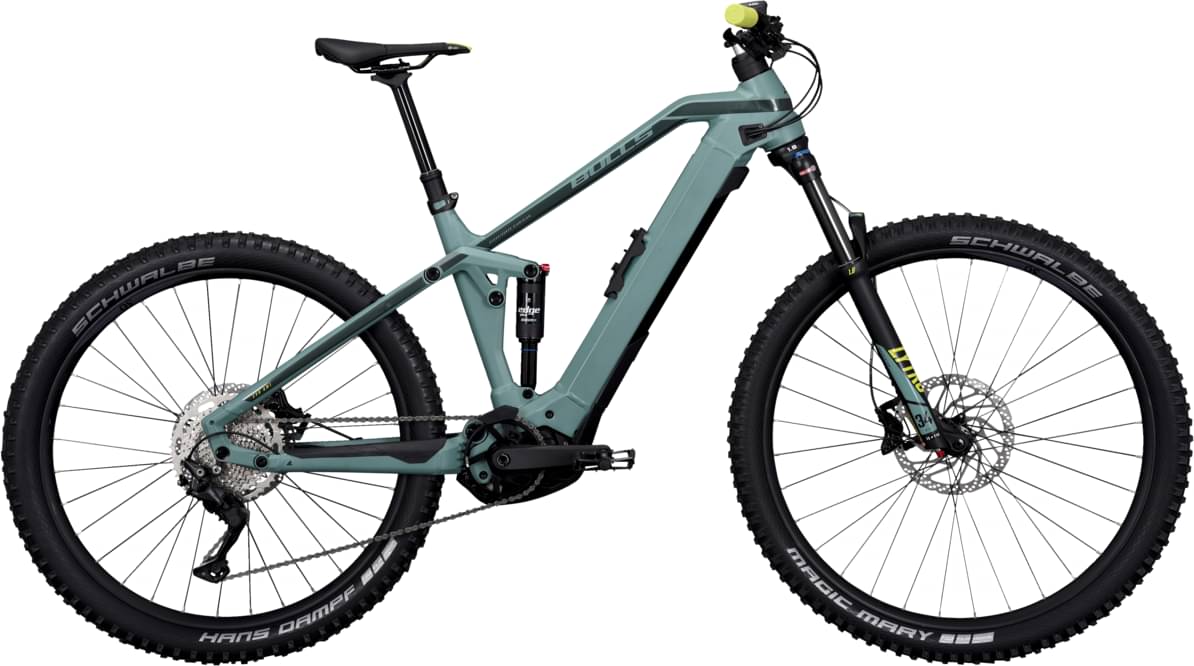

BULLS Sonic EVO AM 1 2023
2023 E-bike
Estimate price |
5,275$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork BULLS Lytro
-
Groupset Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube Vertikal 500 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy
Suspension Fork
BULLS Lytro 34 LOR 1.8 tapered
Rear Shock
SR SUNTOUR Edge Plus R
Drivetrain
Rear Derailleur
SHIMANO Deore RD-M5120
Cassette
SHIMANO Deore CS-M4100-10 11-46T
Crank
SAMOX
Pedals
ZECURE MTB
Wheels
Front Hub
SHIMANO HB-MT400
Rear Hub
SHIMANO FH-MT400
Rims
RODI Tryp30, Hohlkammer
Tires
SCHWALBE Magic Mary Performance Soft Grip / Hans Dampf Performance Speed Grip
Brakes
Brakes
hydraulic disc brake
Cockpit
Stem
BULLS MTB 35mm, internal cable routing
Handlebar
BULLS riserbar
Headset
ACROS no.1 1.8 tapered
Seat
Saddle
prologo Proxim 400 wide
Seatpost
LIMOTEC Alpha 1
Motor & Battery
Motor
Bosch Performance Line CX 25/85 Nm
Battery
Bosch PowerTube Vertikal 500
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 40cm | 44cm | 48cm | 51cm | 53cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.506 mm | 1.44 mm | 1.396 mm | 1.327 mm | 1.284 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 740 mm | 755 mm | 779 mm | 812 mm | 850 mm |
| Rake | 49 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 105 mm | 102 mm | 102 mm | 102 mm | 102 mm |
| Stack | 625 mm | 619 mm | 628 mm | 637 mm | 655 mm |
| Reach | 415 mm | 430 mm | 450 mm | 480 mm | 510 mm |
| Top Tube Length | 592 mm | 610 mm | 630 mm | 663 mm | 698 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm | 160 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1189 mm | 1204 mm | 1228 mm | 1262 mm | 1300 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm | 17 mm | 17 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
Model Overview
Sonic EVO AM 1 is part of the Bulls E Sonic model. Bulls released 102 e-bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Bulls Sonic EVO 1 27.5″ 2023 has a starting price of 4246$. Bulls Sonic EVO AM Team Carbon 29/27.5 2023 on the other hand is the most expensive at 11679$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4883$. Doing a quick comparison, we notice that Sonic EVO AM 1 price is 45.11% higher than the average cost of a Trail e-bike.
Overview of components
Fork
The BULLS Lytro is included from the factory. It has a travel distance of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this e-bike has the SR SUNTOUR Edge Plus R model, with a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on Sonic EVO AM 1 are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Sonic EVO AM 1 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Dropper post
A dropper post is included with the Sonic EVO AM 1. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
