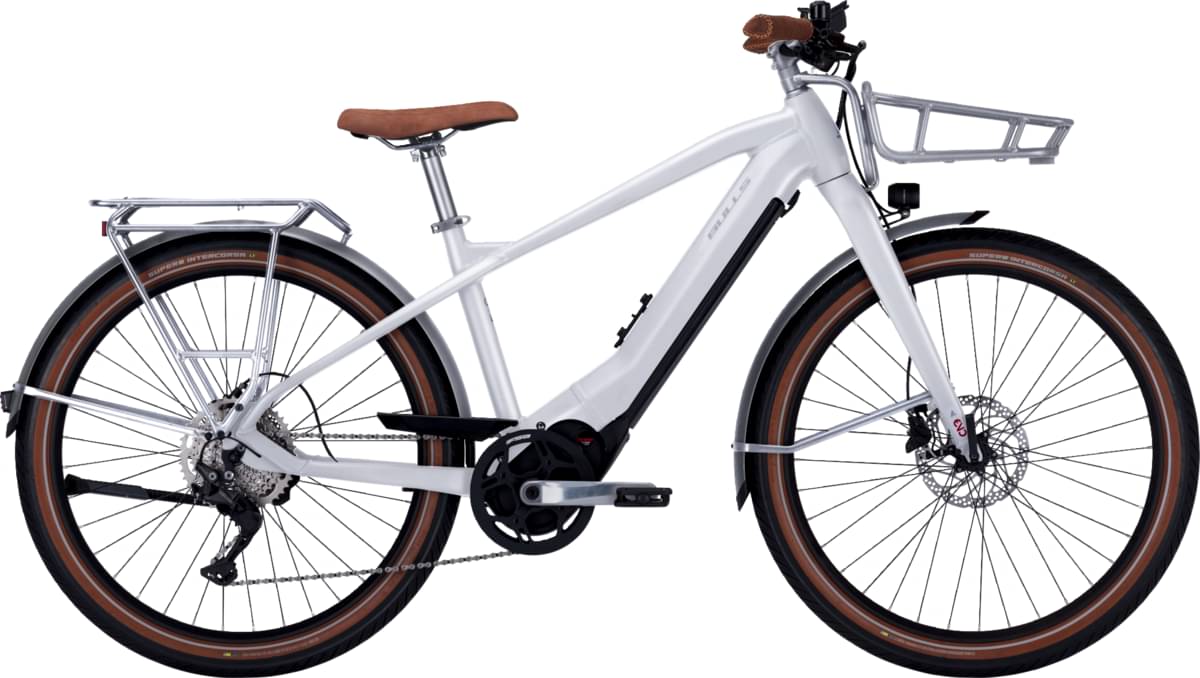

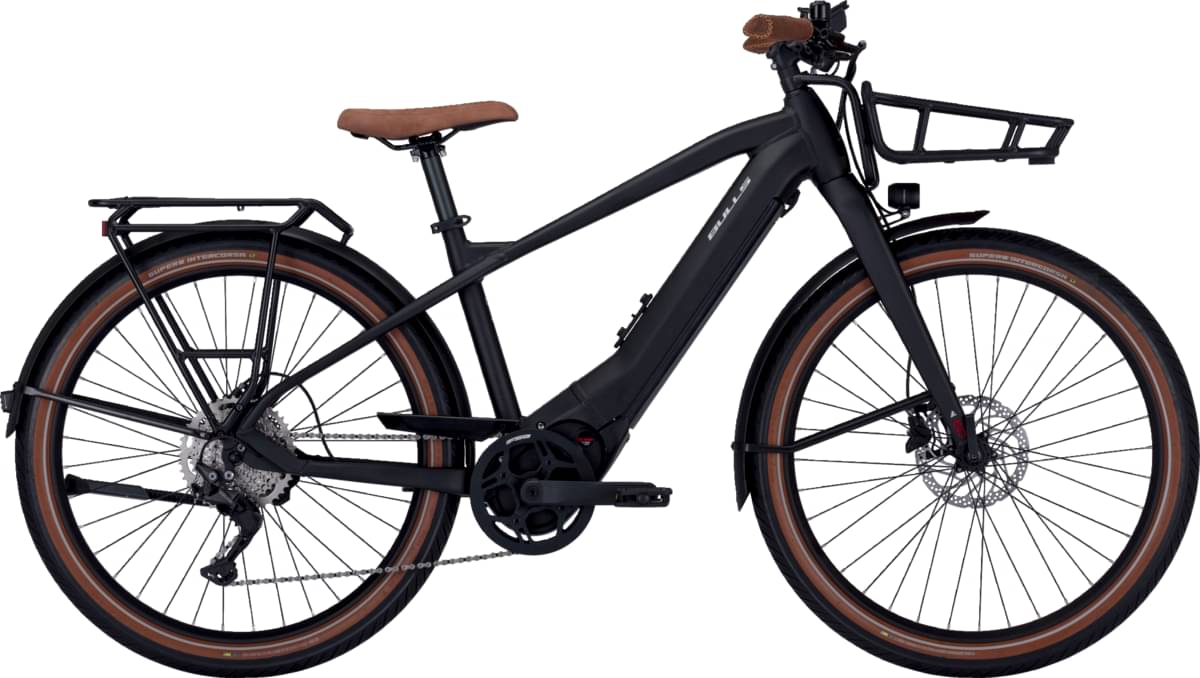

BULLS Sturmvogel 10 Diamond 2022
2022 E-bike
Estimate price |
5,045$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Deore, FSA -
Suspension Rigid -
Motor Brose 90Nm mid-drive -
Battery FIT Supercore 750 horizontal -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy
Suspension Fork
Aluminium Starrgabel
Drivetrain
Rear Derailleur
SHIMANO Deore RD-M5120-SGS Shadow Plus
Shift Levers
SHIMANO Deore SL-M4100-R
Cassette
SHIMANO Deore CS-M4100-10 11-46T
Crank
FSA 170mm
Chain
KMC E10S
Pedals
wellgo C-211 mit Sandpapier
Wheels
Front Hub
FORMULA CL-25QR
Rear Hub
FORMULA CL-26QR
Rims
RYDE Disc 30
Tires
SUPERO Intercorsa puncture proof
Brakes
Brakes
hydraulic disc brake
Brake Levers
SHIMANO BL-MT201
Cockpit
Stem
MTB-S, CCS Slot Mount ready
Handlebar
Aluminium
Headset
FSA No.57SC
Seat
Saddle
Urban Comfort Pure Leather
Seatpost
Aluminium
Motor & Battery
Motor
BROSE FIT S-Mag PRO 25/90Nm
Battery
FIT Supercore 750 horizontal
Remote
FIT Remote Basic
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 41cm | 44cm | 48cm | 54cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.48 mm | 1.39 mm | 1.38 mm |
| Front Center | 676 mm | 697 mm | 722 mm | 748 mm |
| Rake | 45 mm | 45 mm | 45 mm | 44 mm |
| Trail | 85 mm | 85 mm | 85 mm | 86 mm |
| Stack | 592 mm | 611 mm | 611 mm | 630 mm |
| Reach | 400 mm | 414 mm | 439 mm | 458 mm |
| Top Tube Length | 583 mm | 603 mm | 628 mm | 653 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 410 mm | 440 mm | 480 mm | 540 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 120 mm | 140 mm | 140 mm | 160 mm |
| Chainstay Length | 458 mm | 458 mm | 458 mm | 458 mm |
| Wheelbase | 1127 mm | 1149 mm | 1174 mm | 1200 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
Model Overview
Sturmvogel 10 Diamond is a Bulls E Sturmvogel model. 20 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
BULLS Sturmvogel EVO 5F Belt 2022 is the cheapest e-bike model and costs 4658$. BULLS Sturmvogel 10 Wave 2022 is the most expensive one and costs 4658$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Comfort e-bikes average price
If you want an acceptable Comfort e-bike you should know that the average price is 1957$. However, you could also get a good Comfort e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2022 and its price was 4658$. Doing a quick comparison, we notice that Sturmvogel 10 Diamond price is 138.02% more expensive than the average cost of a Comfort e-bike.
Overview of components
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The wheels on Sturmvogel 10 Diamond are the aluminum type. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
When you want to stop the bike in time, the brakes are vital. The Sturmvogel 10 Diamond has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
