Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Fork RockShox Recon Silver RL
-
Groupset NX -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061 29”, 148 Boost Thru Axle, Post-mount disc, 44/56 tapered headtube
Suspension Fork
RockShox FS-RECON SILVER-RL, 42 offset, 140mm travel, 15x110mm Boost Thru-axle
Drivetrain
Rear Derailleur
SRAM NX 11 Speed, Long cage
Shift Levers
SRAM NX 11 Speed
Cassette
Sunrace 11 speed 11-42T
Crank
Calibre 170mm crank, 32T Narrow-wide chainring, 104 BCD
Bottom Bracket
External 73mm BSA BB
Chain
KMC X-11
Pedals
Flat pedals
Wheels
Front Hub
Formula DC711, 32h, 6 bolt disc hub, 15x110mm TA
Rear Hub
Formula DCL348S, 32h, 6 bolt disc hub, 12x148mm TA
Rims
29”, 35mm wide, 32h, alu double wall, tubeless ready
Tires
Maxxis Rekon 29” x 2.6”
Brakes
Brakes
SRAM Guide T
Cockpit
Stem
Calibre Trail, 31.8mm clamp, 45mm extension
Handlebar
Calibre Trail, Alloy 780mm wide, 20mm upsweep, 6°backsweep, 31.8mm clamp
Grips
Calibre Trail, Single lock-on, soft compound, integrated bar end
Headset
Tapered, Semi-integrated, ZS44 / ZS56
Seat
Saddle
Calibre Trail, steel rails
Seatpost
KS Rage-i Dropper post, 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

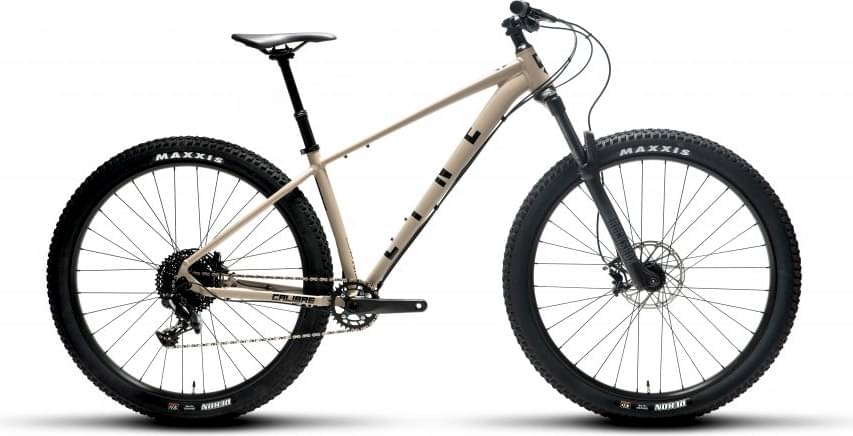

Line T3-29 is part of the Calibre Line model. Calibre released 12 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Line T3-29 components
Fork
The RockShox Recon Silver RL is included from the factory. It has a travel distance of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, Calibre Line T3-29 2023, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Line T3-29 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Calibre Line T3-29 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Line T3-29. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
