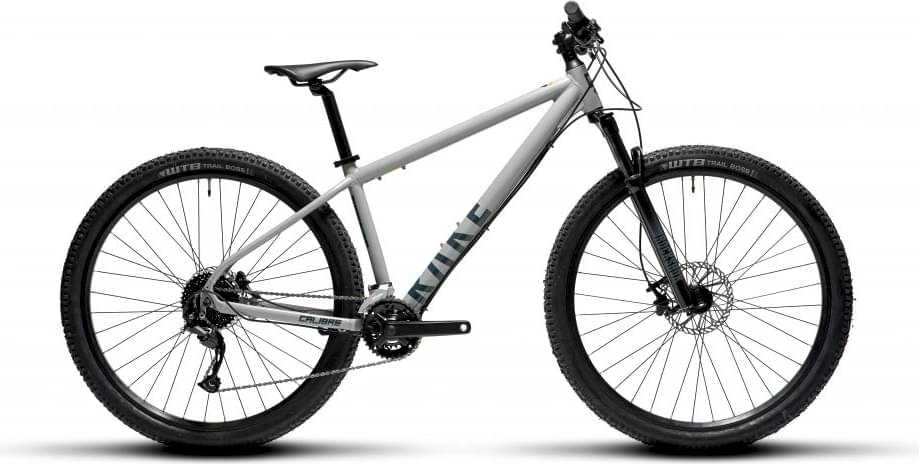

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Travel Rear 44mm -
Fork RockShox
-
Groupset Alivio, Shimano -
Suspension Full -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061 29", 135 QR, Post-mount disc, 44mm headtube
Suspension Fork
RockShox FS-Jusy TK 29 QR, Rebound adjust, 100mm travel
Drivetrain
Rear Derailleur
Shimano Alivio 9 speed direct mount
Front Derailleur
Shimano Dual pull 34.9 - 31.8 / 36-14T
Shift Levers
Shimano Alivio 9 speed for 2x9
Cassette
Shimano 9 speed Acera 11-36t
Crank
Calibre 175mm 22x36T
Bottom Bracket
Square taper 73mm
Chain
KMC X9
Pedals
Flat Pedals
Wheels
Front Hub
Alu, black, 36h, 6 bolt disc, 100mm QR
Rear Hub
Alu, black, 36h, 6 bolt disc, 135 QR
Rims
29”, 25mm wide, 32h, alu double wall
Tires
WTB Trail Boss Comp 29” x 2.25”
Brakes
Brakes
Front: Clarks M2 Hydraulic disc, Rear: Clarks M2 Hydraulic disc
Cockpit
Stem
Calibre Trail, 31.8mm clamp, 45mm extension
Handlebar
Calibre Trail, 780mm wide
Grips
Calibre Trail, Single lock-on, soft compound, integrated bar end
Headset
Semi-integrated, ZS44
Seat
Saddle
Calibre Trail
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Rake 29 completes the Calibre Rake model. Calibre launched 5 bikes of this model so far. Take a sneak peek at all Calibre Rake bikes models from 2022, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Rake 29 components
Fork
The fork installed on this bike is the RockShox model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the Rake 29 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Calibre Rake 29 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Calibre Rake 29 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
