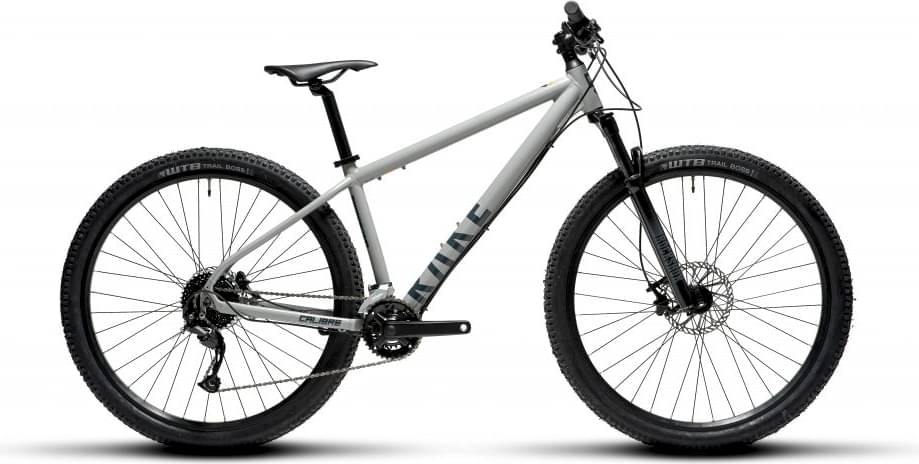

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Travel Rear 44mm -
Fork RockShox
-
Groupset Alivio, Shimano -
Suspension Full -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061 29", 135 QR, Post-mount disc, 44mm headtube
Suspension Fork
RockShox FS-Jusy TK 29 QR, Rebound adjust, 100mm travel
Drivetrain
Rear Derailleur
Shimano Alivio 9 speed direct mount
Front Derailleur
Shimano Dual pull 34.9 - 31.8 / 36-14T
Shift Levers
Shimano Alivio 9 speed for 2x9
Cassette
Shimano 9 speed Acera 11-36t
Crank
Calibre 175mm 22x36T
Bottom Bracket
Square taper 73mm
Chain
KMC X9
Pedals
Flat Pedals
Wheels
Front Hub
Alu, black, 36h, 6 bolt disc, 100mm QR
Rear Hub
Alu, black, 36h, 6 bolt disc, 135 QR
Rims
29”, 25mm wide, 32h, alu double wall
Tires
WTB Trail Boss Comp 29” x 2.25”
Brakes
Brakes
Front: Clarks M2 Hydraulic disc, Rear: Clarks M2 Hydraulic disc
Cockpit
Stem
Calibre Trail, 31.8mm clamp, 45mm extension
Handlebar
Calibre Trail, 780mm wide
Grips
Calibre Trail, Single lock-on, soft compound, integrated bar end
Headset
Semi-integrated, ZS44
Seat
Saddle
Calibre Trail
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Rake 29 is part of the Calibre Rake model. Calibre launched 5 bikes of this model so far. You can easily view all of the Calibre Rake bikes models from 2023, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Rake 29 components
Fork
Calibre Rake 29 2023 bike is equipped with the RockShox fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the Rake 29 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Rake 29 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
