Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105, Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
48cm
160cm - 170cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
177cm - 185cm
58cm
182cm - 193cm
60cm
188cm - 198cm
62cm
195cm - 205cm
48cm
160cm - 170cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
177cm - 185cm
58cm
182cm - 193cm
60cm
188cm - 198cm
62cm
195cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C1 Premium Alloy, 12x142 Speed Release thru-axle, flat-mount disc, integrated cable routing w/ Switchplate, SAVE, BB30a, Di2 ready
Suspension Fork
BallisTec Carbon, SAVE, 1-1/8" to 1-1/4" steerer, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 55mm offset (47-54cm) 45mm offset (56-62cm)
Drivetrain
Rear Derailleur
Shimano 105 GS
Front Derailleur
Shimano 105, braze-on
Shift Levers
Shimano Ultegra, 11-speed
Cassette
Shimano 105, 11-30, 11-speed
Crank
Cannondale 1, BB30a, FSA rings, 52/36
Bottom Bracket
Cannondale BB30
Chain
Shimano HG601, 11-speed
Pedals
Not included
Wheels
Front Hub
Formula CL-712, 12x100 centerlock
Rear Hub
Formula RXC-400, 12x142 centerlock
Rims
Cannondale RD 2.0 Disc, double wall w/ eyelet, 28h
Spokes
Stainless Steel, 14g
Tires
Vittoria Zaffiro Pro Slick, 700 x 25c
Brakes
Brakes
Shimano 105 hydraulic disc, 160/160mm RT64 rotors
Brake Levers
Shimano 105 hydraulic disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 3, 6061 alloy, Compact
Grips
Cannondale Bar Tape, 3.5mm
Headset
CAAD13, integrated, 1-1/8" - 1-1/4
Seat
Saddle
Prologo Nago RS STN
Seatpost
HollowGram 27 KNØT, Alloy, 2 bolt clamp, 330mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 60cm | 62cm | 48cm | 51cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.43 mm | 1.46 mm | 1.49 mm | 1.52 mm | 1.55 mm | 1.58 mm | 1.4 mm | 1.43 mm | 1.46 mm | 1.49 mm | 1.52 mm | 1.55 mm | 1.58 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 271 mm | 271 mm | 273 mm | 273 mm | 273 mm | 268 mm | 268 mm | 271 mm | 271 mm | 273 mm | 273 mm | 273 mm |
| Front Center | 589 mm | 598 mm | 611 mm | 594 mm | 607 mm | 618 mm | 630 mm | 589 mm | 598 mm | 611 mm | 594 mm | 607 mm | 618 mm | 630 mm |
| Rake | 55 mm | 55 mm | 55 mm | 45 mm | 45 mm | 45 mm | 45 mm | 55 mm | 55 mm | 55 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 56 mm | 56 mm | 56 mm | 55 mm | 56 mm | 56 mm | 56 mm | 56 mm | 56 mm | 56 mm | 55 mm | 56 mm | 56 mm | 56 mm |
| Stack | 511 mm | 526 mm | 546 mm | 566 mm | 586 mm | 606 mm | 626 mm | 511 mm | 526 mm | 546 mm | 566 mm | 586 mm | 606 mm | 626 mm |
| Reach | 365 mm | 369 mm | 375 mm | 380 mm | 386 mm | 391 mm | 397 mm | 365 mm | 369 mm | 375 mm | 380 mm | 386 mm | 391 mm | 397 mm |
| Top Tube Length | 511 mm | 521 mm | 537 mm | 553 mm | 569 mm | 585 mm | 602 mm | 511 mm | 521 mm | 537 mm | 553 mm | 569 mm | 585 mm | 602 mm |
| Seat Tube Angle | 74.3 ° | 74.1 ° | 73.7 ° | 73.3 ° | 72.9 ° | 72.5 ° | 72.1 ° | 74.3 ° | 74.1 ° | 73.7 ° | 73.3 ° | 72.9 ° | 72.5 ° | 72.1 ° |
| Seat Tube Length | 442 mm | 481 mm | 519 mm | 540 mm | 562 mm | 583 mm | 604 mm | 442 mm | 481 mm | 519 mm | 540 mm | 562 mm | 583 mm | 604 mm |
| Head Tube Angle | 71.2 ° | 71.2 ° | 71.2 ° | 73 ° | 73 ° | 73 ° | 73 ° | 71.2 ° | 71.2 ° | 71.2 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 114 mm | 130 mm | 154 mm | 164 mm | 188 mm | 209 mm | 230 mm | 114 mm | 130 mm | 154 mm | 164 mm | 188 mm | 209 mm | 230 mm |
| Chainstay Length | 399 mm | 399 mm | 399 mm | 399 mm | 399 mm | 399 mm | 399 mm | 399 mm | 399 mm | 399 mm | 399 mm | 399 mm | 399 mm | 399 mm |
| Wheelbase | 976 mm | 985 mm | 999 mm | 983 mm | 996 mm | 1007 mm | 1019 mm | 976 mm | 985 mm | 999 mm | 983 mm | 996 mm | 1007 mm | 1019 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 69 mm | 69 mm | 69 mm | 74 mm | 74 mm | 72 mm | 72 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 714 mm | 744 mm | 781 mm | 796 mm | 820 mm | 839 mm | 859 mm | 714 mm | 744 mm | 781 mm | 796 mm | 820 mm | 839 mm | 859 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 165 cm | 170 cm | 177 cm | 182 cm | 188 cm | 195 cm | 160 cm | 165 cm | 170 cm | 177 cm | 182 cm | 188 cm | 195 cm |
| Rider Max Height | 170 cm | 175 cm | 180 cm | 185 cm | 193 cm | 198 cm | 205 cm | 170 cm | 175 cm | 180 cm | 185 cm | 193 cm | 198 cm | 205 cm |
About this model

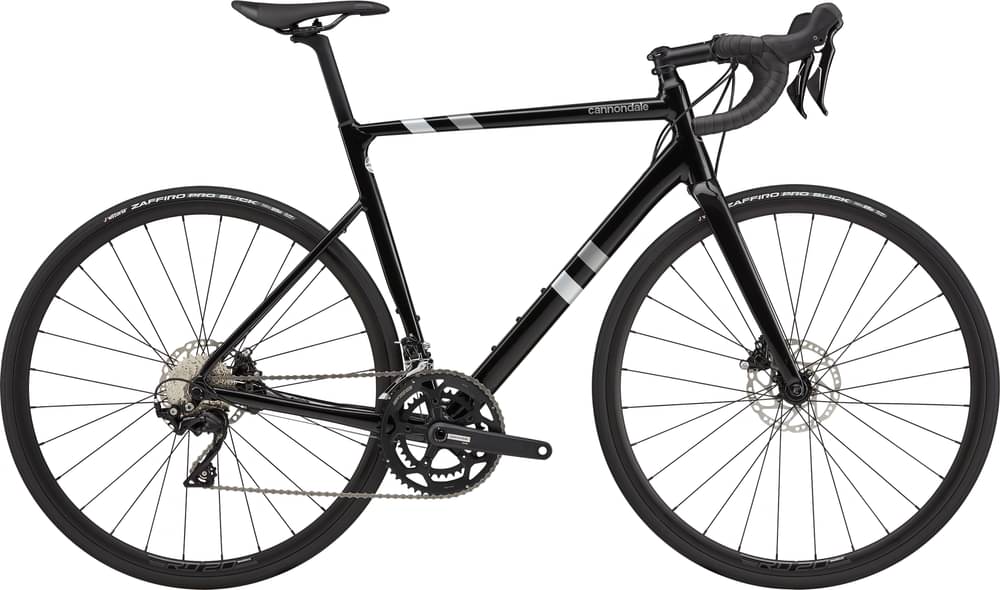

CAAD13 Disc 105 is a Cannondale Caad13 model. Cannondale released 45 bikes variations of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
The most economical model, the Cannondale CAAD13 Women’s 105 2021 has a starting price of 1800$. Cannondale CAAD13 Disc Force eTap AXS 2021 on the other hand is the most expensive at 5750$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2021 for 2300$. Comparing this to the average Race bike price, we see that the price is 45.65% lower.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
CAAD13 Disc 105 components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the CAAD13 Disc 105 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The CAAD13 Disc 105 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 14 sizes available for this model. Rider height can be anywhere between 160 cm – 205 cm (5.25 ft – 6.73 ft). In conclusion, it won’t take much to find one that’s right for you.
