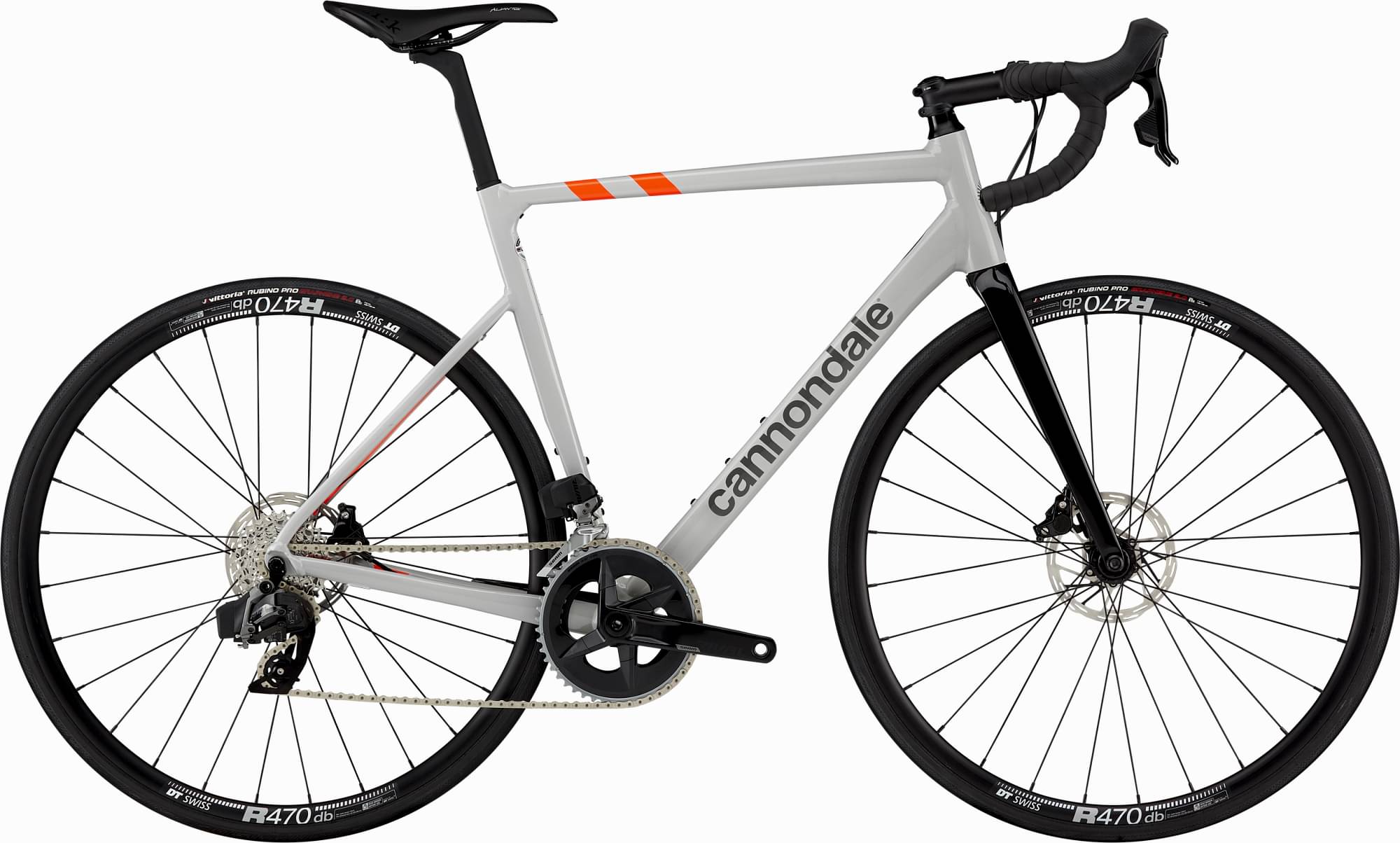

Cannondale CAAD13 Disc Rival AXS 2023
2023 Road
Estimate price |
3,325$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
48cm
160cm - 170cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
177cm - 185cm
58cm
182cm - 193cm
60cm
188cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C1 Premium Alloy, 12x142 Speed Release thru-axle, flat-mount disc, integrated cable routing w/ Switchplate, SAVE, BB30a, Di2 ready
Suspension Fork
CAAD13 Full Carbon, SAVE, 1-1/8" to 1-1/4" steerer, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 55mm offset (47-54cm) 45mm offset (56-62cm)
Drivetrain
Rear Derailleur
SRAM Rival eTap AXS
Front Derailleur
SRAM Rival eTap AXS, braze-on
Shift Levers
SRAM Rival eTap AXS HRD
Cassette
SRAM Rival XG-1250, 10-36, 12-speed
Crank
SRAM Rival DUB X-Range, 48/35
Bottom Bracket
SRAM DUB BB30A Road 73mm
Chain
SRAM Rival, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-400, 12x142mm centerlock
Rear Hub
(F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-400, 12x142mm centerlock
Rims
DT Swiss R470 db, 28h
Spokes
Stainless Steel, 14g
Tires
Vittoria Rubino Pro Bright Black, 700x25c
Brakes
Brakes
SRAM Rival hydraulic disc, 160/160mm Paceline rotors
Brake Levers
SRAM Rival eTap AXS HRD
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 3, 6061 Alloy, Compact
Grips
Cannondale Bar Tape, 3.5mm
Headset
CAAD13, integrated, 1-1/8" - 1-1/4
Seat
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
HollowGram 27 SL KNØT, Carbon, 2 bolt clamp, 330mm, 0mm offset (44-48cm), 15mm offset (51-62cm)
Fit data

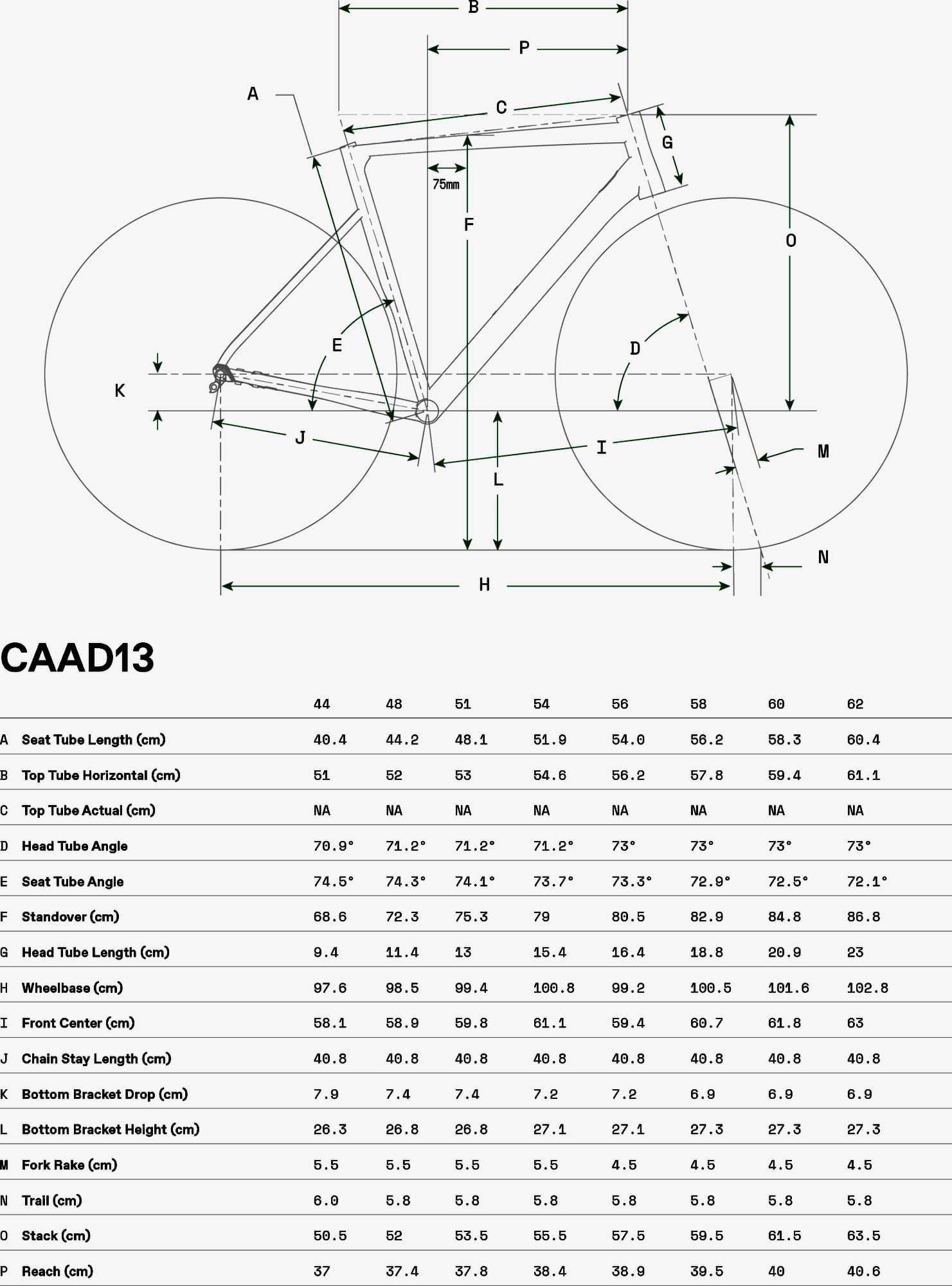

Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.43 mm | 1.46 mm | 1.49 mm | 1.52 mm | 1.55 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 271 mm | 271 mm | 273 mm | 273 mm |
| Front Center | 589 mm | 598 mm | 611 mm | 594 mm | 607 mm | 618 mm |
| Rake | 55 mm | 55 mm | 55 mm | 45 mm | 45 mm | 45 mm |
| Trail | 56 mm | 56 mm | 56 mm | 55 mm | 56 mm | 56 mm |
| Stack | 511 mm | 526 mm | 546 mm | 566 mm | 586 mm | 606 mm |
| Reach | 365 mm | 369 mm | 375 mm | 380 mm | 386 mm | 391 mm |
| Top Tube Length | 511 mm | 521 mm | 537 mm | 553 mm | 569 mm | 585 mm |
| Seat Tube Angle | 74.3 ° | 74.1 ° | 73.7 ° | 73.3 ° | 72.9 ° | 72.5 ° |
| Seat Tube Length | 442 mm | 481 mm | 519 mm | 540 mm | 562 mm | 583 mm |
| Head Tube Angle | 71.2 ° | 71.2 ° | 71.2 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 114 mm | 130 mm | 154 mm | 164 mm | 188 mm | 209 mm |
| Chainstay Length | 399 mm | 399 mm | 399 mm | 399 mm | 399 mm | 399 mm |
| Wheelbase | 976 mm | 985 mm | 999 mm | 983 mm | 996 mm | 1007 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 69 mm | 69 mm |
| Standover Height | 714 mm | 744 mm | 781 mm | 796 mm | 820 mm | 839 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 165 cm | 170 cm | 177 cm | 182 cm | 188 cm |
| Rider Max Height | 170 cm | 175 cm | 180 cm | 185 cm | 193 cm | 198 cm |
Model Overview
CAAD13 Disc Rival AXS completes the Cannondale Caad13 model. 45 bikes variations carry this model name so far. You can easily view all of the Cannondale Caad13 bikes models from 2023, here.
Model range prices
Cannondale CAAD13 105 2023 is the cheapest bike model and costs 1975$. Cannondale CAAD13 105 Di2 2023 is the most expensive one and costs 3700$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Race bikes
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 3325$. If we compare this with the average Race bike cost we notice that the price is 0.75% smaller.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
CAAD13 Disc Rival AXS components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the CAAD13 Disc Rival AXS model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cannondale CAAD13 Disc Rival AXS is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
CAAD13 Disc Rival AXS comes in 6 sizes, that range from 160 cm – 198 cm (5.25 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
