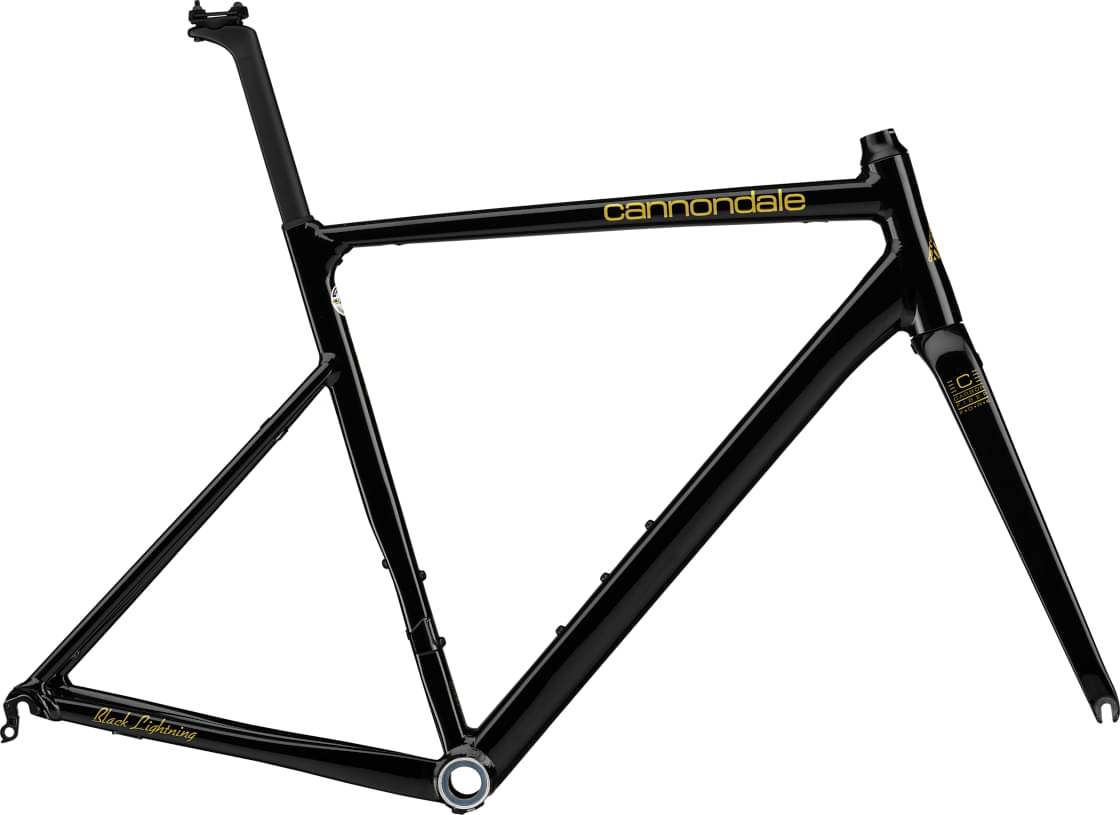

Cannondale CAAD13 Frameset Japan Anniversary Edition 2022
2022 Road
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
48cm
160cm - 170cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C1 Premium Alloy, direct mount rim brake, integrated cable routing w/ Switchplate, SAVE, BB30a, 130x9mm QR, Di2 Ready
Suspension Fork
CAAD13 Full Carbon, direct mount rim brake, SAVE, 1-1/8" to 1-1/4" steerer, integrated crown race, 100x9mm QR, 55mm offset (47-54cm) 45mm offset (56-62cm)
Drivetrain
Bottom Bracket
Cannondale BB30
Pedals
Not included
Cockpit
Headset
Integrated, 1-1/8" - 1-1/4"
Seat
Seatpost
HollowGram 27, Alloy, 2 bolt clamp, 330mm, 15mm offset
Fit data

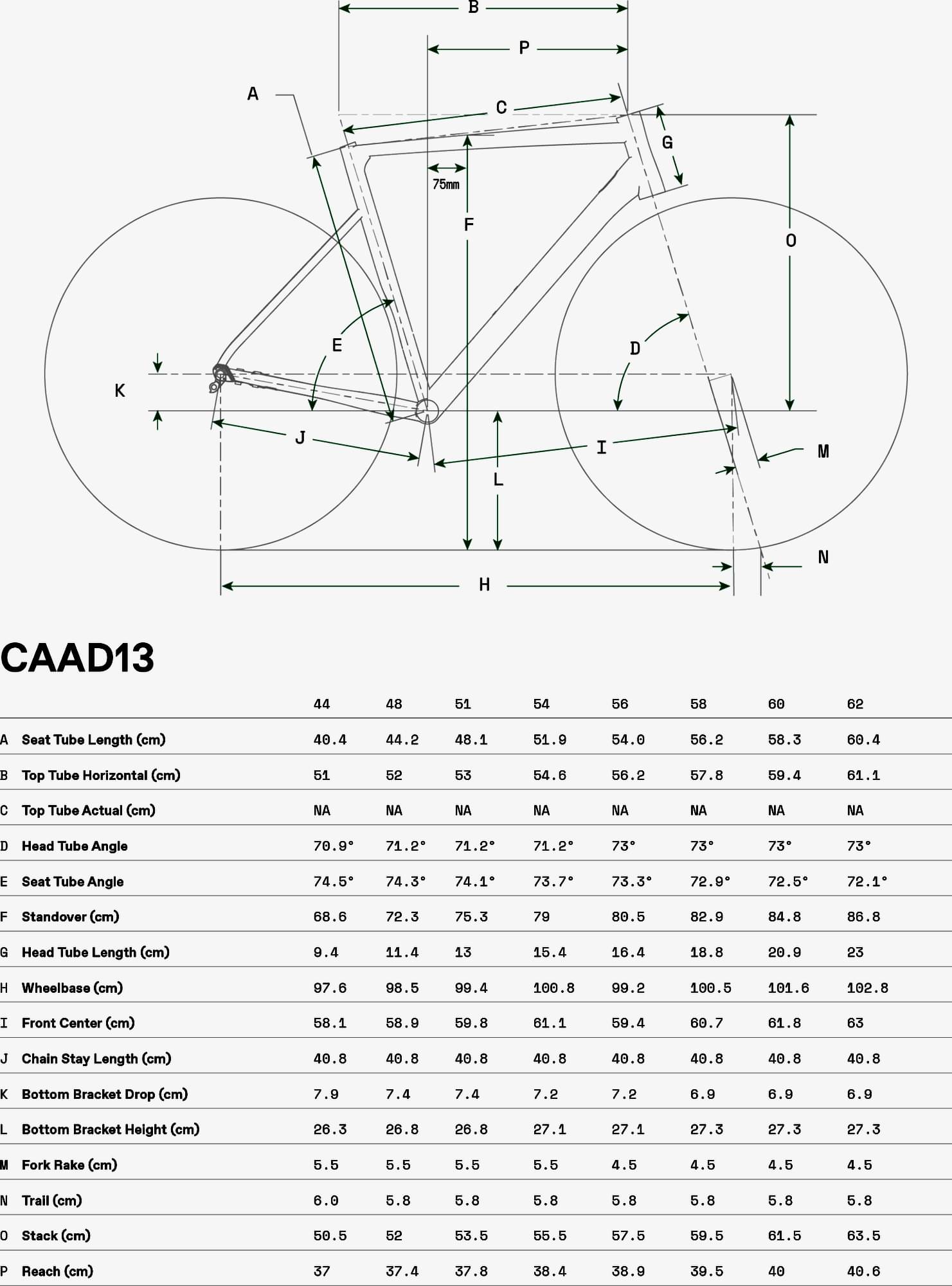

Geometry
Numbers for sizing and ride feel.
| Size | 48cm |
|---|---|
| Stack Reach Ratio | 1.4 mm |
| Bottom Bracket Height | 268 mm |
| Front Center | 589 mm |
| Rake | 55 mm |
| Trail | 56 mm |
| Stack | 511 mm |
| Reach | 365 mm |
| Top Tube Length | 511 mm |
| Seat Tube Angle | 74.3 ° |
| Seat Tube Length | 442 mm |
| Head Tube Angle | 71.2 ° |
| Head Tube Length | 114 mm |
| Chainstay Length | 399 mm |
| Wheelbase | 976 mm |
| Bottom Bracket Drop | 74 mm |
| Standover Height | 714 mm |
| Wheels | 700 |
| Rider Min Height | 160 cm |
| Rider Max Height | 170 cm |
Model Overview
CAAD13 Frameset Japan Anniversary Edition belongs to the Cannondale Caad13 model. There are 45 frames that carry this model name. Take a sneak peek at all Cannondale Caad13 frames models from 2022, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race frames average price
If you want an acceptable Race frame you should know that the average price is 2445$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork on this frame is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Sizes
This frame has one size only, so it might not fit you. In conclusion, make sure it fits you, or look for another model.
