Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, FSA -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
46cm
152cm - 162cm
51cm
160cm - 170cm
54cm
165cm - 175cm
56cm
172cm - 182cm
58cm
177cm - 188cm
61cm
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, BB30, flat mount disc
Suspension Fork
Full Carbon, 1-1/8" to 1-1/4" steerer, internal routing, 55mm OutFront offset, flat mount disc, 12x100 thru axle
Drivetrain
Rear Derailleur
Shimano Tiagra GS
Front Derailleur
Shimano Tiagra, 31.8 clamp
Shift Levers
Shimano Tiagra, 2x10
Cassette
Shimano HG500, 11-34, 10-speed
Crank
FSA Omega alloy, 46/36
Bottom Bracket
Cannondale BB30
Chain
KMC X10, 10-speed
Pedals
Wellgo w/ Clip and Strap
Wheels
Front Hub
Formula RX-512 12x100
Rear Hub
Formula DC-1422 QR
Rims
CX 2.0, 28h
Spokes
Stainless steel, 14g
Tires
Schwalbe CX Comp, 700 x 35c, K-Guard
Brakes
Brakes
Tektro cable actuated disc, 160/160mm
Brake Levers
Shimano Tiagra
Cockpit
Stem
Cannondale 4, 6061 alloy, 31.8, 7°
Handlebar
6061 alloy, Compact
Grips
Cannondale Grip Bar Tape w/Gel, 3.5mm
Headset
CAADX, 1-1/4" lower bearing, 25mm top cap
Seat
Saddle
Cannondale Stage Ergo
Seatpost
6061 alloy, 25.4 x 350mm (44-56), 400mm (58-61)
Fit data

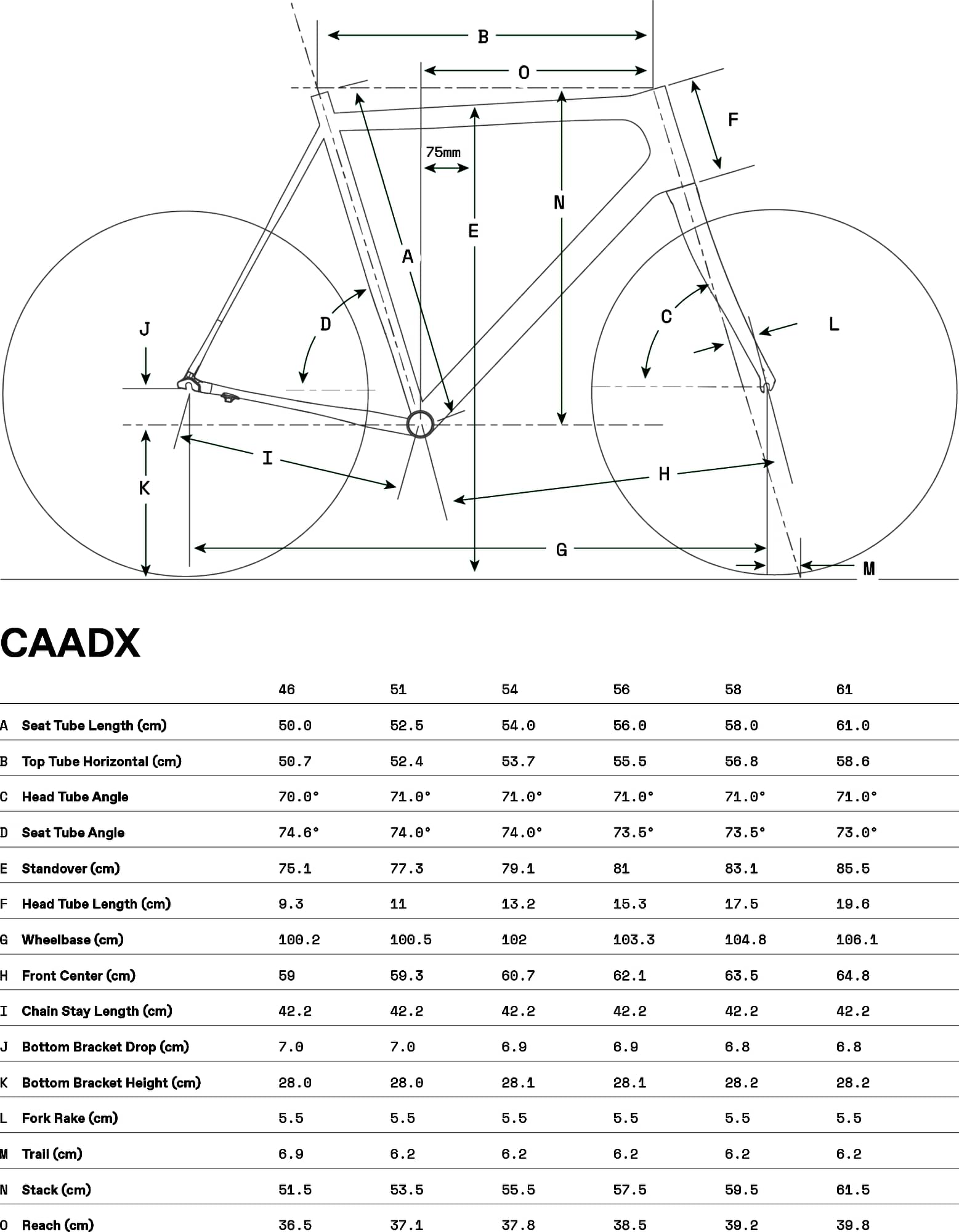

Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.44 mm | 1.47 mm | 1.5 mm | 1.52 mm | 1.55 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 281 mm | 281 mm | 282 mm | 282 mm |
| Front Center | 590 mm | 593 mm | 607 mm | 621 mm | 635 mm | 648 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 69 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Stack | 513 mm | 533 mm | 553 mm | 573 mm | 593 mm | 613 mm |
| Reach | 363 mm | 369 mm | 376 mm | 383 mm | 390 mm | 396 mm |
| Top Tube Length | 505 mm | 522 mm | 535 mm | 553 mm | 566 mm | 584 mm |
| Seat Tube Angle | 74.6 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 500 mm | 525 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 93 mm | 110 mm | 132 mm | 153 mm | 175 mm | 196 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1000 mm | 1003 mm | 1018 mm | 1031 mm | 1046 mm | 1059 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 69 mm | 69 mm | 68 mm | 68 mm |
| Standover Height | 749 mm | 771 mm | 789 mm | 808 mm | 829 mm | 853 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 160 cm | 165 cm | 172 cm | 177 cm | 182 cm |
| Rider Max Height | 162 cm | 170 cm | 175 cm | 182 cm | 188 cm | 193 cm |

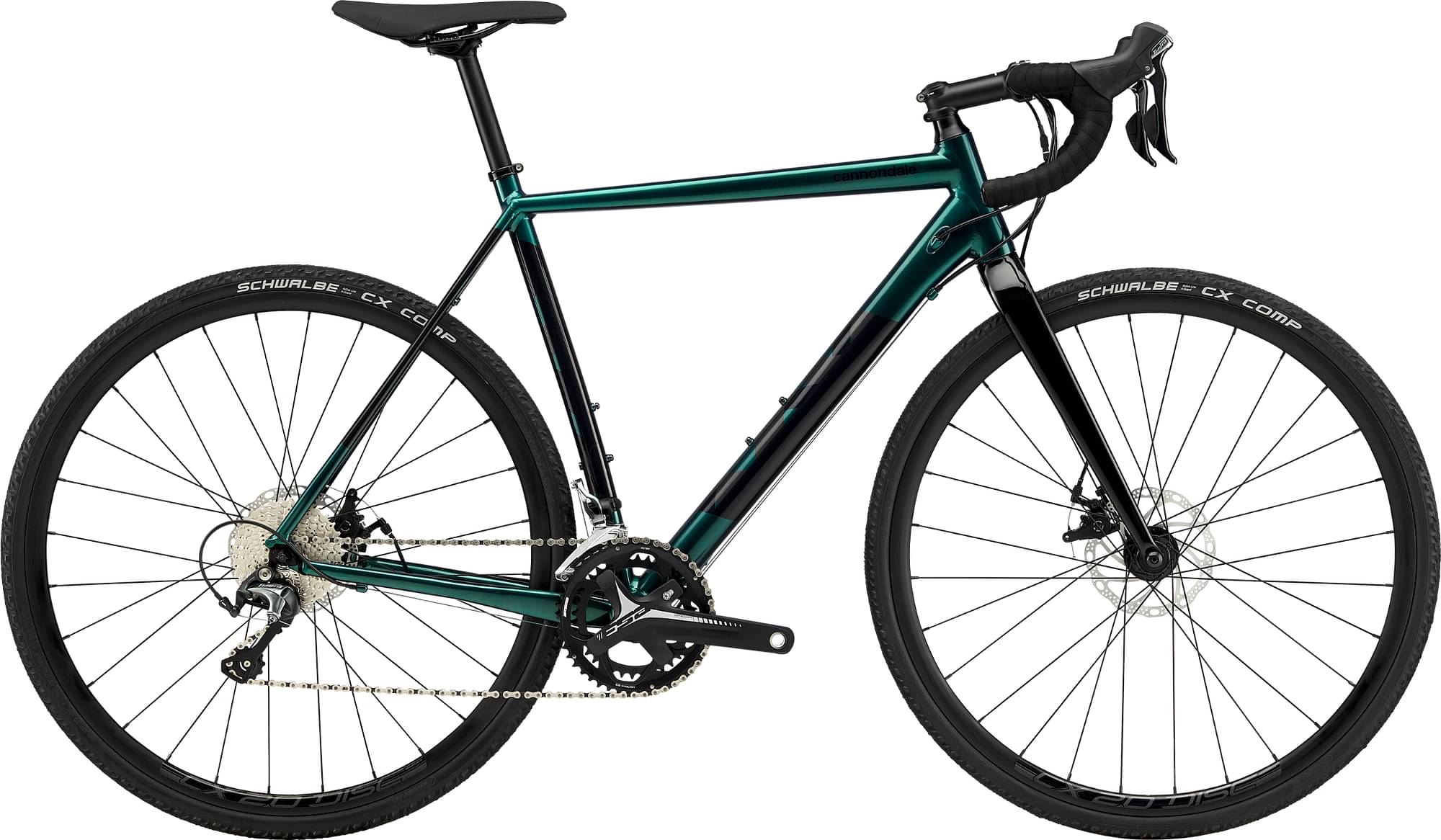

About this model
CAADX Tiagra is a Cannondale Caadx model. 26 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Cyclocross bikes average price
According to our math, the average price for a trustworthy Cyclocross bike is 2012$. However, even though the average price of a Cyclocross bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on CAADX Tiagra are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CAADX Tiagra comes with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Cannondale CAADX Tiagra bike has 6 sizes, in the range of 152 cm – 193 cm (4.99 ft – 6.33 ft). In conclusion, finding one for you shouldn’t be a problem.
