Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork Suntour XCR
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 164cm
MD
161cm - 172cm
LG
170cm - 184cm
XL
181cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, SAVE, Boost spacing, tapered 1-1/8" to 1.5" headtube, flat mount brake, StraightShot internal cable routing, BSA-73
Suspension Fork
Suntour XCR-34, 120mm, 110X15mm, tapered steerer, 51mm offset
Drivetrain
Rear Derailleur
Shimano Deore GS
Shift Levers
Shimano Deore, 10-speed
Cassette
Sunrace, 11-42, 10-speed
Crank
Prowheel, 30T
Bottom Bracket
Prowheel
Chain
KMC X10, 10-speed
Pedals
Cannondale Platform
Wheels
Front Hub
Formula 15x110
Rear Hub
Formula Boost QR w/ HG driver
Rims
WTB STX i35, 32h
Spokes
Stainless Steel, 14g
Tires
WTB Ranger Comp, 27.5 x 2.8", DNA Compound
Brakes
Brakes
Tektro hydro disc, 180/160mm rotors
Brake Levers
Tektro hydro disc
Cockpit
Stem
Cannondale 4, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 760mm
Grips
Cannondale Dual-Density
Headset
Semi Integrated, 1-1/8" to 1-1/2"
Seat
Saddle
Cannondale Stage 3
Seatpost
TranzX dropper, internal routing, 31.6, 100mm (S), 125mm (M-XL)
Fit data

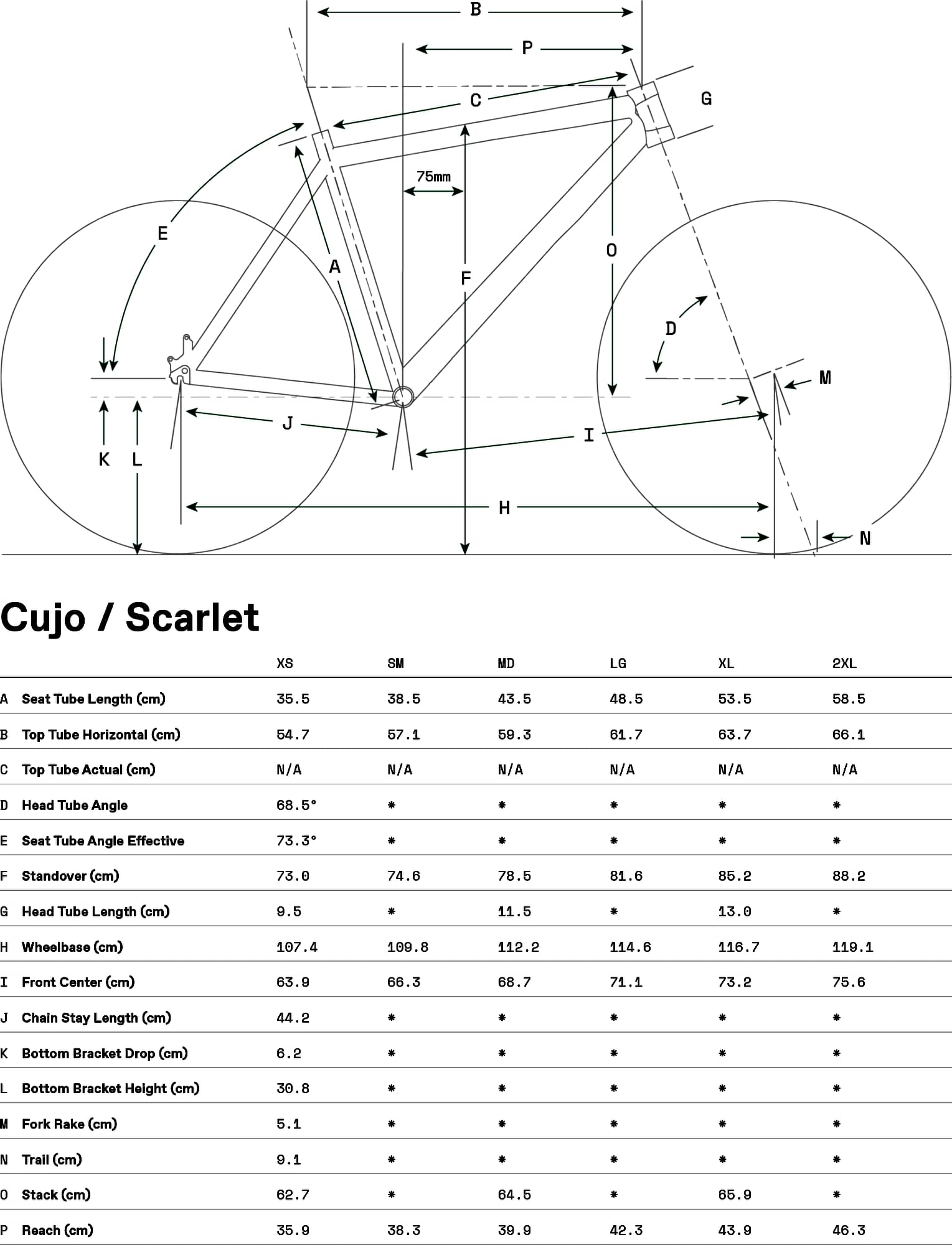

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.61 mm | 1.52 mm | 1.5 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 308 mm | 308 mm |
| Front Center | 663 mm | 687 mm | 711 mm | 732 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 91 mm | 91 mm | 91 mm | 91 mm |
| Stack | 629 mm | 647 mm | 647 mm | 661 mm |
| Reach | 385 mm | 401 mm | 425 mm | 441 mm |
| Top Tube Length | 573 mm | 595 mm | 619 mm | 639 mm |
| Seat Tube Angle | 73.3 ° | 73.3 ° | 73.3 ° | 73.3 ° |
| Seat Tube Length | 385 mm | 435 mm | 485 mm | 535 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 95 mm | 115 mm | 115 mm | 130 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1100 mm | 1124 mm | 1148 mm | 1169 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 748 mm | 787 mm | 818 mm | 854 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 161 cm | 170 cm | 181 cm |
| Rider Max Height | 164 cm | 172 cm | 184 cm | 190 cm |
About this model
Cujo 3 completes the Cannondale Cujo model. 28 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Cannondale Cujo 3 2023 is the most affordable bike of this model and has a price of 940$. On the other hand, Cannondale Cujo 1 2023, is the most expensive and costs 1374$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 940$. If we compare this with the average Trail bike cost we notice that the price is 193.83% smaller.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Cujo 3 components
Fork
The fork installed on this bike is the Suntour XCR model. The travel on this model is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the Cujo 3 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 154 cm – 190 cm (5.05 ft – 6.23 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
