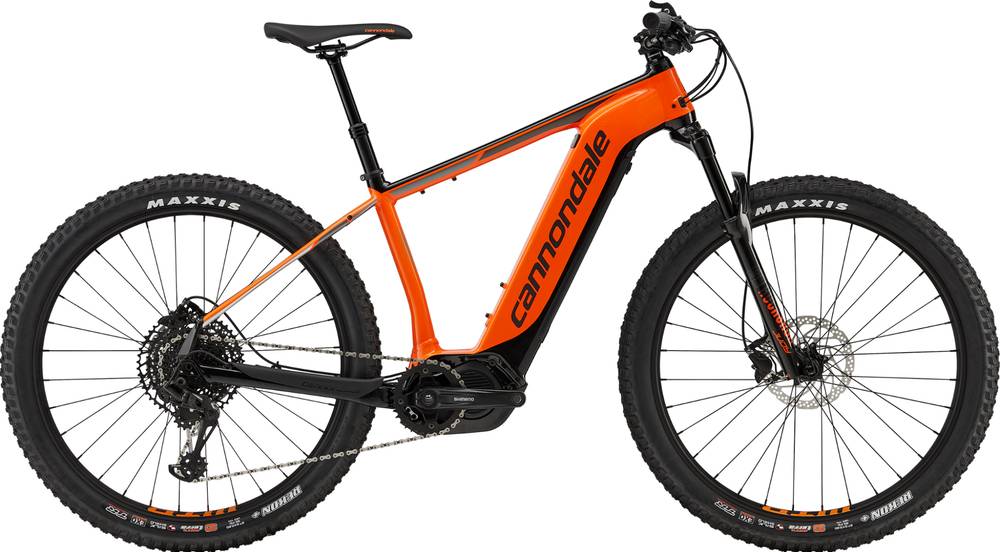

Cannondale Cujo Neo 1 2019
2019 E-bike
Estimate price |
3,900$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Judy
-
Groupset NX Eagle, Shimano -
Suspension Hardtail -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano STEPS BT-E8020, 504Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALL-NEW Cujo NEO, SmartForm C2 Alloy, integrated battery, SAVE, tapered headtube, 148x12mm thru-axle, alloy skid plate
Suspension Fork
RockShox Judy Gold, 120mm, Solo Air, 15X110, tapered steerer, 51mm offset
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM NX Eagle
Front Derailleur
None
Shift Levers
SRAM NX Eagle, 12-speed
Cassette
SRAM PG-1230, NX Eagle, 11-50, 12-speed
Crank
Shimano FC-E8000, 165mm, X-Sync, 34t
Chain
SRAM NX Eagle, 12-speed
Chain Guide
None
Pedals
Not Included
Wheels
Front Hub
Formula CL-811 15x110 front, Shimano SLX 12x148 rear
Rear Hub
Formula CL-811 15x110 front, Shimano SLX 12x148 rear
Rims
WTB ST i29 TCS 2.0, 32h, tubeless ready
Spokes
DT Swiss Champion
Tires
Maxxis Rekon 27.5 x 2.8", 3C Maxx Terra Silkshield, EXO, tubeless ready
Brakes
Brakes
Shimano MT400 hydro disc, 180/180mm RT30 rotors
Brake Levers
Shimano MT400 hydro disc
Cockpit
Stem
Cannondale C3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0°
Handlebar
Cannondale C3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Cannondale Locking Grips
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Cannondale Ergo XC
Seatpost
TranzX dropper, internal routing, 31.6, 100mm (S), 120mm (M), 125mm (L-XL)
Motor & Battery
Motor
Shimano STEPS DU-E8000 250W
Battery
Shimano STEPS BT-E8020, 504Wh
Remote
Shimano STEPS SC-E8000
Charger
Shimano STEPS EC-E6000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.5 mm | 1.44 mm | 1.4 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 667 mm | 690 mm | 714 mm | 736 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 86 mm | 86 mm | 86 mm | 86 mm |
| Stack | 627 mm | 635 mm | 643 mm | 651 mm |
| Reach | 404 mm | 424 mm | 445 mm | 464 mm |
| Top Tube Length | 581 mm | 603 mm | 626 mm | 648 mm |
| Seat Tube Angle | 74.1 ° | 74.1 ° | 74.1 ° | 74.1 ° |
| Seat Tube Length | 390 mm | 435 mm | 485 mm | 535 mm |
| Head Tube Angle | 69.3 ° | 69.3 ° | 69.3 ° | 69.3 ° |
| Head Tube Length | 113 mm | 121 mm | 130 mm | 139 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1124 mm | 1147 mm | 1171 mm | 1194 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 764 mm | 793 mm | 826 mm | 859 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Cujo Neo 1 is a Cannondale E Cujo model. Cannondale released 9 e-bikes variations of this model so far. You can easily view all of the Cannondale E Cujo e-bikes models from 2019, here.
Model range prices
Cannondale Cujo Neo 1 2019 is the most economical model, with a starting price of 3900$. Cannondale Cujo NEO 130 2 2019 on the other hand costs 5800$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Cannondale Cujo Neo 1 price was 3900$. Doing a quick comparison, we notice that Cujo Neo 1 price is 15.9% higher than the average cost of a Trail e-bike.
Overview of components
Fork
The Cujo Neo 1 comes factory-installed with the RockShox Judy fork. This has a travel range of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the Cujo Neo 1 e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Cujo Neo 1. Therefore, climbing or descending will be a breeze.
