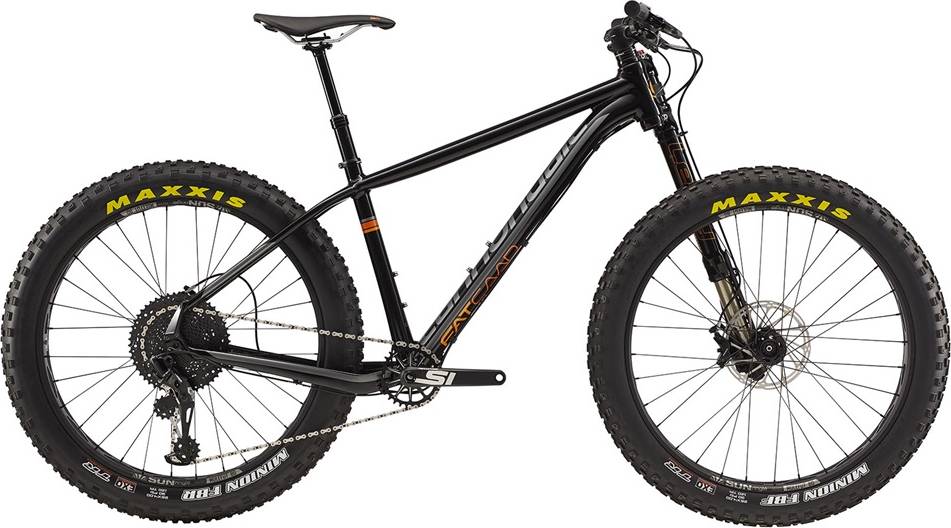

Cannondale Fat CAAD 1 2019
2019 Mountain
Estimate price |
3,360$
Weight | 14.47 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork Cannondale Lefty Olaf
-
Groupset GX Eagle, NX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fat CAAD, SmartForm C1 Alloy, BB30XL, SAVE, 1.5 Si head tube
Suspension Fork
Lefty Olaf Alloy, 2Spring, 100mm, PBR Isolated Damper with Fat tune, 60mm offset
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM NX Eagle, 12-speed
Cassette
SRAM PG-1230, NX Eagle, 10-50, 12-speed
Crank
Cannondale Si, BB30, Ai Offset SpideRing, X-Sync®, 30T
Bottom Bracket
Cannondale BB30XL
Chain
SRAM NX Eagle, 12-speed
Pedals
Not Included
Wheels
Front Hub
Lefty 73 front, Sun Ringle SRC 12x197 rear
Rear Hub
Lefty 73 front, Sun Ringle SRC 12x197 rear
Rims
Sun Ringle Mulefü??t 80 SL, tubeless ready
Spokes
DT Swiss Competition
Tires
Maxxis Minion FBF 26 x 4.0" front, FBR 4.0" rear, EXO, tubeless ready
Brakes
Brakes
SRAM Guide T hydro disc, 180/160mm Centerline Rotors
Brake Levers
SRAM Guide T hydro disc
Cockpit
Stem
Cannondale C3, 3D Forged 6061 Alloy, 1.5", 31.8, 6°, 60mm
Handlebar
Cannondale C3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 760mm
Grips
Cannondale Locking Grips
Headset
Cannondale HeadShok Si
Seat
Saddle
Fabric Scoop Shallow Elite, cro-mo rails
Seatpost
TranzX Dropper Post, 31.6, 120mm drop, internal routing
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.514 mm | 1.47 mm | 1.431 mm | 1.424 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 87 mm | 89 mm | 91 mm | 93 mm |
| Rake | 6 mm | 6 mm | 6 mm | 6 mm |
| Trail | 101 mm | 101 mm | 101 mm | 101 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 69.1 ° | 69.1 ° | 69.1 ° | 69.1 ° |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Fat CAAD 1 completes the Cannondale Fat Caad model. Cannondale launched 10 bikes of this model so far. You can easily view all of the Cannondale Fat Caad bikes models from 2019, here.
Model range prices
The most economical model, the Cannondale Fat CAAD 2 2019 has a starting price of 2100$. Cannondale Fat CAAD 1 2019 on the other hand is the most expensive at 3360$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Fatbike bikes average price
If you want an acceptable Fatbike bike you should know that the average price is 1743$. However, even if your budget is less than the average, you might still be able to get a top-quality Fatbike bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3360$. Comparing the average cost of a Fatbike bike to this one, you will see that Fat CAAD 1 price is 92.77% more expensive.
Fatbike bikes average weight
The average weight for Fatbike bikes is 13.2 kg (29.1 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 14.47 kg (31.9 lbs), Cannondale bike is a bit heavier than average. In short, the average Fatbike bike weight is 9.62% lower than this one.
Fat CAAD 1 components
Fork
This bike has the Cannondale Lefty Olaf fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
When it comes to the fork, this bike has an aluminum one, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
When it comes to wheels, the Fat CAAD 1 bike is equipped with the 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
When you want to stop the bike in time, the brakes are vital. The Fat CAAD 1 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Cannondale Fat CAAD 1 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Fat CAAD 1. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
