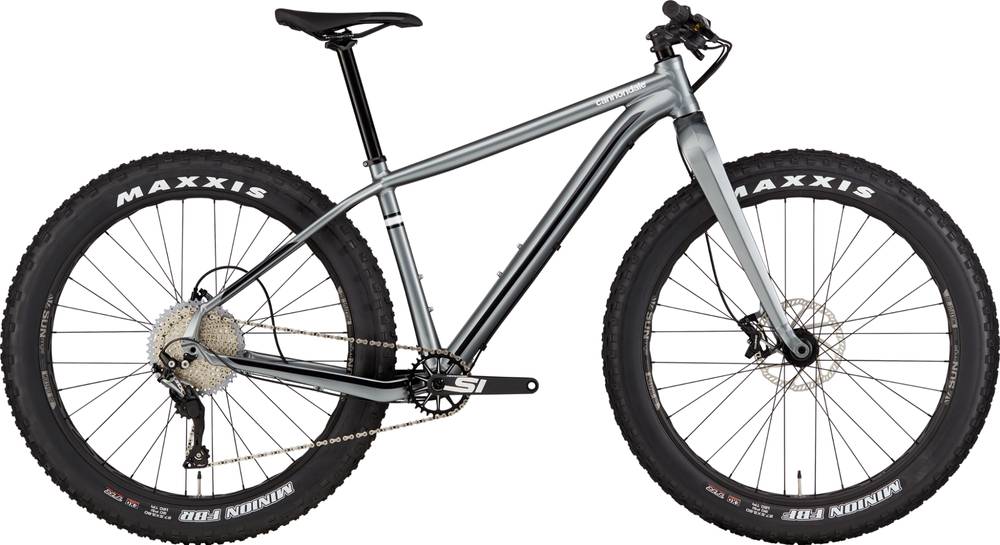

Cannondale Fat CAAD 1 2020
2020 Mountain
Estimate price |
2,000$
Weight | 13.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Groupset SLX -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C1 Alloy, BB30XL, SAVE, 1.5 Si head tube, BB30XL, SAVE, 1.5 Si head tube
Suspension Fork
Cannondale Fatty, Fat Rigid, 15x150mm, 1.5 tapered steerer, 55mm offset
Drivetrain
Rear Derailleur
Shimano SLX GS
Shift Levers
Shimano SLX, 11-speed
Cassette
Sunrace, 11-46, 11-speed
Crank
Cannondale 1, BB30, Ai Offset SpideRing, X-Sync®, 30T
Bottom Bracket
Cannondale BB30XL
Chain
KMC X11, 11-speed
Pedals
Not Included
Wheels
Front Hub
(F) Sun Ringle SRC 15x150
Rear Hub
(R) Sun Ringle SRC 12x197
Rims
Sun Ringle Mulefü??t 80 SL, tubeless ready
Spokes
Stainless Steel, 14g
Tires
(F) Maxxis Minion FBF, 27.5 x 3.8", EXO, tubeless ready(R) Maxxis Minion FBR, 27.5 x 3.8", EXO, tubeless ready
Brakes
Brakes
Tektro 4-piston hydro disc, 180/160mm rotors
Brake Levers
Tektro M745 hydro discc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Cannondale Locking Grips
Headset
Tange Seiki, Integrated, 1-1/8"-1-1/2"
Seat
Saddle
Cannondale Stage 3
Seatpost
Cannondale 3, 6061 Alloy, 31.6 x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.42 mm | 1.38 mm | 1.35 mm | 1.34 mm |
| Bottom Bracket Height | 324 mm | 324 mm | 324 mm | 324 mm | 324 mm |
| Front Center | 645 mm | 670 mm | 695 mm | 719 mm | 733 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 87 mm | 87 mm | 87 mm | 87 mm | 87 mm |
| Stack | 586 mm | 586 mm | 598 mm | 610 mm | 621 mm |
| Reach | 388 mm | 413 mm | 433 mm | 453 mm | 463 mm |
| Top Tube Length | 566 mm | 591 mm | 614 mm | 638 mm | 651 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 370 mm | 390 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 97 mm | 97 mm | 110 mm | 122 mm | 134 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1099 mm | 1124 mm | 1148 mm | 1173 mm | 1187 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 764 mm | 768 mm | 804 mm | 842 mm | 878 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Fat CAAD 1 is a Cannondale Fat Caad model. Cannondale launched 10 bikes of this model so far. You can easily view all of the Cannondale Fat Caad bikes models from 2020, here.
Model range prices
Cannondale Fat CAAD 1 2020 is the cheapest bike model and costs 2000$. Cannondale Fat CAAD 2 2020 is the most expensive one and costs 2100$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Fatbike bikes average price
Our math shows that the average cost of a dependable Fatbike bike is 1743$. However, even if your budget is less than the average, you might still be able to get a top-quality Fatbike bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2000$. In conclusion, this bike price is 14.74% more expensive than the price of the average Fatbike bike.
Fatbike bikes average weight
On a deeper look, we notice that the average weight of a Fatbike bike is 13.2 kg (29.1 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 13.2 kg (29.1 lbs), Cannondale bike is equally heavier with average. In conclusion, the average Fatbike bike weighs 0% less than Fat CAAD 1.
Overview of components
Wheels
When leaving the production line, the Fat CAAD 1 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Fat CAAD 1 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Cannondale Fat CAAD 1 bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
