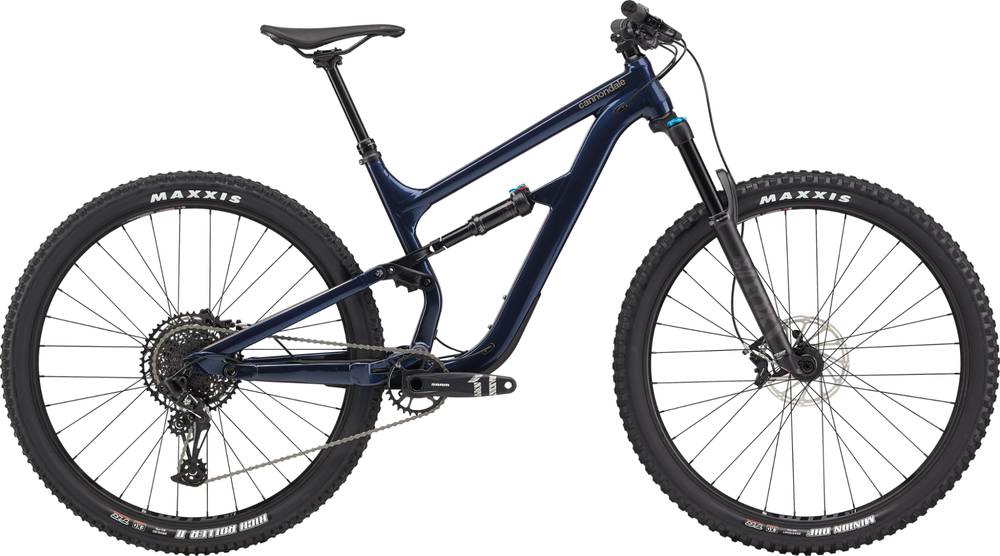

Cannondale Habit 4 2020
2020 Mountain
Estimate price |
3,250$
Weight | 15.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Rhythm Float 34
-
Groupset NX Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
130mm travel, SmartForm C1 Alloy, Proportional Response Tuned, Ai offset drivetrain, ISCG05, BSA 83, Post mount brake, tapered headtube, 130mm travel, Proportional Response Tuned, Ai offset drivetrain, ISCG05, BSA 83, Post mount brake, Tapered headtube
Suspension Fork
Fox Float Rhythm 34, 140mm, Grip Damper, Sweep-Adj, 15x110, tapered steerer, 51mm offset
Rear Shock
Fox Float Performance DPS EVOL, 3-Pos adj.
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle, 12-speed
Cassette
SRAM PG-1230, NX Eagle, 11-50, 12-speed
Crank
SRAM X1-1000 Eagle DUB, 30T, Ai offset
Bottom Bracket
SRAM DUB BSA MTB83
Chain
SRAM NX Eagle, 12-speed
Pedals
Not Included
Wheels
Front Hub
(F) Formula 15x110
Rear Hub
(R) Formula 12x148 w/ HG driver 12x148
Rims
WTB ST i25 TCS 2.0, 32h, tubeless ready
Spokes
Stainless steel, 14g
Tires
(F) Maxxis Minion DHF 29 x 2.5" WT, Dual compound, EXO puncture protection, tubeless ready(R) Maxxis High Roller II 29 x 2.3", Dual compound, EXO puncture protection, tubeless ready
Brakes
Brakes
SRAM Guide T hydro disc, 180/180mm Centerline rotors
Brake Levers
SRAM Guide T hydro disc
Cockpit
Stem
Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Fabric Funguy Locking Grips
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
Seat
Saddle
Fabric Scoop Shallow Sport, steel rails
Seatpost
Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M-XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.518 mm | 1.433 mm | 1.359 mm | 1.294 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 710 mm | 743 mm | 778 mm | 811 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 112 mm | 112 mm | 112 mm | 112 mm |
| Stack | 607 mm | 616 mm | 625 mm | 634 mm |
| Reach | 400 mm | 430 mm | 460 mm | 490 mm |
| Top Tube Length | 573 mm | 606 mm | 639 mm | 671 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1142 mm | 1176 mm | 1210 mm | 1244 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 720 mm | 750 mm | 770 mm | 780 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Habit 4 is part of the Cannondale Habit model. Cannondale launched 86 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Cannondale Habit 6 2020 is the most economical model, with a starting price of 2100$. Cannondale Habit Carbon 1 2020 on the other hand costs 8250$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2020 and its price was 3250$. Comparing this to the average Trail bike price, we see that the price is 17.67% higher.
Trail bikes average weight
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Cannondale Habit 4 it’s weighing 15.1 kg (33.29 lbs). At this weight, is much heavier than average. In short, the average Trail bike weight is 16.33% lower than this one.
Overview of components
Fork
This bike has the Fox Rhythm Float 34 fork installed. The fork’s travel is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Habit 4 has a rear shock with a travel of 130mm. The model Fox Float Performance DPS EVOL is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Cannondale Habit 4 2020, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Cannondale Habit 4 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Cannondale Habit 4 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Cannondale Habit 4 includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
