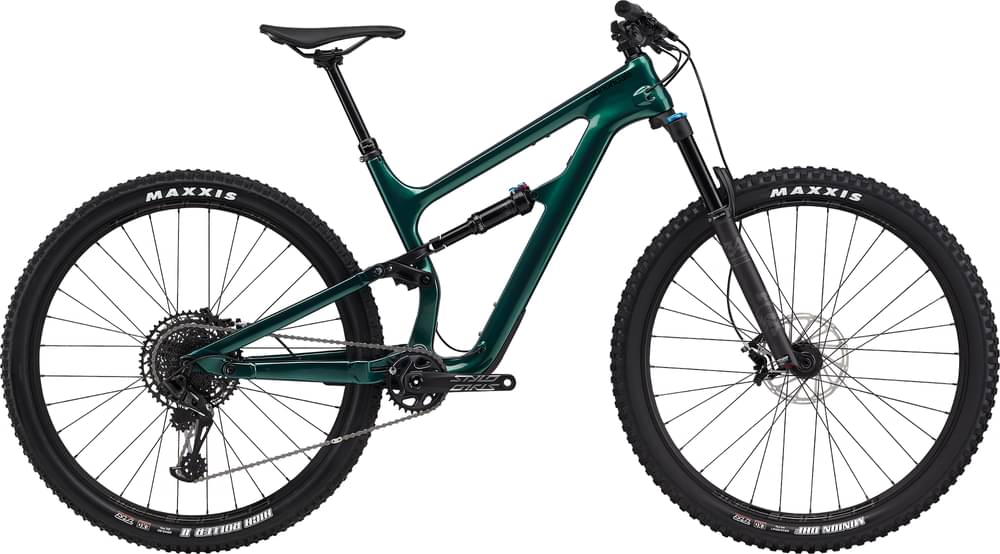

Cannondale Habit Carbon 3 2020
2020 Mountain
Estimate price |
4,200$
Weight | 14.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Performance Float 34
-
Groupset GX Eagle, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
157cm - 165cm
MD
167cm - 175cm
LG
172cm - 182cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
130mm travel, BallisTec Carbon front triangle, SmartForm C1 Alloy swingarm, Proportional Response Tuned, Ai offset drivetrain, ISCG05, PF30, Post mount brake, tapered headtube, 130mm travel, Proportional Response Tuned, Ai offset drivetrain, ISCG05, PF30, Post mount brake, Tapered headtube
Suspension Fork
Fox Float Performance 34, 140mm, Grip Damper, Sweep adj. 15x110, tapered steerer, 51mm offset
Rear Shock
Fox Float Performance DPS EVOL, 3-Pos adj.
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM NX Eagle, 12-speed
Cassette
SRAM PG-1230, NX Eagle, 11-50, 12-speed
Crank
Truvativ Stylo 6K DUB, 30T, Ai offset
Bottom Bracket
SRAM DUB PF30 MTB83
Chain
SRAM NX Eagle, 12-speed
Pedals
Not Included
Wheels
Front Hub
(F) Formula 15x110
Rear Hub
(R) Formula 12x148 w/ HG driver 12x148
Rims
Stan's NoTubes ARCH S1, 32h, tubeless ready
Spokes
DT Swiss Champion
Tires
(F) Maxxis Minion DHF 29 x 2.5" WT, Dual compound, EXO puncture protection, tubeless ready(R) Maxxis High Roller II 29 x 2.3", Dual compound, EXO puncture protection, tubeless ready
Brakes
Brakes
SRAM Guide R hydro disc, 180/180mm Centerline rotors
Brake Levers
SRAM Guide R hydro disc
Cockpit
Stem
Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Fabric Funguy Locking Grips
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
Seat
Saddle
Fabric Scoop Shallow Sport, steel rails
Seatpost
Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M-XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.52 mm | 1.44 mm | 1.36 mm | 1.3 mm |
| Bottom Bracket Height | 331 mm | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 670 mm | 710 mm | 743 mm | 778 mm | 811 mm |
| Rake | 44 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 112 mm | 112 mm | 112 mm | 112 mm | 112 mm |
| Stack | 597 mm | 604 mm | 613 mm | 622 mm | 631 mm |
| Reach | 363 mm | 397 mm | 427 mm | 457 mm | 487 mm |
| Top Tube Length | 535 mm | 570 mm | 603 mm | 636 mm | 668 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1100 mm | 1139 mm | 1173 mm | 1207 mm | 1241 mm |
| Bottom Bracket Drop | 28 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 697 mm | 717 mm | 747 mm | 767 mm | 777 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 157 cm | 167 cm | 172 cm | 185 cm |
| Rider Max Height | 166 cm | 165 cm | 175 cm | 182 cm | 195 cm |
Model Overview
Habit Carbon 3 belongs to the Cannondale Habit model. There are 86 bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Cannondale Habit 6 2020 has a starting price of 2100$. Cannondale Habit Carbon 1 2020 on the other hand is the most expensive at 8250$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2020 for 4200$. In conclusion, this bike price is 52.06% higher than the price of the average Trail bike.
Trail bikes average weight
The average weight for Trail bikes is 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit heavier than average, Habit Carbon 3 has a weight of 14.1 kg (31.09 lbs). In short, the average Trail bike weight is 8.63% lower than this one.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Float 34 model. The travel on this model is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the Fox Float Performance DPS EVOL rear shock model, which has a travel of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Habit Carbon 3 bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cannondale Habit Carbon 3 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the Habit Carbon 3. Therefore, climbing or descending will be a breeze.
