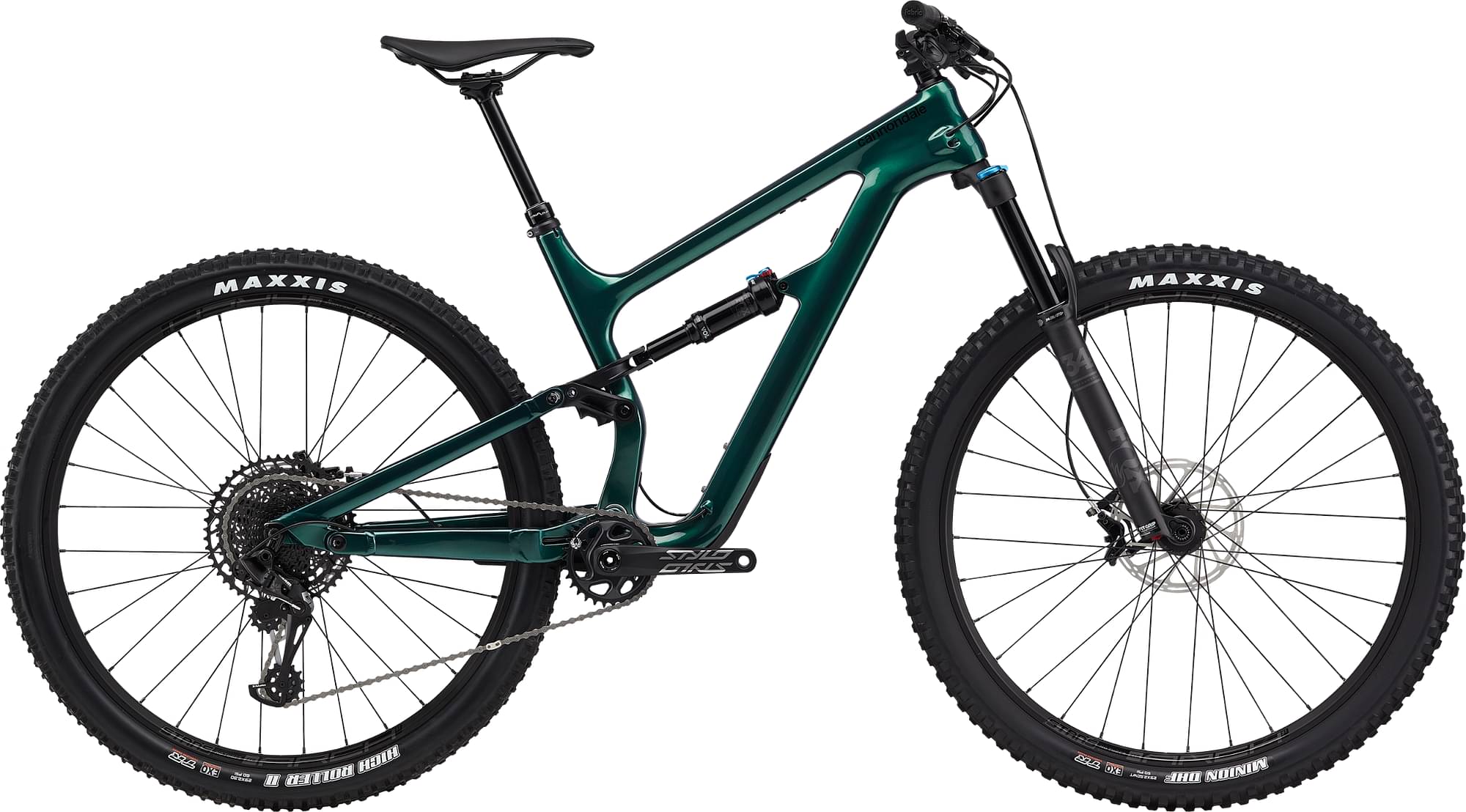

Cannondale Habit Carbon 3 2022
2022 Mountain
Estimate price |
4,357$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Performance Float 34
-
Groupset GX Eagle, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 165cm
MD
167cm - 175cm
LG
172cm - 182cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
130mm travel, BallisTec Carbon front triangle, SmartForm C1 Alloy swingarm, Proportional Response Tuned, Ai offset drivetrain, ISCG05, PF30, Post mount brake, tapered headtube
Suspension Fork
Fox Float Performance 34, 140mm, Grip Damper, Sweep adj., 15x110, tapered steerer, 51mm offset
Rear Shock
Fox Float Performance DPS EVOL, 3-Pos adj.
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM NX Eagle, 12-speed
Cassette
SRAM PG-1230, NX Eagle, 11-50, 12-speed
Crank
Truvativ Stylo 6K DUB, 30T, Ai offset
Bottom Bracket
SRAM DUB PF30 MTB83
Chain
SRAM NX Eagle, 12-speed
Pedals
Not Included
Wheels
Front Hub
(F) Formula 15x110
Rear Hub
(R) Formula 12x148 w/ HG driver 12x148
Rims
Stan's NoTubes ARCH S1, 32h, tubeless ready
Spokes
DT Swiss Champion
Tires
(F) Maxxis Minion DHF 29 x 2.5" WT, Dual compound, EXO puncture protection, tubeless ready(R) Maxxis High Roller II 29 x 2.3", Dual compound, EXO puncture protection, tubeless ready
Brakes
Brakes
SRAM Guide R hydro disc, 180/180mm Centerline rotors
Brake Levers
SRAM Guide R hydro disc
Cockpit
Stem
Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Fabric Funguy Locking Grips
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
Seat
Saddle
Fabric Scoop Shallow Sport, steel rails
Seatpost
Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M-XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.518 mm | 1.433 mm | 1.359 mm | 1.294 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 710 mm | 743 mm | 778 mm | 811 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 112 mm | 112 mm | 112 mm | 112 mm |
| Stack | 607 mm | 616 mm | 625 mm | 634 mm |
| Reach | 400 mm | 430 mm | 460 mm | 490 mm |
| Top Tube Length | 573 mm | 606 mm | 639 mm | 671 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1142 mm | 1176 mm | 1210 mm | 1244 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 720 mm | 750 mm | 770 mm | 780 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 167 cm | 172 cm | 185 cm |
| Rider Max Height | 165 cm | 175 cm | 182 cm | 195 cm |
About this model
Habit Carbon 3 completes the Cannondale Habit model. Cannondale released 86 bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Cannondale Habit 5 2022 is the most economical model, with a starting price of 2547$. Cannondale Habit Carbon 1 2022 on the other hand costs 7431$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2022 and its price was 4034$. Comparing this to the average Trail bike price, we see that the price is 46.05% more expensive.
Habit Carbon 3 components
Fork
Cannondale Habit Carbon 3 2022 bike is equipped with the Fox Performance Float 34 fork, and has 140mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this bike has the Fox Float Performance DPS EVOL model, with a travel of 130mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the Habit Carbon 3 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Habit Carbon 3 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 157 cm – 195 cm (5.15 ft – 6.4 ft). In short, you can easily find one that suits you.
Dropper post
The Cannondale model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
