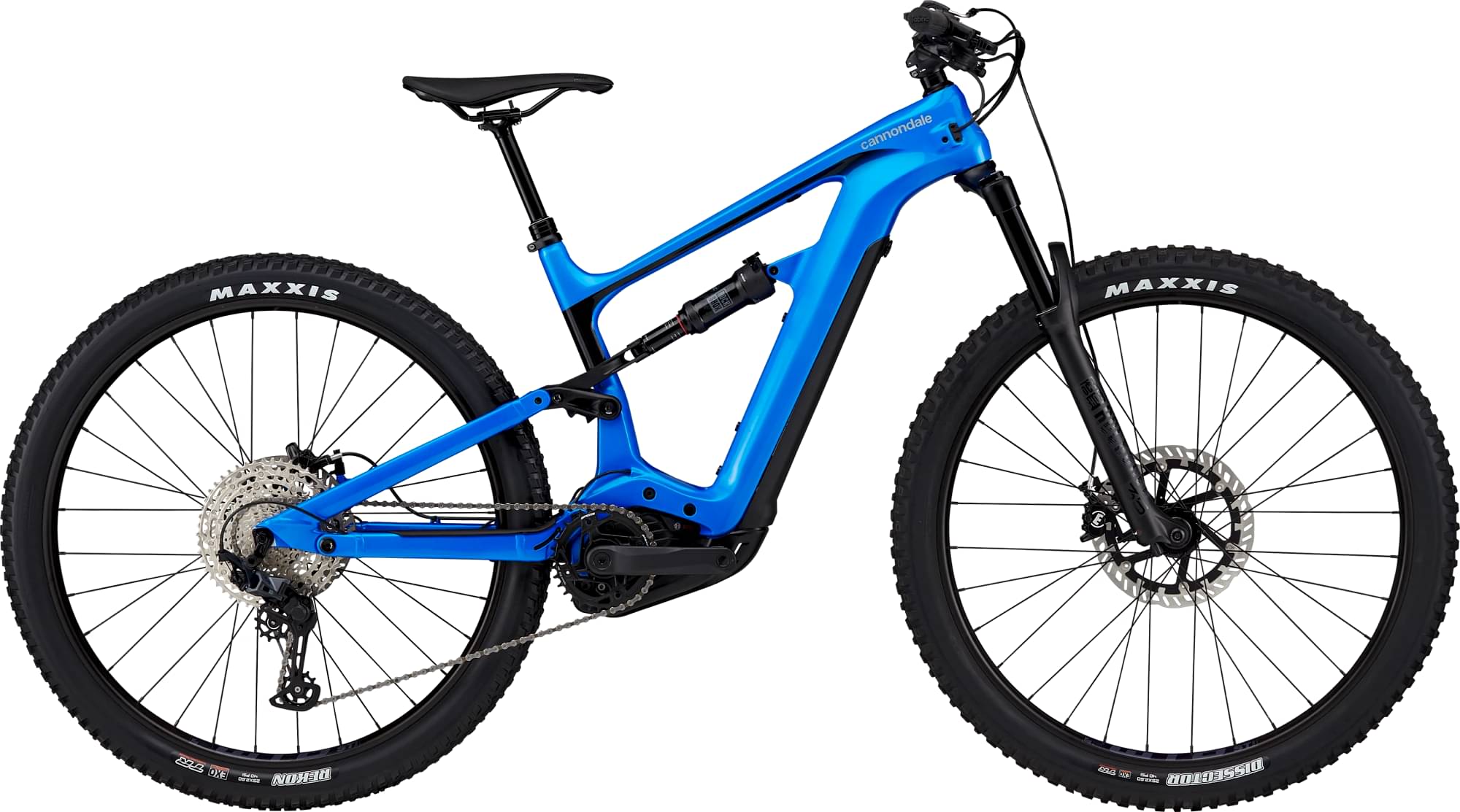

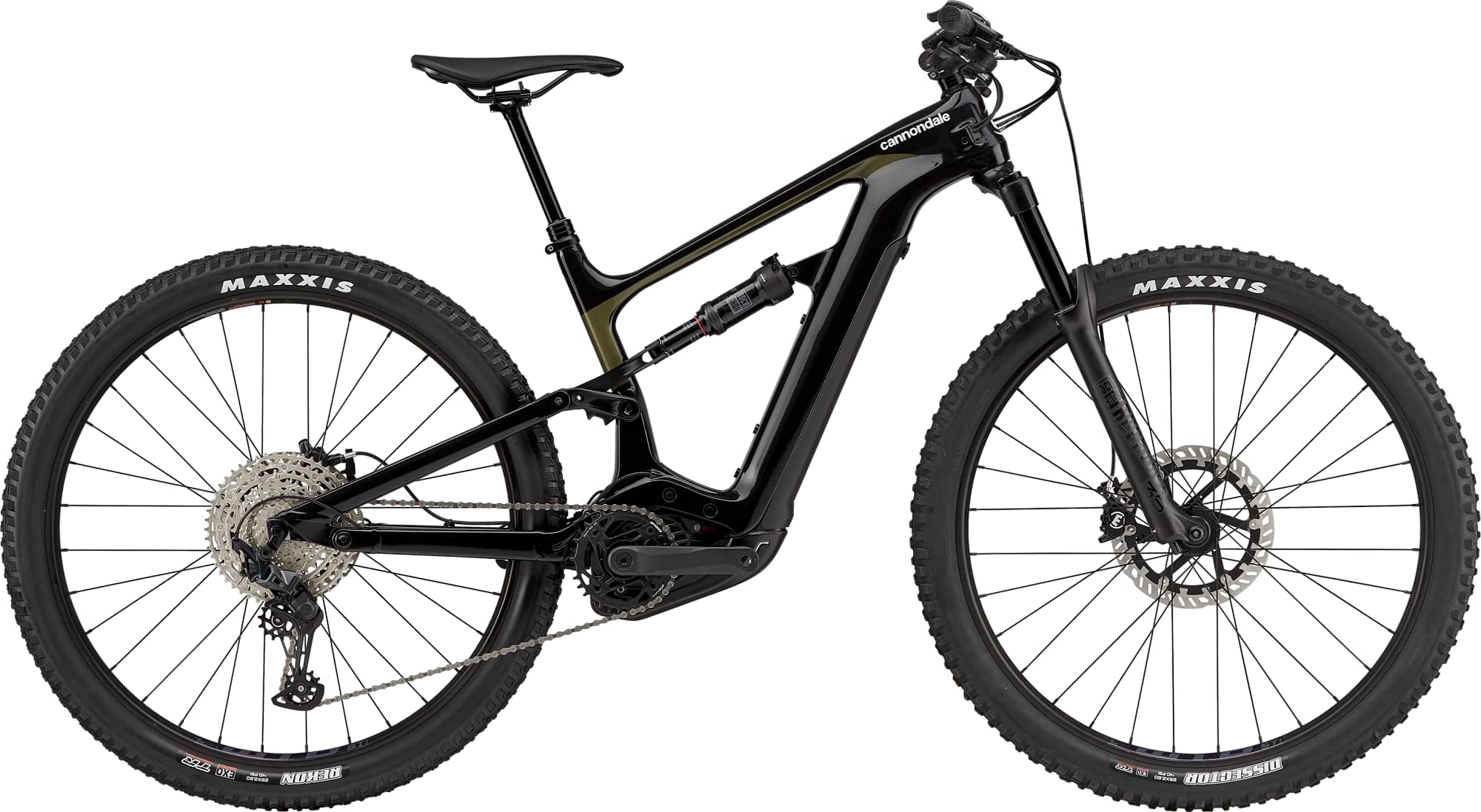

Cannondale Habit Neo 3 2023
2023 E-bike
Estimate price |
7,829$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Yari RC
-
Groupset SLX, Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 625Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 170cm
MD
165cm - 177cm
LG
172cm - 185cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
130mm travel, BallisTec Carbon Front Triangle, SmartForm C1 Alloy Swingarm, alloy skid plate, Ai offset drivetrain
Suspension Fork
RockShox Yari RC, 140mm, 15x110mm Boost, E-MTB, 51mm offset
Rear Shock
RockShox Deluxe Select R, DebonAir
Drivetrain
Rear Derailleur
Shimano SLX, 12-speed
Shift Levers
Shimano Deore M6100, 12-speed
Cassette
Shimano Deore M6100, 10-51, 12-speed
Crank
FSA Bosch E-Bike w/ custom Ai offset, 34T
Bottom Bracket
Cannondale AI, 83mm, press-fit
Chain
Shimano Deore, 12-speed
Pedals
Not included
Wheels
Front Hub
Formula DC-511, 15x110mm
Rear Hub
Shimano FH-MT410-B, 12x148mm
Rims
WTB ST i30 TCS, 32h, tubeless ready
Spokes
DT Swiss Champion
Tires
(F) Maxxis Dissector, 29x2.6", EXO casing, tubeless ready / (R) Maxxis Rekon, 29x2.6", EXO casing tubeless ready
Brakes
Brakes
(F) Magura MTThirty hydraulic disc, 4-piston, 220mm MDR-P rotor / (R) Magura MTThirty hydraulic disc, 2-piston, 203mm MDR-P rotor
Brake Levers
Magura MTThirty HC hydraulic dis
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 0°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Fabric FunGuy
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Fabric Scoop Shallow Sport, steel rails
Seatpost
TranzX dropper, internal routing, 31.6, Drop: 125mm (SM), 130mm (MD, LG, XL)
Motor & Battery
Motor
Bosch Performance Line CX 250W
Battery
Bosch PowerTube, 625Wh
Charger
Bosch 4A
Fit data

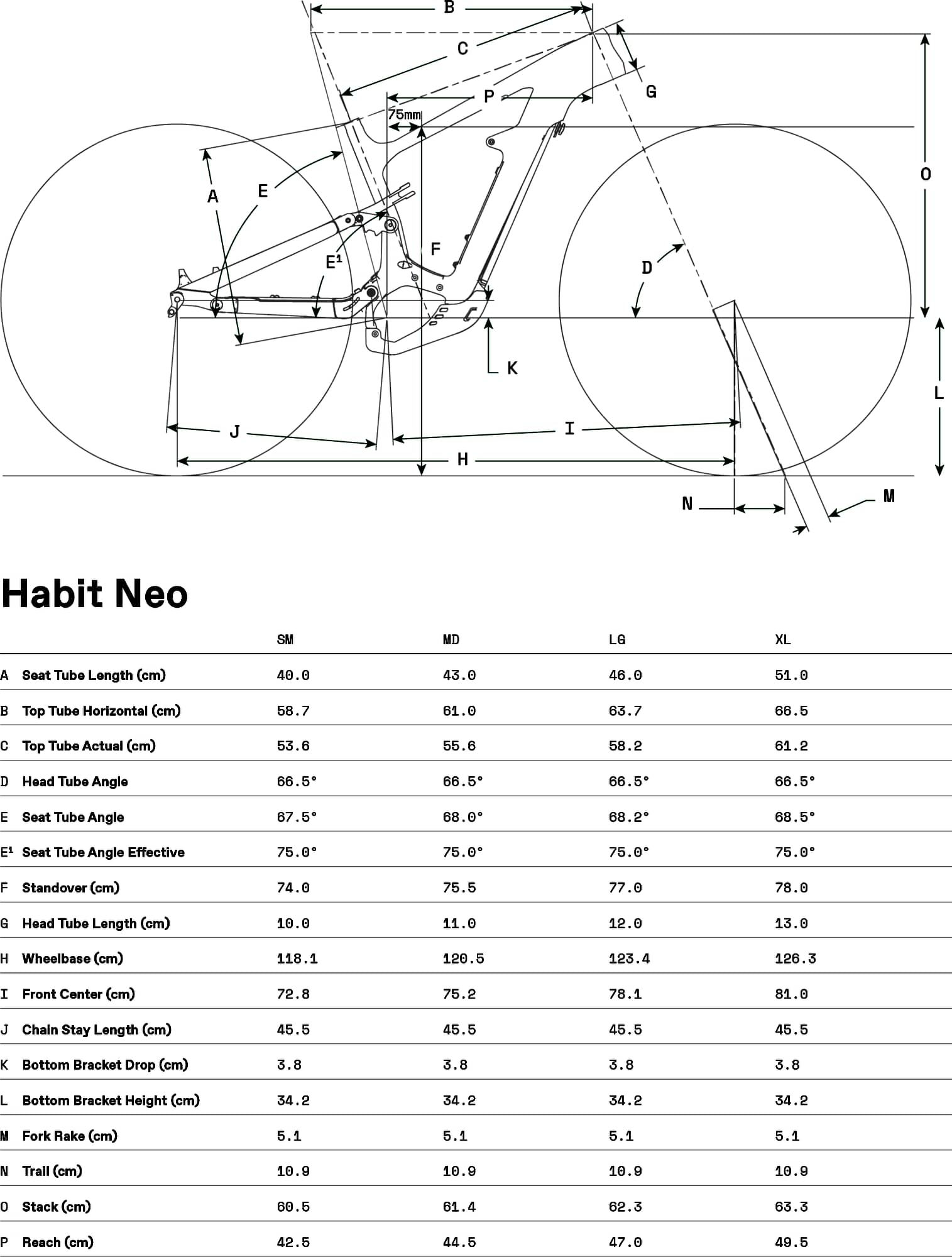

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.424 mm | 1.38 mm | 1.326 mm | 1.279 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 728 mm | 752 mm | 781 mm | 810 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 109 mm | 109 mm | 109 mm | 109 mm |
| Stack | 605 mm | 614 mm | 623 mm | 633 mm |
| Reach | 425 mm | 445 mm | 470 mm | 495 mm |
| Top Tube Length | 587 mm | 610 mm | 637 mm | 665 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 430 mm | 460 mm | 510 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1181 mm | 1205 mm | 1234 mm | 1263 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 536 mm | 556 mm | 582 mm | 612 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 165 cm | 172 cm | 180 cm |
| Rider Max Height | 170 cm | 177 cm | 185 cm | 195 cm |
Model Overview
Habit Neo 3 completes the Cannondale E Habit model. There are 19 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Cannondale Habit Neo 3 2023 is the most economical model, with a starting price of 7116$. Cannondale Habit Neo 1 2023 on the other hand costs 9123$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7116$. In conclusion, this e-bike price is 111.47% more expensive than the price of the average Trail e-bike.
Habit Neo 3 components
Fork
This e-bike has the RockShox Yari RC fork installed. The fork’s travel is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the RockShox Deluxe Select R rear shock model, which has a travel of 130mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, Cannondale Habit Neo 3 2023, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Habit Neo 3 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 157 cm – 195 cm (5.15 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Cannondale model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
