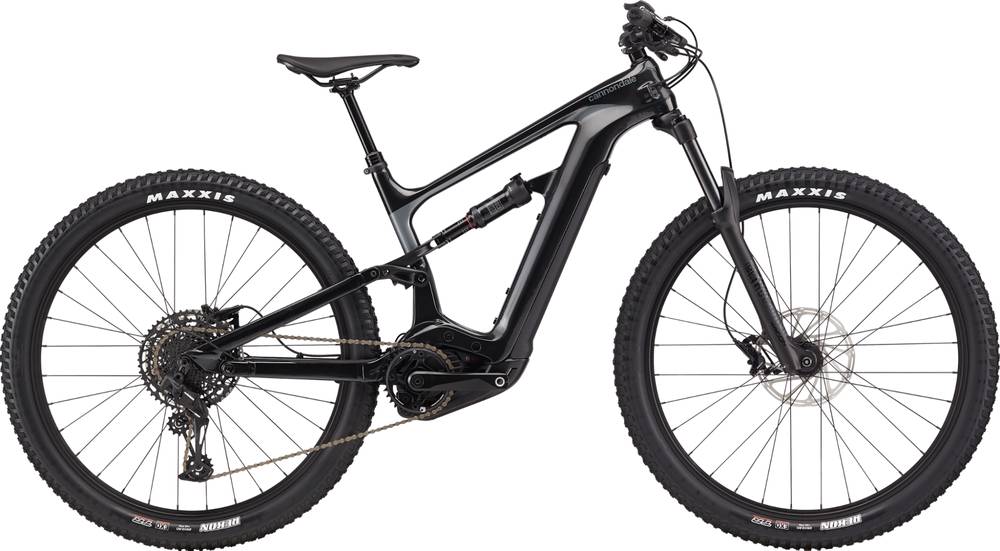

Cannondale Habit Neo 4 2020
2020 E-bike
Estimate price |
5,500$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Recon Silver RL
-
Groupset SX Eagle -
Suspension Full -
Motor Bosch -
Battery Bosch PowerTube 500Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
130mm travel, Carbon Front Triangle, SmartForm C1 Alloy Swingarm, Proportional Response Tuned Suspension, removeable downtube battery, alloy skid plate, Ai offset drivetrain, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube, 130mm travel, Proportional Response Tuned Suspension, Removeable downtube battery, Alloy skid plate, Ai offset drivetrain, Internal cable routing, 148x12mm thru-axle, Post mount brake, Tapered headtube
Suspension Fork
RockShox Recon RL, 140mm, Solo Air, 15x110, tapered steerer, 51mm offset
Rear Shock
RockShox Deluxe Select R, DebonAir
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle, 12-speed
Cassette
SRAM PG-1210, SX Eagle, 11-50, 12-speed
Crank
Bosch Gen4 w/ custom Ai offset, 34T
Bottom Bracket
Cannondale AI, 83mm, press-fit
Chain
SRAM SX Eagle, 12-speed
Pedals
Not Included
Wheels
Front Hub
Formula DC-511, 15x100
Rear Hub
Formula DC-1248, 12x148
Rims
WTB STX i29 TCS, 32h, tubeless ready
Spokes
DT Swiss Champion
Tires
Maxxis Rekon, 29 x 2.6", EXO, tubeless ready
Brakes
Brakes
SRAM Level T hydro disc, 200/200mm Centerline rotors
Brake Levers
SRAM Level T hydro disc
Cockpit
Stem
Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0-degree
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Fabric Funguy Locking Grips
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Fabric Scoop Shallow Sport, steel rails
Seatpost
TranzX dropper, internal routing, 31.6, 80mm (XS), 100mm (S), 120mm (M), 130mm (L-XL)
Motor & Battery
Motor
Bosch PowerTube 500Wh
Battery
Bosch PowerTube 500Wh
Remote
Bosch Purion
Charger
Bosch 4a
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.424 mm | 1.38 mm | 1.326 mm | 1.279 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 728 mm | 752 mm | 781 mm | 810 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 109 mm | 109 mm | 109 mm | 109 mm |
| Stack | 605 mm | 614 mm | 623 mm | 633 mm |
| Reach | 425 mm | 445 mm | 470 mm | 495 mm |
| Top Tube Length | 587 mm | 610 mm | 637 mm | 665 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 430 mm | 460 mm | 510 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1181 mm | 1205 mm | 1234 mm | 1263 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 536 mm | 556 mm | 582 mm | 612 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Habit Neo 4 is a Cannondale E Habit model. Cannondale launched 19 e-bikes of this model so far. You can easily view all of the Cannondale E Habit e-bikes models from 2020, here.
Model range prices
Cannondale Habit Neo 4 2020 is the cheapest e-bike model and costs 5500$. Cannondale Habit Neo 2 2020 is the most expensive one and costs 7000$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5500$. Comparing the average cost of a Trail e-bike to this one, you will see that Habit Neo 4 price is 63.45% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Habit Neo 4 components
Fork
The RockShox Recon Silver RL is included from the factory. It has a travel distance of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the RockShox Deluxe Select R rear shock model, which has a travel of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The Habit Neo 4 2020 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Cannondale Habit Neo 4 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Habit Neo 4. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
