Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox 35 Silver
-
Groupset Deore, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 159cm
SM
156cm - 165cm
MD
167cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
130mm travel, SmartForm C1 Alloy, Proportional Response Tuned, Ai offset drivetrain, ISCG05, BSA 83, post mount brake, tapered headtube
Suspension Fork
RockShox 35 Silver R, 140mm, Coil, 15x110mm thru-axle, tapered steerer, 51mm offset
Rear Shock
RockShox Deluxe Select, DebonAir, adjustable rebound
Drivetrain
Rear Derailleur
Shimano Deore M5100
Shift Levers
Shimano Deore M5100, 11-speed
Cassette
Shimano Deore M5100, 11-51, 11-speed
Crank
RaceFace Ride Cinch, 30T
Bottom Bracket
Race Face BSA
Chain
KMC X11, 11-speed
Pedals
Not included
Wheels
Front Hub
Shimano MT400, 15x110mm thru-axle
Rear Hub
Shimano MT400, 12x148mm thru-axle
Rims
WTB STX i23 TCS, 32h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
Maxxis Ardent, 27.5/29x2.4", EXO casing, tubeless ready
Brakes
Brakes
Tektro M275 hydraulic disc, 180/180mm rotors
Brake Levers
Tektro hydraulic disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 0°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 760mm (XS, S), 780mm (M)
Grips
Fabric FunGuy
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
Seat
Saddle
Cannondale Stage 3 Women's Ergo
Seatpost
TranzX Dropper, 31.6, Internal Routing, 120mm
Fit data

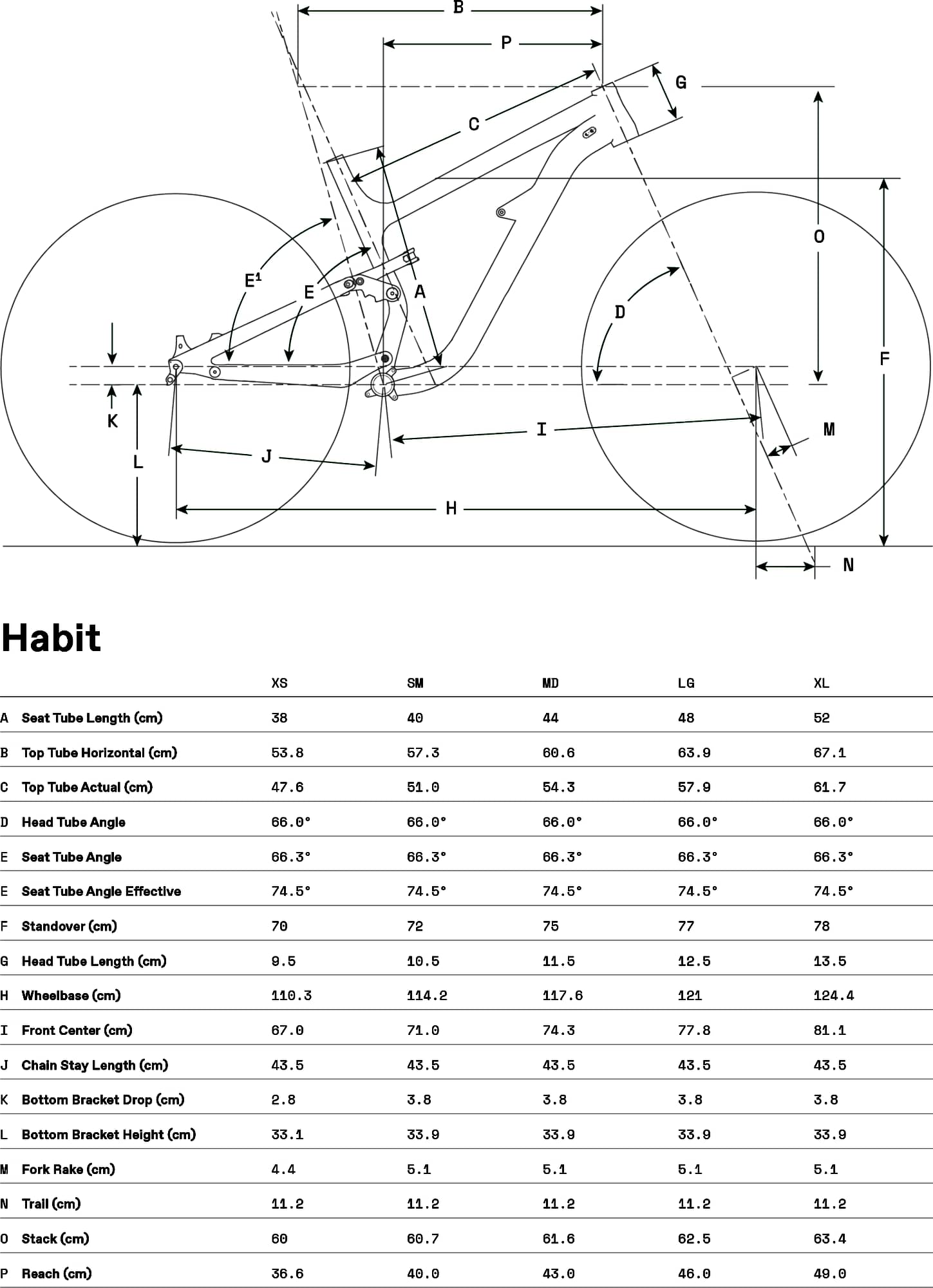

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.52 mm | 1.44 mm |
| Bottom Bracket Height | 331 mm | 339 mm | 339 mm |
| Front Center | 670 mm | 710 mm | 743 mm |
| Rake | 44 mm | 51 mm | 51 mm |
| Trail | 112 mm | 112 mm | 112 mm |
| Stack | 597 mm | 604 mm | 613 mm |
| Reach | 363 mm | 397 mm | 427 mm |
| Top Tube Length | 535 mm | 570 mm | 603 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 400 mm | 440 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1100 mm | 1139 mm | 1173 mm |
| Bottom Bracket Drop | 28 mm | 38 mm | 38 mm |
| Standover Height | 697 mm | 717 mm | 747 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 156 cm | 167 cm |
| Rider Max Height | 159 cm | 165 cm | 175 cm |
About this model
Habit Women’s 5 completes the Cannondale Habit model. 86 bikes variations carry this model name so far. You can easily view all of the Cannondale Habit bikes models from 2023, here.
Model range prices
Cannondale Habit HT 3 2023 is the cheapest bike model and costs 1100$. Cannondale Habit LTD 2023 is the most expensive one and costs 10000$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
This bike has the RockShox 35 Silver fork installed. The fork’s travel is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is RockShox Deluxe Select, with a travel distance of 130mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Habit Women’s 5 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Habit Women’s 5 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 152 cm – 175 cm (4.99 ft – 5.74 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Cannondale model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
