Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 165mm -
Fork Fox Performance Float 36
-
Groupset SLX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All-New Jekyll, 165mm travel, SmartForm C1 Alloy, carbon shock link, Ai offset drivetrain, ISCG05, BB30, flat mount brake, tapered headtube
Suspension Fork
Fox Float 36 Performance, 27.5, 170mm, 110x15, tapered steerer, 44mm offset
Rear Shock
Fox Float Performance DPS EVOL w/ Gemini remote-actuated dual mode air spring system, Flow Mode - 165mm / Hustle Mode - 130mm
Drivetrain
Rear Derailleur
Shimano SLX, 11-speed
Front Derailleur
N/A
Shift Levers
Shimano SLX, 11-speed
Cassette
Shimano SLX, 11-speed, 11-46
Crank
Cannondale Si, BB30, SpideRing 30T, Ai offset
Bottom Bracket
Cannondale BB30
Chain
KMC X11, 11-speed
Chain Guide
N/A
Pedals
Not included
Wheels
Front Hub
Formula w/ HG driver - 110x15 thru front / 148x12 thru rear w/Ai offset
Rear Hub
Formula w/ HG driver - 110x15 thru front / 148x12 thru rear w/Ai offset
Rims
WTB STP i25, 25mm inner, TCS Tubeless Ready 27.5", 32h
Spokes
DT Swiss Champion 2.0
Tires
Maxxis Minion DHF 27.5x2.5" front, DHR II 2.4" rear, Dual Compound, folding, Tubeless Ready
Brakes
Brakes
Shimano Deore MT500 hydro disc, 180/180mm
Brake Levers
Shimano Deore MT500 hydro disc
Cockpit
Stem
Cannondale C3, 6061 Alloy, 1-1/8", 31.8, 0°, 35mm
Handlebar
Cannondale C3 Riser, 6061 Alloy, 15mm rise, 4° up, 9° back, 31.8, 780mm
Grips
Cannondale Locking Grips
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
Seat
Saddle
Fabric Radius Scoop
Seatpost
TransX dropper, Internal Routing, 31.6, 120mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.385 mm | 1.342 mm | 1.302 mm | 1.261 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| Stack | 590 mm | 601 mm | 612 mm | 624 mm |
| Reach | 426 mm | 448 mm | 470 mm | 495 mm |
| Top Tube Length | 584 mm | 609 mm | 634 mm | 662 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 430 mm | 460 mm | 520 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 102 mm | 115 mm | 127 mm | 140 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1166 mm | mm | 1220 mm | 1250 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm |
| Standover Height | 750 mm | 758 mm | 767 mm | 775 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

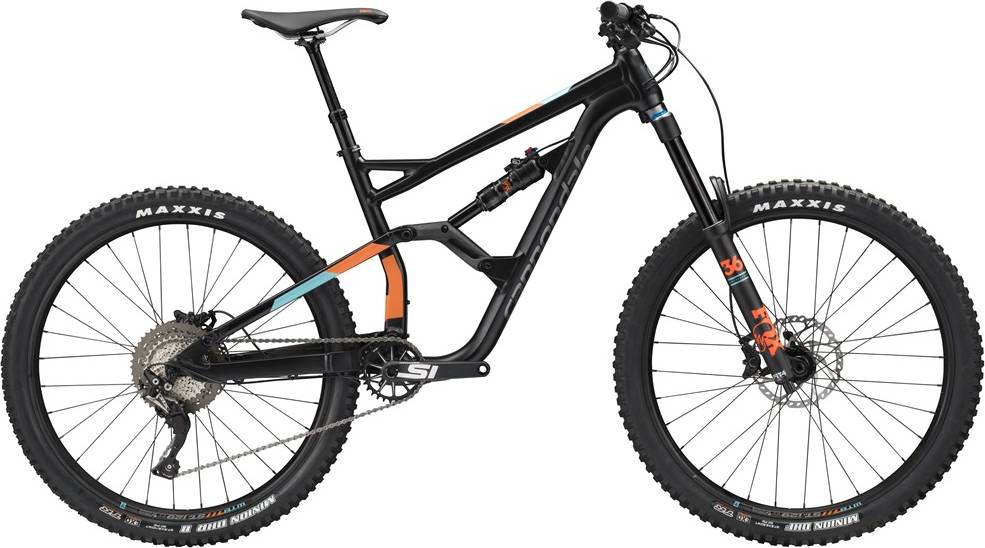

About this model
Jekyll 4 belongs to the Cannondale Jekyll model. Cannondale released 38 bikes variations of this model so far. You can easily view all of the Cannondale Jekyll bikes models from 2018, here.
Model range prices
Cannondale Jekyll 4 2018 is the most affordable bike of this model and has a price of 3200$. On the other hand, Cannondale Jekyll 1 2018, is the most expensive and costs 7750$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro bikes
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2018 for 3200$. Doing a quick comparison, we notice that Jekyll 4 price is 12.47% lower than the average cost of an Enduro bike.
Jekyll 4 components
Fork
The Jekyll 4 comes factory-installed with the Fox Performance Float 36 fork. This has a travel range of 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Jekyll 4 has a rear shock with a travel of 165mm. The model Fox Float Performance DPS EVOL w/ is the one installed in this bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on Jekyll 4 are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Jekyll 4 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Jekyll 4. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
