Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox Yari RC
-
Groupset SLX -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery BOSCH PowerPack -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Yari RC Solo Air, 110mm boost spacing
Rear Shock
RockShox Monarch RT DebonAir, high volume
Drivetrain
Rear Derailleur
Shimano SLX M7000 Shadow Plus, 11-speed
Front Derailleur
N/A
Shift Levers
Shimano SLX M-7000, 11-speed
Cassette
Sunrace CSMS2 11-42 tooth
Crank
Cannondale EC3, Ai offset ring
Bottom Bracket
Cannondale AI, 83mm, press-fit
Chain
Shimano HG601, 11-speed
Chain Guide
Top guide
Pedals
N/A
Wheels
Front Hub
Formula Disc, 15mm x 110mm front, 12mm x 157mm rear
Rear Hub
Formula Disc, 15mm x 110mm front, 12mm x 157mm rear
Rims
WTB I25, 25mm inner width, tubeless ready
Spokes
DT Swiss Champion
Tires
Front: Schwalbe Magic Mary 2.35", Super Gravity casing, tubeless ready, Rear: Schwalbe Hans Dampf 2.35", Super Gravity casing, tubeless ready
Brakes
Brakes
Shimano SLX, 200mm front / 180mm rear rotors
Brake Levers
Shimano SLX
Cockpit
Stem
FSA Gravity Light, 45mm length
Handlebar
Cannondale C2 alloy, 780mm width, 15mm rise
Grips
Cannondale, lock-on
Headset
Tange Seiki
Seat
Saddle
Fabric Scoop Elite
Seatpost
KS Lev Integra, S - 100mm travel, M - 125mm travel, L/XL - 150mm travel
Motor & Battery
Motor
BOSCH Performance CX 250W
Battery
BOSCH PowerPack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.485 mm | 1.418 mm | 1.358 mm | 1.281 mm |
| Bottom Bracket Height | 357 mm | 357 mm | 357 mm | 357 mm |
| Stack | 588 mm | 600 mm | 611 mm | 611 mm |
| Reach | 396 mm | 423 mm | 450 mm | 477 mm |
| Top Tube Length | 556 mm | 586 mm | 616 mm | 643 mm |
| Seat Tube Angle | 74.8 ° | 74.8 ° | 74.8 ° | 74.8 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 109.7 mm | 122.4 mm | 134.4 mm | 134.4 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1157 mm | 1189 mm | 1221 mm | 1248 mm |
| Bottom Bracket Drop | -2 mm | -2 mm | -2 mm | -2 mm |
| Standover Height | 770 mm | 780 mm | 780 mm | 790 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

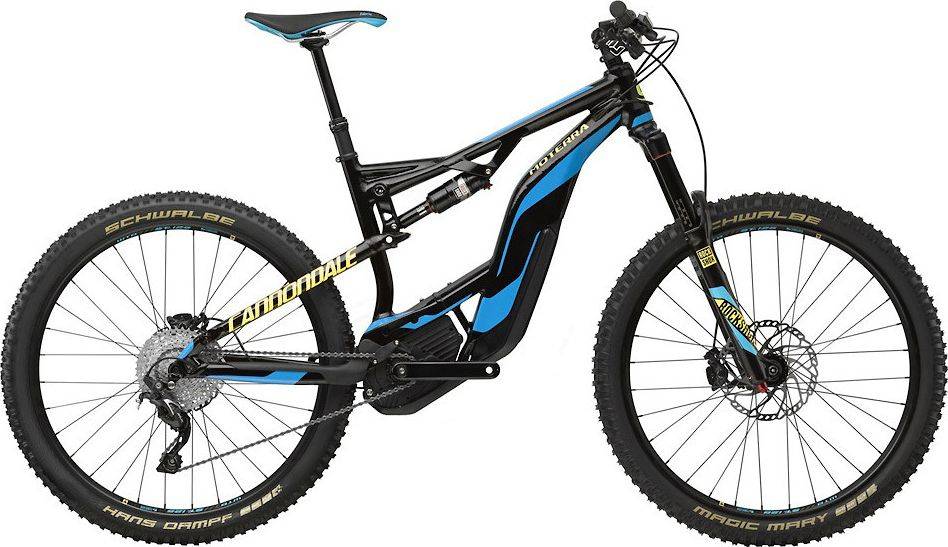

Model Overview
Moterra LT 2 completes the Cannondale E Moterra model. Cannondale released 55 e-bikes variations of this model so far. Take a sneak peek at all Cannondale E Moterra e-bikes models from 2018, by clicking here.
Model range prices
Cannondale Moterra 2018 is the most economical model, with a starting price of 5499$. Cannondale Moterra SE 2018 on the other hand costs 5999$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
The RockShox Yari RC is included from the factory. It has a travel distance of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the RockShox Monarch RT DebonAir rear shock model, which has a travel of 160mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the Moterra LT 2 e-bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Moterra LT 2 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Moterra LT 2 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
