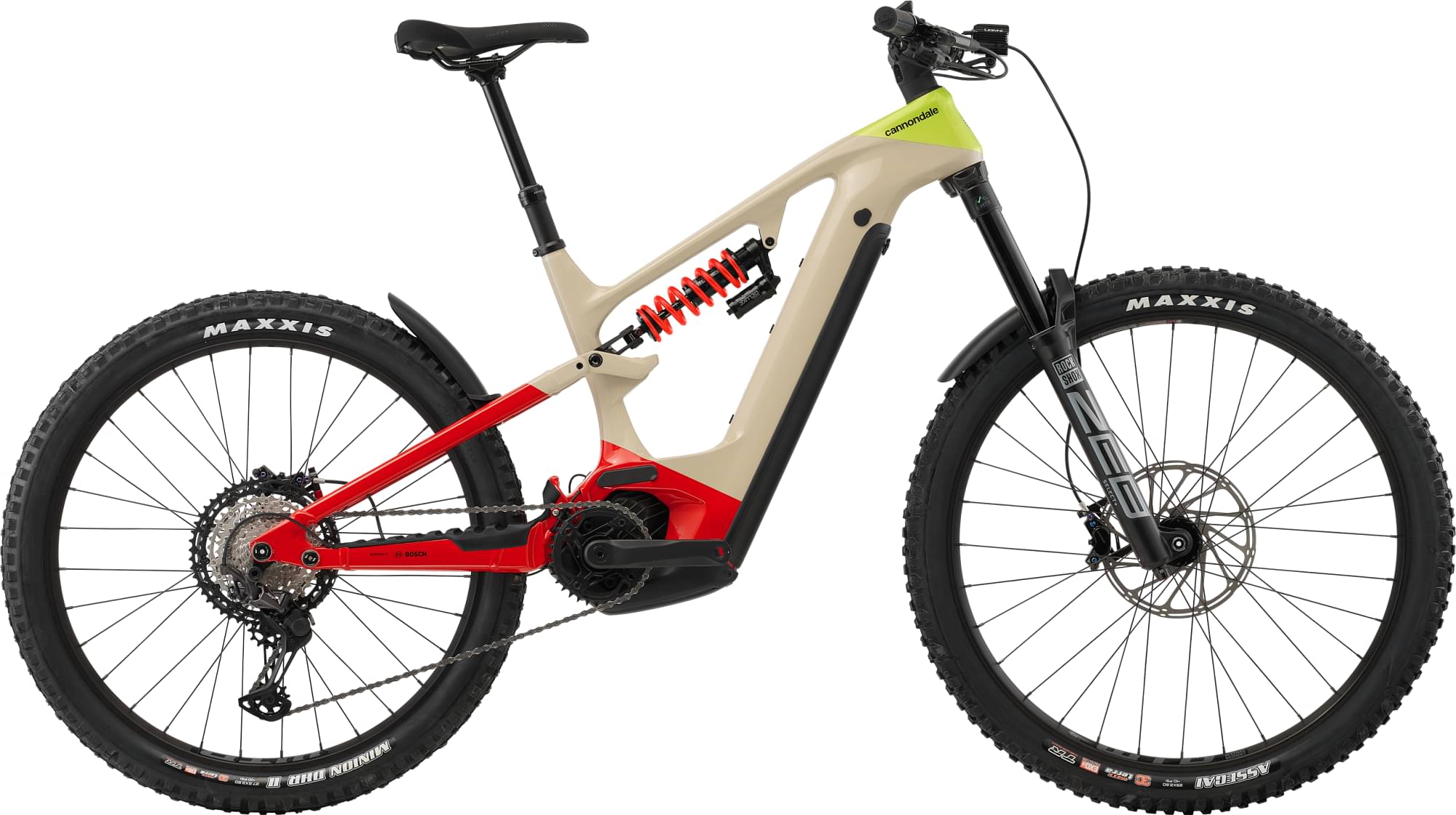

Cannondale Moterra Neo Carbon LT 1 2022
2022 E-bike
Estimate price |
10,321$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 165mm -
Fork RockShox ZEB Select
-
Groupset XT, FSA -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 165cm
MD
167cm - 175cm
LG
172cm - 182cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Moterra Neo Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 165mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount
Suspension Fork
RockShox Zeb Select +, Charger RC, 170mm, DebonAir, 15x110mm, 44mm offset
Rear Shock
RockShox Deluxe Select+, Coil, 2-Pos mode adjust, adjustable rebound
Drivetrain
Rear Derailleur
Shimano XT
Shift Levers
Shimano XT, 12-speed
Cassette
Shimano XT, 10-51, 12-speed
Crank
FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
Bottom Bracket
Bosch, press-fit
Chain
Shimano XT, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) Formula 15x110mm thru-axle / (R) DT Swiss, 12x148mm thru-axle
Rear Hub
(F) Formula 15x110mm thru-axle / (R) DT Swiss, 12x148mm thru-axle
Rims
WTB KOM Trail i30 TCS, 32h, tubeless ready
Spokes
DT Swiss Champion
Tires
(F) Maxxis Assegai, 29 x 2.6", 3C, EXO+, tubeless ready, (R) Maxxis DHR II, 27.5 x 2.6", 3C, EXO+, tubeless ready
Brakes
Brakes
SRAM Code RSC hydraulic disc, 4-piston, CenterLine 220/200mm rotors
Brake Levers
SRAM Code RSC hydraulic disc
Cockpit
Stem
Cannondale 2, 6061 Alloy, 35mm, 0°
Handlebar
HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm
Grips
Fabric FunGuy
Headset
Acros integrated sealed bearing, tapered
Seat
Saddle
Fabric Magic Elite Saddle, cro-mo rails
Seatpost
Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL)
Motor & Battery
Motor
Bosch Performance Line CX 250W
Battery
Bosch PowerTube 750Wh
Remote
Bosch Kiox 300 w/ LED remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 167 cm | 172 cm | 185 cm |
| Rider Max Height | 165 cm | 175 cm | 182 cm | 195 cm |
Model Overview
Moterra Neo Carbon LT 1 is part of the Cannondale E Moterra model. 55 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Cannondale Moterra Neo 5 2022 is the cheapest e-bike model and costs 4458$. Cannondale Moterra Neo Carbon LT 1 2022 is the most expensive one and costs 9555$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Cannondale Moterra Neo Carbon LT 1 price was 9555$. In conclusion, this e-bike price is 99.69% higher than the price of the average Enduro e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Moterra Neo Carbon LT 1 components
Fork
The RockShox ZEB Select is included from the factory. It has a travel distance of 170mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Moterra Neo Carbon LT 1 has a rear shock with a travel of 165mm. The model RockShox Deluxe Select+ is the one installed in this e-bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The wheels on Moterra Neo Carbon LT 1 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Cannondale Moterra Neo Carbon LT 1 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 157 cm – 195 cm (5.15 ft – 6.4 ft). In short, you can easily find one that suits you.
Dropper post
The Cannondale model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
