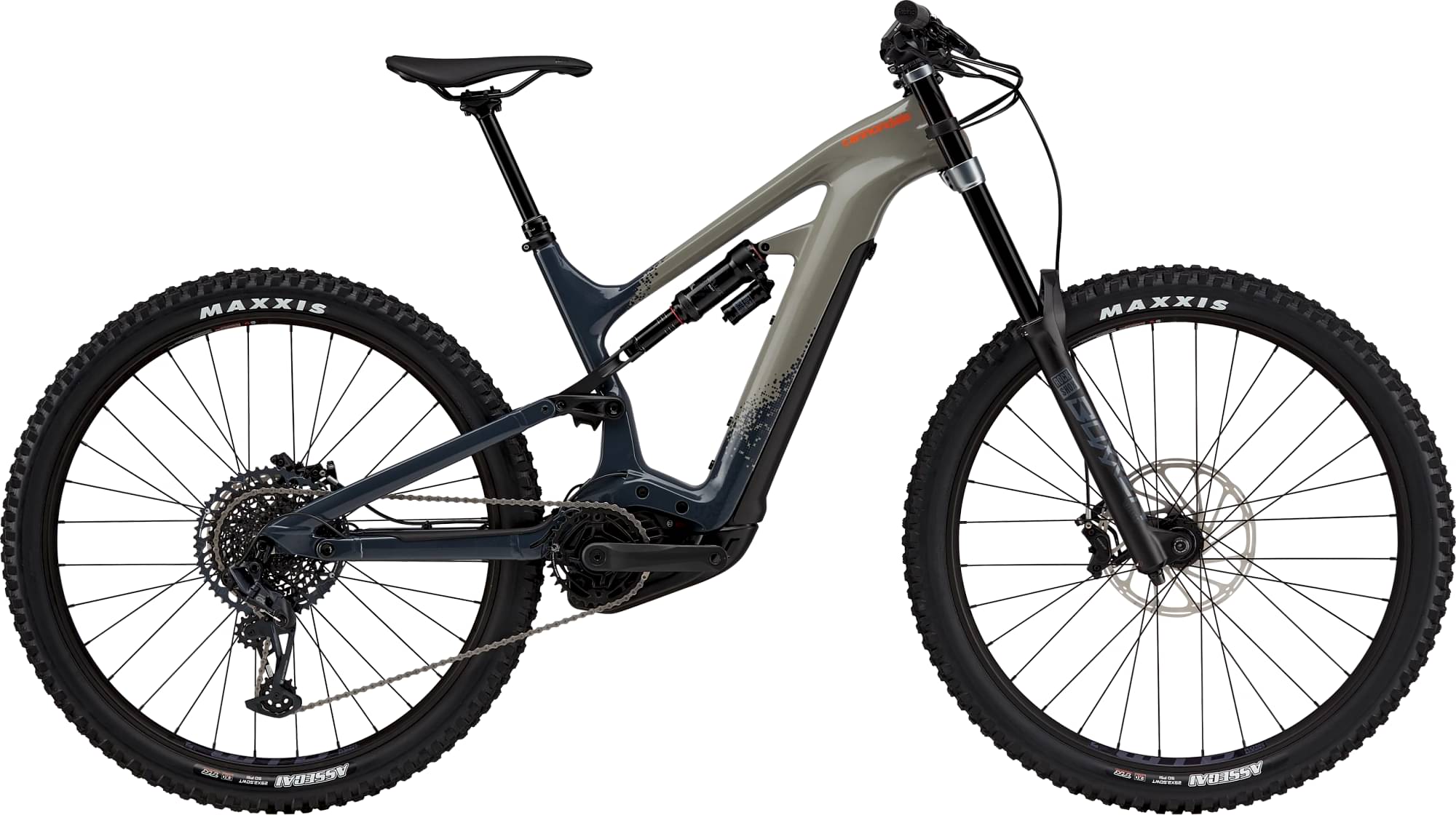

Cannondale Moterra Neo Carbon SE 2023
2023 E-bike
Estimate price |
9,635$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 180mm -
Travel Rear 160mm -
Fork RockShox BoXXer Select
-
Groupset GX Eagle, NX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 625Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 165cm
MD
167cm - 175cm
LG
172cm - 182cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
160mm travel, BallisTec Carbon Front Triangle, SmartForm C1 Alloy Swingarm, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, Ai offset drivetrain, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube
Suspension Fork
RockShox Boxxer Select Charger RC, 180mm, DebonAir, 20x110, 56mm offset
Rear Shock
RockShox Super Deluxe Select
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM NX Eagle, single click, 12-speed
Cassette
SRAM XG-1275 Eagle, 10-52, 12-speed
Crank
FSA Bosch E-bike w/ custom Ai offset, 160mm, 34T
Bottom Bracket
Cannondale AI, 83mm, press-fit
Chain
SRAM NX Eagle, 12-speed
Pedals
Not included
Wheels
Front Hub
Formula, 20x110mm Boost
Rear Hub
SRAM MTH 700, 12x148, XD Driver
Rims
WTB KOM Trail i30 TCS, 32h, tubeless ready
Spokes
DT Swiss Champion
Tires
Maxxis Assegai, 27.5/29x2.5", Dual compound, EXO puncture protection, tubeless ready
Brakes
Brakes
SRAM Code R hydraulic disc, 4-piston, CenterLine 200/200mm rotors
Brake Levers
SRAM Code R hydraulic disc
Cockpit
Stem
Cannondale 1, 3D Forged 6061 Alloy, 1-1/8", 31.8, 7°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Fabric FunGuy
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Fabric Scoop Shallow Sport, steel rails
Seatpost
Cannondale DownLow Dropper, internal routing, 31.6, 100mm (S), 125mm (M), 150mm (L-XL)
Motor & Battery
Motor
Bosch Performance Line CX 250W
Battery
Bosch PowerTube, 625Wh
Charger
Bosch 4A
Fit data

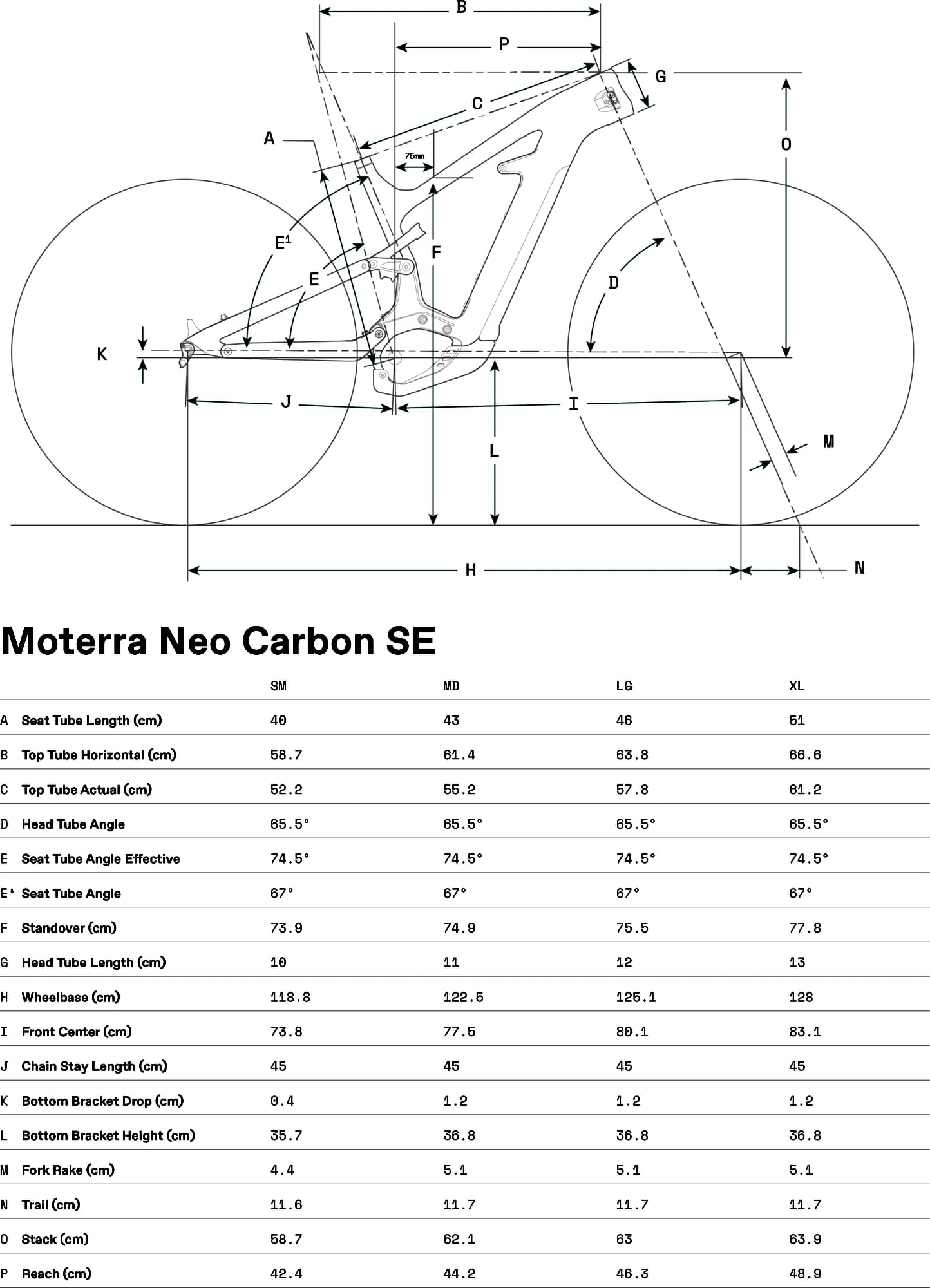

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.444 mm | 1.44 mm | 1.378 mm | 1.301 mm |
| Bottom Bracket Height | 355 mm | 355 mm | 355 mm | 355 mm |
| Front Center | 725 mm | 746 mm | 771 mm | 801 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 111 mm | 107 mm | 107 mm | 107 mm |
| Stack | 598 mm | 612 mm | 623 mm | 623 mm |
| Reach | 414 mm | 425 mm | 452 mm | 479 mm |
| Top Tube Length | 574 mm | 601 mm | 631 mm | 658 mm |
| Seat Tube Angle | 74.8 ° | 73.9 ° | 73.9 ° | 73.9 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66.5 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 122 mm | 134 mm | 134 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1170 mm | 1191 mm | 1216 mm | 1245 mm |
| Standover Height | 751 mm | 761 mm | 765 mm | 768 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 167 cm | 172 cm | 185 cm |
| Rider Max Height | 165 cm | 175 cm | 182 cm | 195 cm |
Model Overview
Moterra Neo Carbon SE completes the Cannondale E Moterra model. There are 55 e-bikes that carry this model name. You can easily view all of the Cannondale E Moterra e-bikes models from 2023, here.
Model range prices
Cannondale Moterra Neo 5 2023 is the most economical model, with a starting price of 4550$. Cannondale Moterra Neo Carbon SE 2023 on the other hand costs 8758$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Downhill e-bikes
According to our calculations, the average cost of a Downhill e-bike that is reliable is 5530$. However, even if your budget is less than the average, you might still be able to get a top-quality Downhill e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Cannondale Moterra Neo Carbon SE price was 8758$. Doing a quick comparison, we notice that Moterra Neo Carbon SE price is 58.37% more expensive than the average cost of a Downhill e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The Moterra Neo Carbon SE comes factory-installed with the RockShox BoXXer Select fork. This has a travel range of 180mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Moterra Neo Carbon SE has a rear shock with a travel of 160mm. The model RockShox Super Deluxe Select is the one installed in this e-bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the Moterra Neo Carbon SE e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Cannondale Moterra Neo Carbon SE has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 157 cm – 195 cm (5.15 ft – 6.4 ft). In short, you can easily find one that suits you.
Dropper post
Cannondale Moterra Neo Carbon SE includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
