Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 170cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
182cm - 195cm
XXL
193cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C3 Alloy, SAVE, tapered head tube, Straightshot hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity
Suspension Fork
Suntour NEX-E25, 63mm, tapered alloy steerer, coil, remote lockout, custom crown
Drivetrain
Rear Derailleur
SX Eagle
Shift Levers
SRAM SX Eagle, 12-speed
Cassette
SRAM SX Eagle, 11-50, 12-speed
Crank
SRAM SX Eagle Power Spline, 38T
Bottom Bracket
Truvativ Power Spline
Chain
SRAM SX Eagle, 12-speed
Pedals
Cannondale Platform
Wheels
Front Hub
Sealed Alloy Disc, QR
Rear Hub
Sealed Alloy Disc, QR
Rims
RD 3.0, double wall w/eyelet, 32h
Spokes
Stainless Steel, 14g
Tires
Vittoria Terreno Dry, 700x40c, reflective strip
Brakes
Brakes
(F) Tektro HD-T275 hydraulic disc, 160mm rotor / (R) Tektro HD-R280 hydraulic disc, 160mm rotor
Brake Levers
Tektro hydraulic disc
Cockpit
Stem
Cannondale 3 with Intellimount, Alloy, 31.8mm clamp
Handlebar
Cannondale 3, 6061 Alloy Double-butted, 20mm rise, 9° back, 700mm
Grips
Fabric FunGuy
Headset
Semi-Integrated, Tapered
Seat
Saddle
Cannondale Fitness Ergo Double Density
Seatpost
Cannondale 3, 6061 Alloy, 27.2x350mm
Fit data

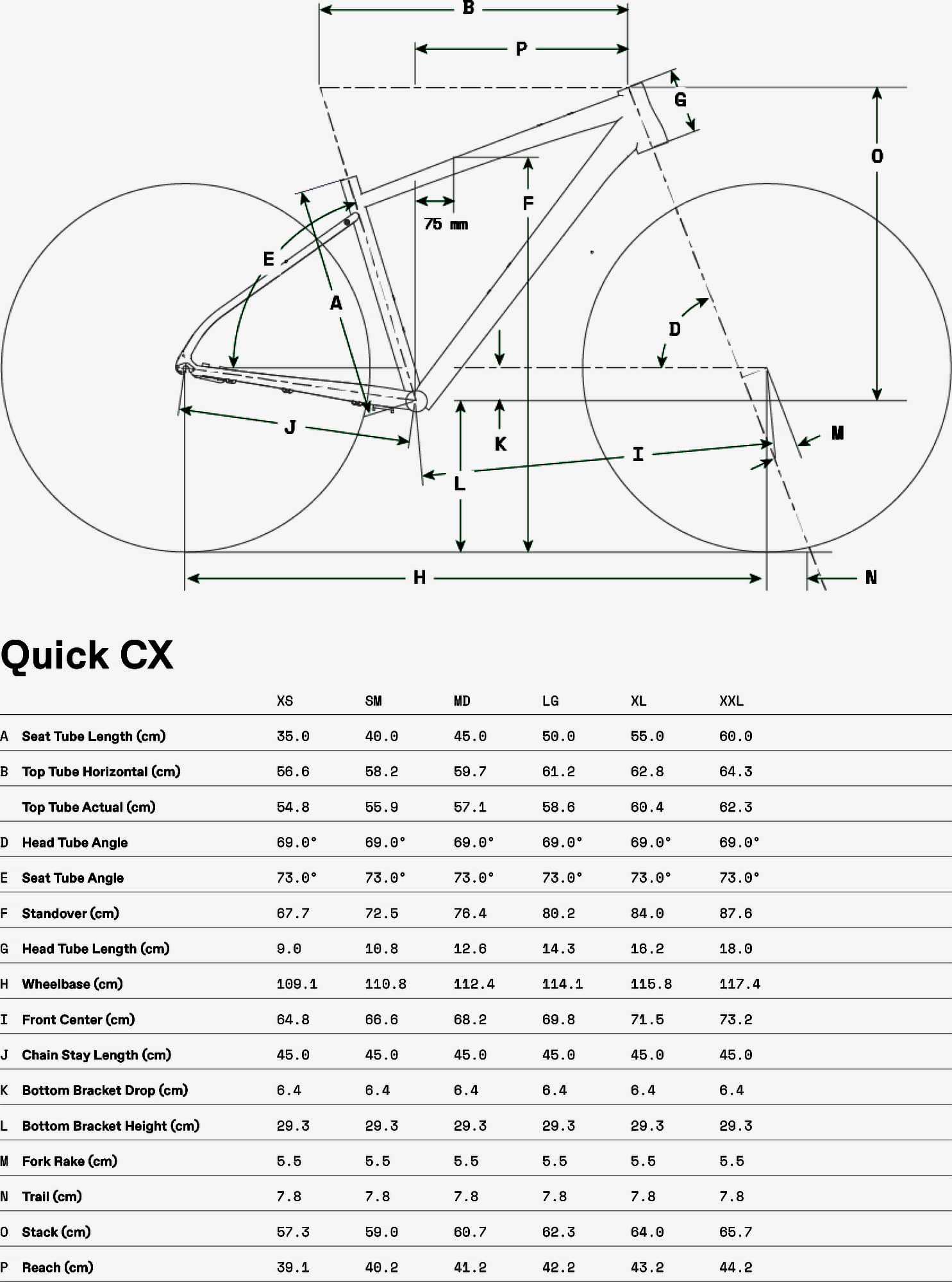

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 175 cm | 182 cm | 193 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 195 cm | 205 cm |
About this model
Quick CX 1 completes the Cannondale Quick model. There are 197 bikes that carry this model name. Take a sneak peek at all Cannondale Quick bikes models from 2023, by clicking here.
Model range prices
Cannondale Kids Quick 20 Girl’s 2023 is the most economical model, with a starting price of 435$. Cannondale Quick 1 2023 on the other hand costs 1625$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Fitness bikes
If you want to purchase a solid Fitness bike, it is important to know that the average cost is 656$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Cannondale released this model in 2023, its price was 1500$. In conclusion, this bike price is 128.66% more expensive than the price of the average Fitness bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Quick CX 1 components
Fork
This bike has the Suntour NEX fork installed. The fork’s travel is 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
When leaving the production line, the Quick CX 1 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Cannondale Quick CX 1 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Cannondale Quick CX 1 bike has 5 sizes, in the range of 157 cm – 205 cm (5.15 ft – 6.73 ft). In conclusion, it won’t take much to find one that’s right for you.
