Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset microSHIFT -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
157cm - 170cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
182cm - 195cm
XXL
193cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C3 Alloy, SAVE, tapered head tube, Straightshot hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity
Suspension Fork
Suntour NEX-E25, 63mm, coil, custom crown
Drivetrain
Rear Derailleur
microSHIFT M26L
Front Derailleur
microSHIFT Dual Pull Compact, Band Clamp
Shift Levers
microSHIFT, 3x7-speed
Cassette
Sunrace, 14-34, 7-speed
Crank
Prowheel, 48/38/28
Bottom Bracket
Cartridge, square taper
Chain
KMC Z7, 7-speed
Pedals
Cannondale Platform
Wheels
Front Hub
Alloy, Sealed, QR
Rear Hub
Alloy, Sealed, QR
Rims
DC 4.0, double wall w/eyelet, 32h
Spokes
Stainless Steel, 14g
Tires
Vittoria Terreno Dry, 700x40c, reflective strip
Brakes
Brakes
Promax mechanical disc, 160/160mm rotors
Brake Levers
Promax
Cockpit
Stem
6061 Alloy, 31.8, 8°
Handlebar
Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 700mm
Grips
Cannondale Dual-Density
Headset
Semi-Integrated, Tapered
Seat
Saddle
Cannondale Fitness Ergo Double Density
Seatpost
6061 Alloy, 27.2x350mm
Fit data

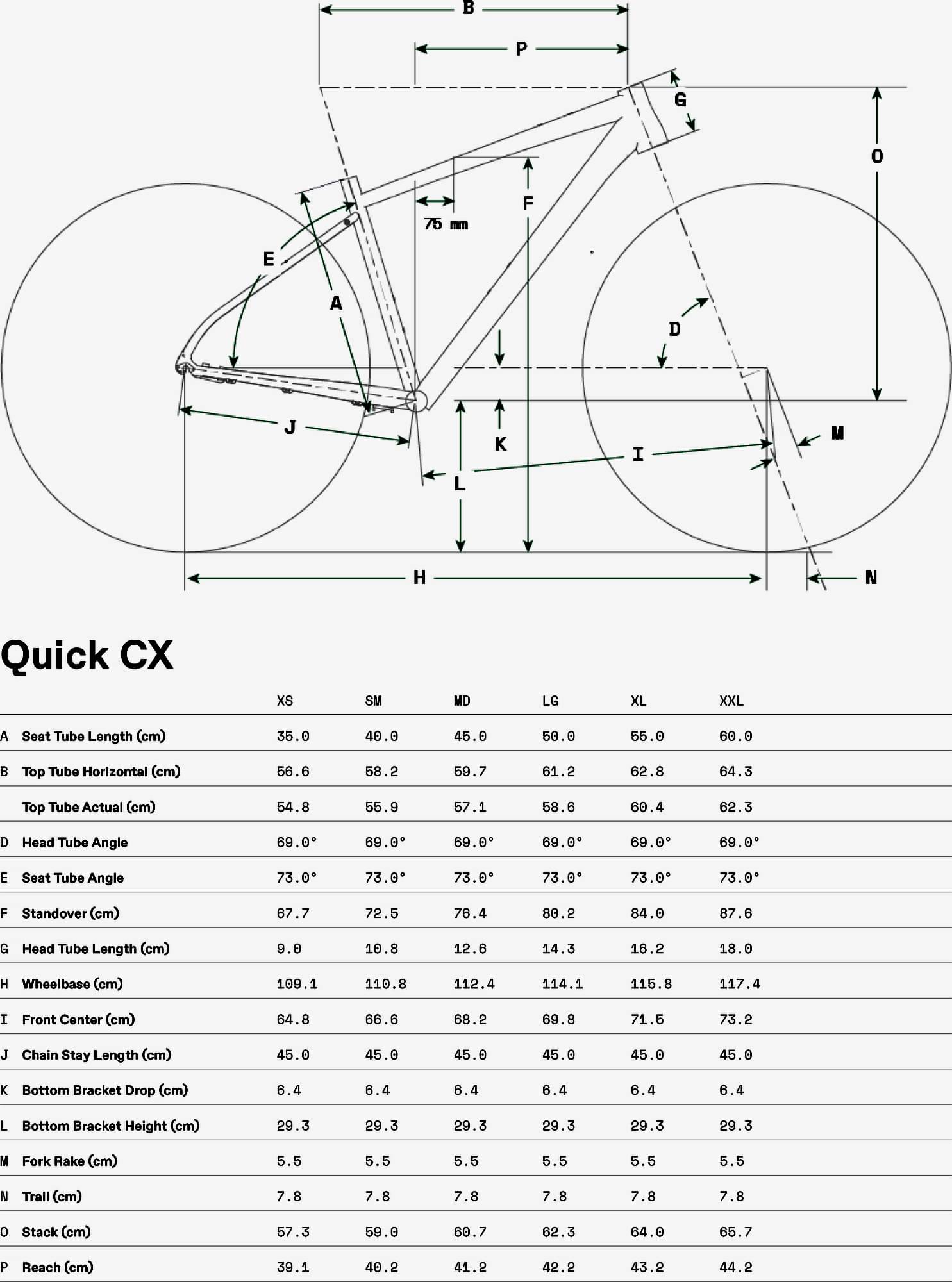

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 175 cm | 182 cm | 193 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 195 cm | 205 cm |

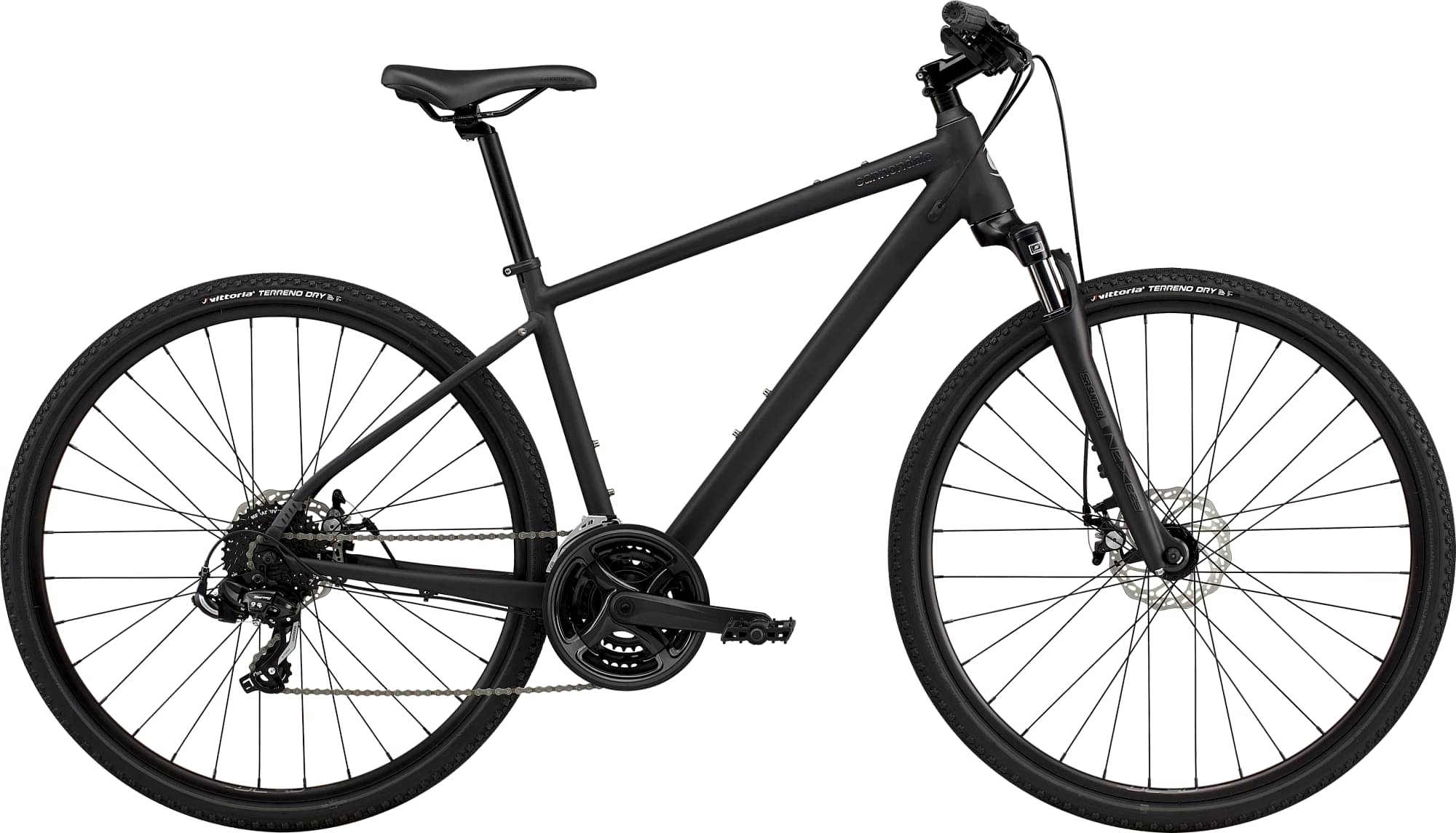

Model Overview
Quick CX 4 is a Cannondale Quick model. Cannondale released 197 bikes variations of this model so far. You can easily view all of the Cannondale Quick bikes models from 2023, here.
Model range prices
Cannondale Kids Quick 20 Girl’s 2023 is the cheapest bike model and costs 435$. Cannondale Quick 1 2023 is the most expensive one and costs 1625$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Fitness bikes
If you want an acceptable Fitness bike you should know that the average price is 656$. However, you could also get a good Fitness bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Cannondale released this model in 2023, its price was 735$. Comparing the average cost of a Fitness bike to this one, you will see that Quick CX 4 price is 12.04% higher.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The Quick CX 4 comes factory-installed with the Suntour NEX fork. This has a travel range of 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the Quick CX 4 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
This bike is available in 5 sizes. They vary from 157 cm – 205 cm (5.15 ft – 6.73 ft). In short, you can easily find one that suits you.
