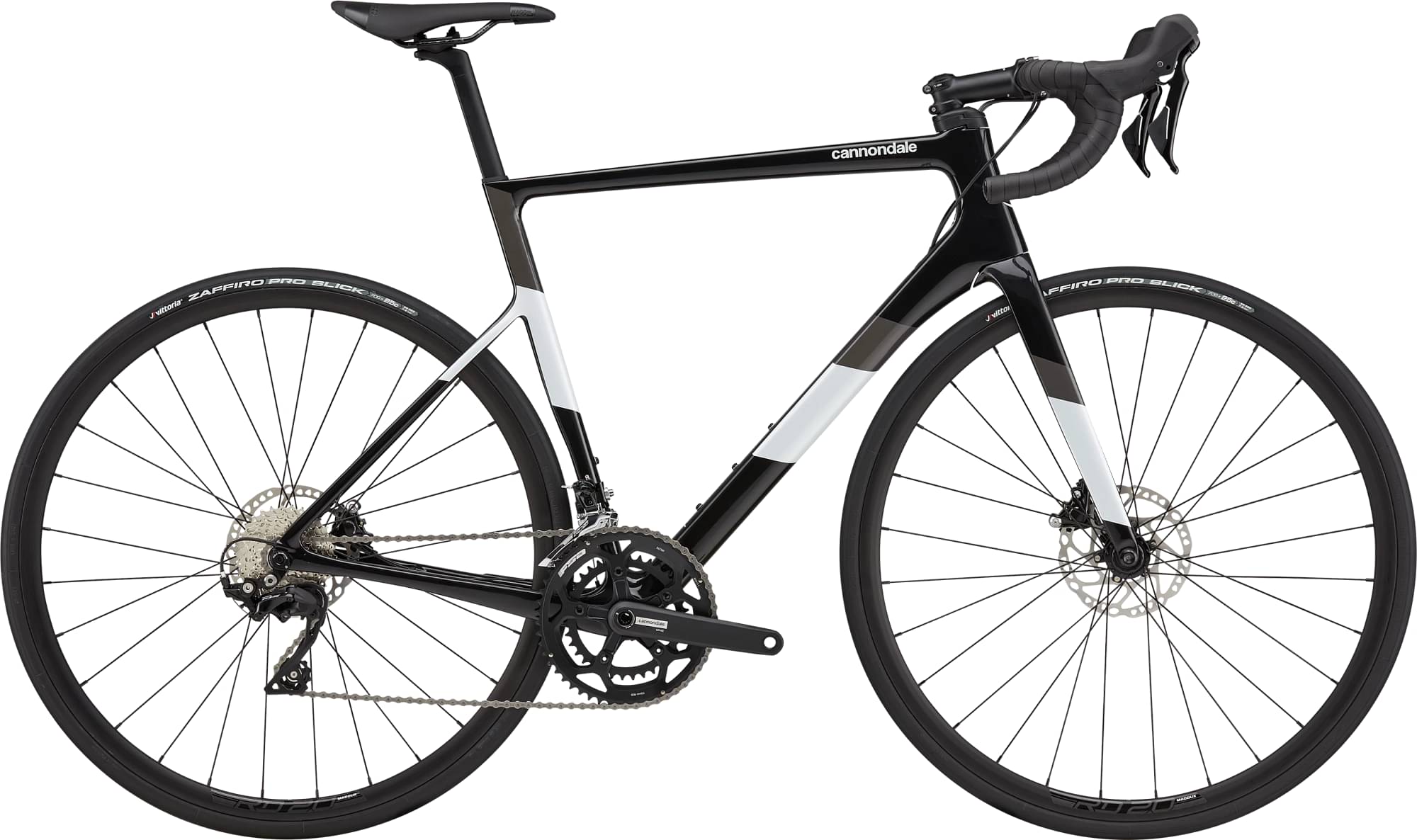

Cannondale SuperSix EVO Carbon Disc 105 2022
2022 Road
Estimate price |
3,898$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
44cm
157cm - 165cm
48cm
160cm - 170cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
177cm - 185cm
58cm
182cm - 193cm
60cm
188cm - 198cm
62cm
195cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SuperSix EVO Carbon, integrated cable routing w/ Switchplate, 12x142 Speed Release thru-axle, SAVE, PF30a, flat mount disc, integrated seat binder
Suspension Fork
SuperSix EVO Carbon, SAVE, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" steerer and 55mm offset (44-54cm), 1/8" to 1-3/8” steerer and 45mm offset (56-62cm)
Drivetrain
Rear Derailleur
Shimano 105 GS
Front Derailleur
Shimano 105, braze-on
Shift Levers
Shimano 105, 11-speed
Cassette
Shimano 105, 11-30, 11-speed
Crank
Cannondale 1, BB30a, 52/36
Bottom Bracket
Cannondale Alloy PressFit30
Chain
Shimano HG601, 11-speed
Pedals
Not included
Wheels
Front Hub
Formula CL-712, 12x100 centerlock
Rear Hub
Formula RXC-400, 12x142 centerlock
Rims
Cannondale RD 2.0 Disc, double wall w/ eyelet, 28h
Spokes
Stainless Steel, 14g
Tires
Vittoria Zaffiro Pro Slick, 700 x 25c
Brakes
Brakes
Shimano 105 hydraulic disc, 160/160mm RT64 rotors
Brake Levers
Shimano 105
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 3, 6061 Alloy, Compact
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1-1/8" - 1-1/4" (44-54cm), 1-1/8" - 1-3/8" (56-62cm)
Seat
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
HollowGram 27 KNØT, Alloy, 2 bolt clamp, 330mm, 15mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 51cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.362 mm | 1.388 mm | 1.413 mm | 1.443 mm | 1.472 mm | 1.504 mm | 1.535 mm | 1.562 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 271 mm | 271 mm | 273 mm | 273 mm | 273 mm |
| Front Center | 582 mm | 588 mm | 597 mm | 611 mm | 595 mm | 607 mm | 618 mm | 630 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 60 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Stack | 504 mm | 519 mm | 534 mm | 554 mm | 574 mm | 594 mm | 614 mm | 634 mm |
| Reach | 370 mm | 374 mm | 378 mm | 384 mm | 390 mm | 395 mm | 400 mm | 406 mm |
| Top Tube Length | 512 mm | 520 mm | 528 mm | 546 mm | 562 mm | 578 mm | 594 mm | 611 mm |
| Seat Tube Angle | 74.3 ° | 74.3 ° | 74.3 ° | 73.7 ° | 73.3 ° | 72.9 ° | 72.5 ° | 72.1 ° |
| Seat Tube Length | 400 mm | 438 mm | 477 mm | 515 mm | 536 mm | 558 mm | 579 mm | 600 mm |
| Head Tube Angle | 70.9 ° | 71.2 ° | 71.2 ° | 71.2 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 99 mm | 114 mm | 130 mm | 153 mm | 164 mm | 188 mm | 209 mm | 230 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheelbase | 979 mm | 985 mm | 994 mm | 1000 mm | 992 mm | 1005 mm | 1016 mm | 1028 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 74 mm | 72 mm | 72 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 160 cm | 165 cm | 170 cm | 177 cm | 182 cm | 188 cm | 195 cm |
| Rider Max Height | 165 cm | 170 cm | 175 cm | 180 cm | 185 cm | 193 cm | 198 cm | 205 cm |
Model Overview
SuperSix EVO Carbon Disc 105 is part of the Cannondale Supersix model. Cannondale released 148 bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Cannondale SuperSix EVO Carbon Ultegra 2 2022 is the most affordable bike of this model and has a price of 1645$. On the other hand, Cannondale SuperSix EVO Hi-MOD Disc Dura-Ace Di2 2022, is the most expensive and costs 12740$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Race bikes average price
Our math shows that the average cost of a dependable Race bike is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 3609$. Doing a quick comparison, we notice that SuperSix EVO Carbon Disc 105 price is 7.73% more expensive than the average cost of a Race bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
SuperSix EVO Carbon Disc 105 components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Cannondale SuperSix EVO Carbon Disc 105 2022, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Cannondale SuperSix EVO Carbon Disc 105 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 8 sizes. They vary from 157 cm – 205 cm (5.15 ft – 6.73 ft). In short, it won’t be difficult to find the right one for you.
