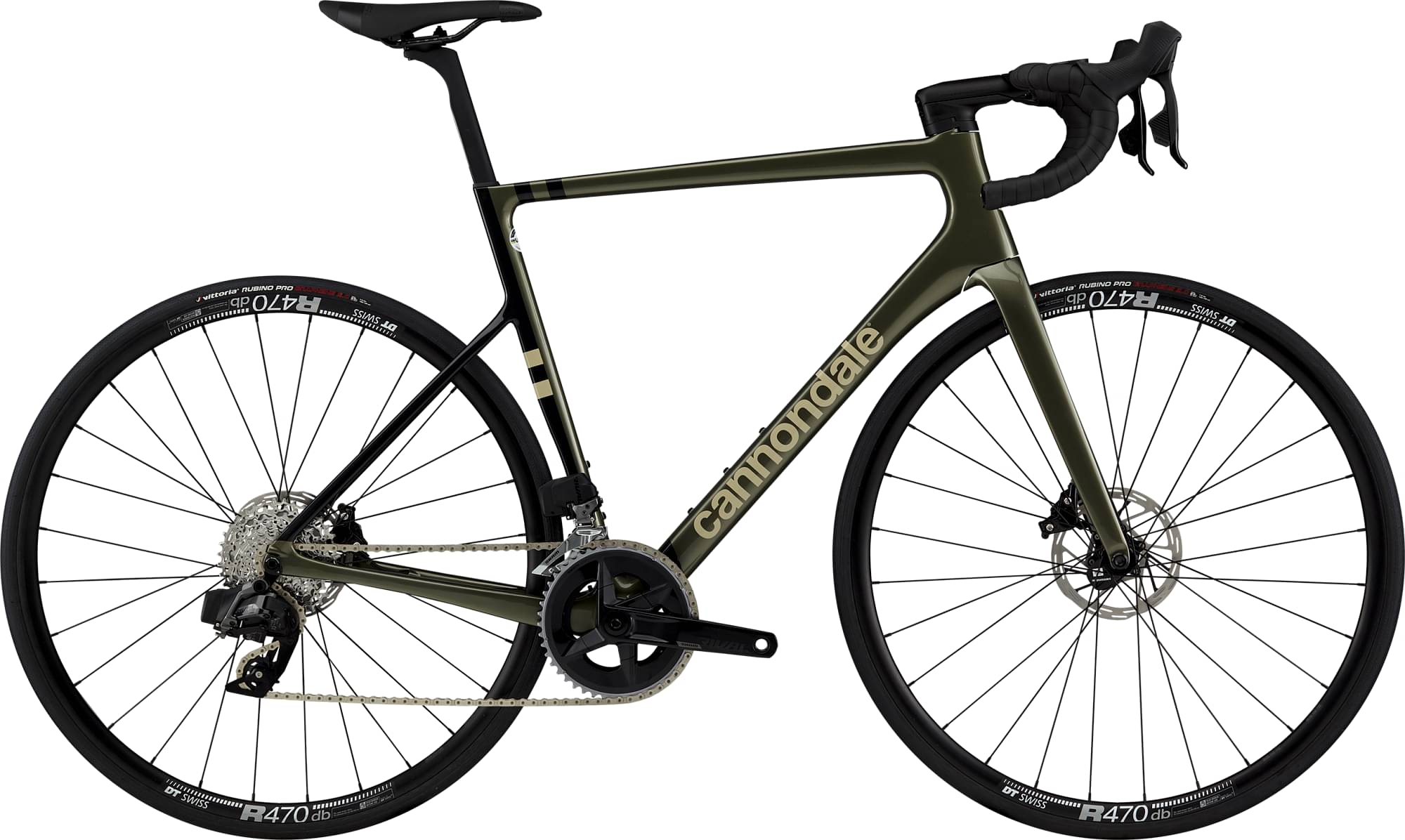

Cannondale SuperSix EVO Carbon Disc Rival AXS 2023
2023 Road
Estimate price |
4,650$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
44cm
157cm - 165cm
48cm
160cm - 170cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
177cm - 185cm
58cm
182cm - 193cm
60cm
188cm - 198cm
62cm
195cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SuperSix EVO Carbon, integrated cable routing w/ Switchplate, 12x142 Speed Release thru-axle, SAVE, PF30a, flat mount disc, integrated seat binder
Suspension Fork
SuperSix EVO Carbon, SAVE, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" steerer and 55mm offset (44-54cm), 1-1/8" to 1-3/8” steerer and 45mm offset (56-62cm)
Drivetrain
Rear Derailleur
SRAM Rival eTap AXS
Front Derailleur
SRAM Rival eTap AXS, braze-on
Shift Levers
SRAM Rival eTap AXS HRD
Cassette
SRAM Rival XG-1250, 10-36, 12-speed
Crank
SRAM Rival DUB X-Range, 46/33
Bottom Bracket
SRAM DUB PF30A Road 73mm
Chain
SRAM Rival, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-400, 12x142mm centerlock
Rear Hub
(F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-400, 12x142mm centerlock
Rims
DT Swiss R470 DB, 28h
Spokes
Stainless Steel, 14g
Tires
Vittoria Rubino Pro Bright Black, 700x25c
Brakes
Brakes
SRAM Rival hydraulic disc, 160/160mm Paceline rotors
Brake Levers
SRAM Rival eTap AXS HRD
Cockpit
Stem
HollowGram KNØT, Alloy w/ cable cover, -6°
Handlebar
HollowGram SAVE SystemBar, Carbon, 8 deg. pitch adjust
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1-1/8" - 1-1/4" (44-54cm), 1-1/8" - 1-3/8" (56-62cm)
Seat
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
HollowGram 27 SL KNØT, Carbon, 2 bolt clamp, 330mm, 0mm offset (44-48cm), 15mm offset (51-62cm)
Fit data

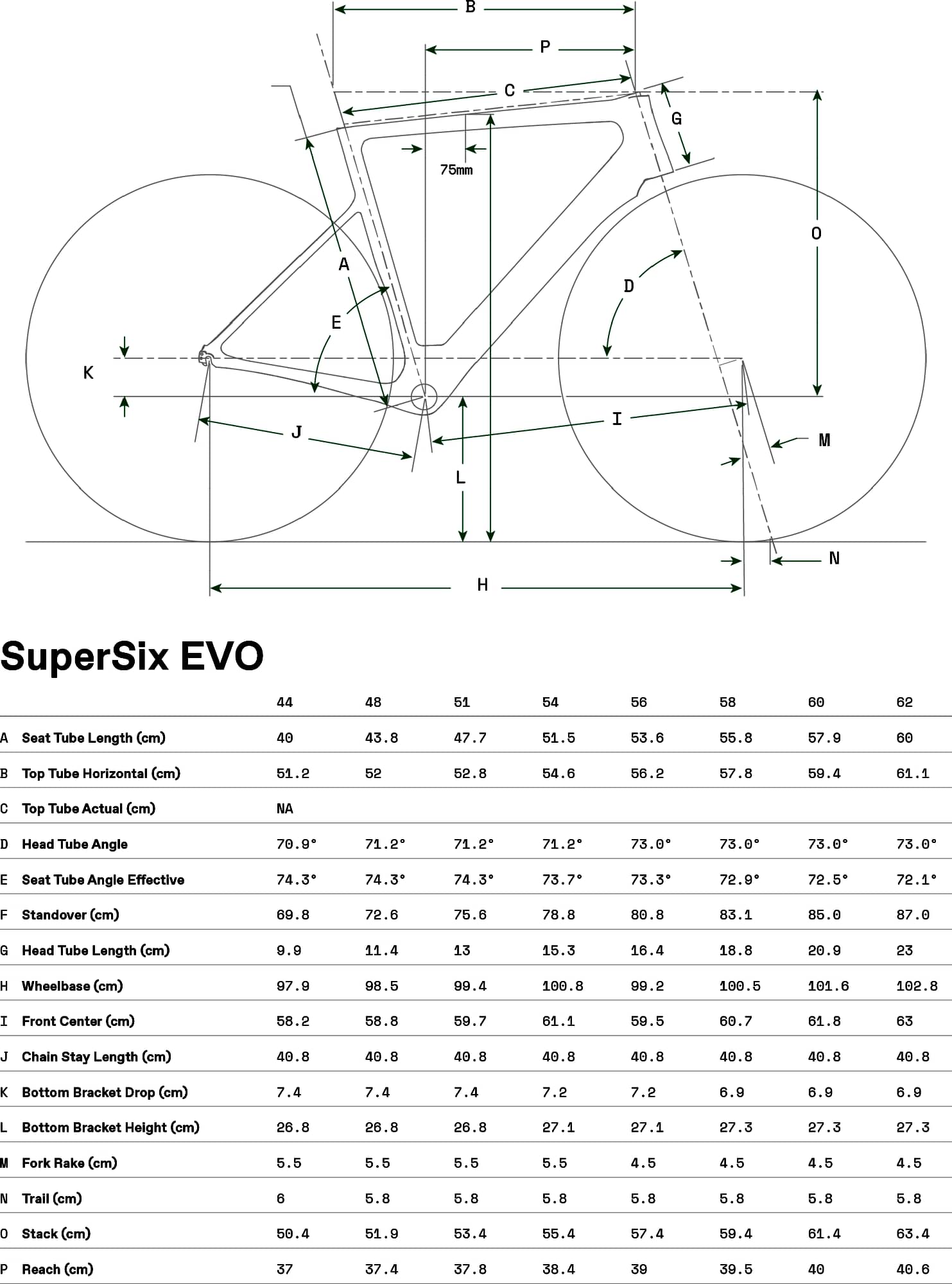

Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 51cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.362 mm | 1.388 mm | 1.413 mm | 1.443 mm | 1.472 mm | 1.504 mm | 1.535 mm | 1.562 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 271 mm | 271 mm | 273 mm | 273 mm | 273 mm |
| Front Center | 582 mm | 588 mm | 597 mm | 611 mm | 595 mm | 607 mm | 618 mm | 630 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 60 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Stack | 504 mm | 519 mm | 534 mm | 554 mm | 574 mm | 594 mm | 614 mm | 634 mm |
| Reach | 370 mm | 374 mm | 378 mm | 384 mm | 390 mm | 395 mm | 400 mm | 406 mm |
| Top Tube Length | 512 mm | 520 mm | 528 mm | 546 mm | 562 mm | 578 mm | 594 mm | 611 mm |
| Seat Tube Angle | 74.3 ° | 74.3 ° | 74.3 ° | 73.7 ° | 73.3 ° | 72.9 ° | 72.5 ° | 72.1 ° |
| Seat Tube Length | 400 mm | 438 mm | 477 mm | 515 mm | 536 mm | 558 mm | 579 mm | 600 mm |
| Head Tube Angle | 70.9 ° | 71.2 ° | 71.2 ° | 71.2 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 99 mm | 114 mm | 130 mm | 153 mm | 164 mm | 188 mm | 209 mm | 230 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheelbase | 979 mm | 985 mm | 994 mm | 1000 mm | 992 mm | 1005 mm | 1016 mm | 1028 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 74 mm | 72 mm | 72 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 160 cm | 165 cm | 170 cm | 177 cm | 182 cm | 188 cm | 195 cm |
| Rider Max Height | 165 cm | 170 cm | 175 cm | 180 cm | 185 cm | 193 cm | 198 cm | 205 cm |
About this model
SuperSix EVO Carbon Disc Rival AXS completes the Cannondale Supersix model. Cannondale launched 148 bikes of this model so far. You can easily view all of the Cannondale Supersix bikes models from 2023, here.
Model range prices
Cannondale SuperSix EVO Carbon 105 2023 is the cheapest bike model and costs 1293$. Cannondale SuperSix EVO LAB71 2023 is the most expensive one and costs 15000$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 4650$. If we compare this with the average Race bike cost we notice that the price is 38.81% higher.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
SuperSix EVO Carbon Disc Rival AXS has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Cannondale SuperSix EVO Carbon Disc Rival AXS 2023, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cannondale SuperSix EVO Carbon Disc Rival AXS is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
SuperSix EVO Carbon Disc Rival AXS comes in 8 sizes, that range from 157 cm – 205 cm (5.15 ft – 6.73 ft). In short, it won’t be difficult to find the right one for you.
