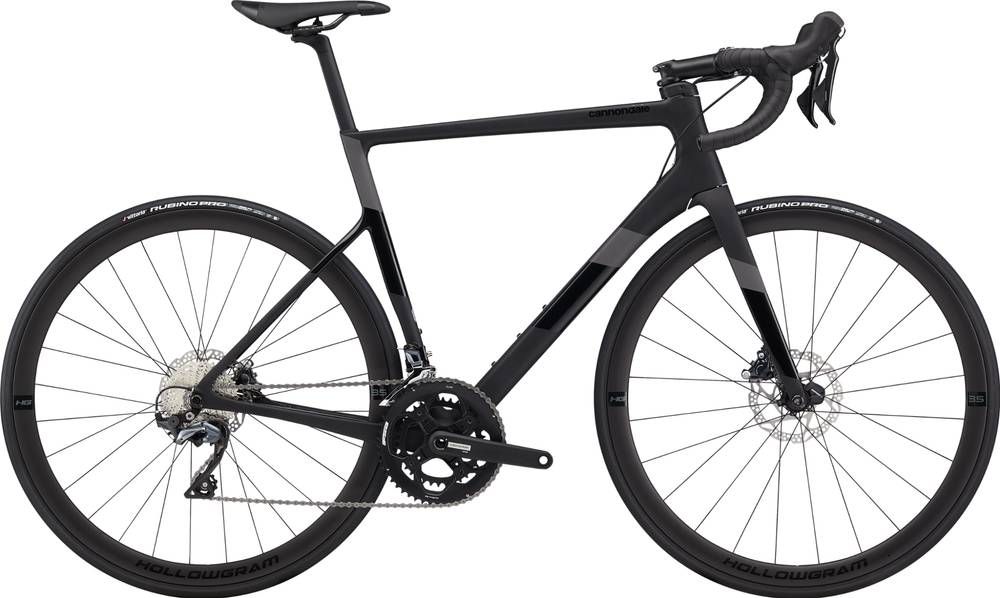

Cannondale SuperSix EVO Carbon Disc Ultegra 2020

Bike details

Overview

Key information split into simple groups.

Bike summary

Category
- Road
- |
- Race
Frame Carbon
Wheels 700c
Groupset Ultegra, FSA
Suspension Rigid
Drivetrain 2 × 11
Brakes Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

All-New, BallisTec Carbon, integrated cable routing w/ Switchplate, 142x12 Speed Release thru-axle, SAVE, PF30a, flat mount disc, integrated seat binder, Integrated cable routing w/ Switchplate, 142x12 Speed Release thru-axle, SAVE, PF30a, Flat mount disc, Integrated seat binder

Suspension Fork

BallisTec Carbon, SAVE, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" steerer and 55mm offset (44-54cm), 1/8" to 1-3/8” steerer and 45mm offset (56-62cm)

Drivetrain

Rear Derailleur

Shimano Ultegra GS

Front Derailleur

Shimano Ultegra, braze-on

Shift Levers

Shimano Ultegra hydro disc, 2x11

Cassette

Shimano 105, 11-32, 11-speed

Crank

Cannondale 1, BB30a, FSA rings, 52/36

Bottom Bracket

Cannondale Alloy PressFit30

Chain

Shimano HG601, 11-speed

Pedals

Not Included

Wheels

Front Hub

HollowGram Sealed Bearing, straight pull, 12x100

Rear Hub

HollowGram Sealed Bearing, straight pull, 12x142

Rims

HollowGram Si, Carbon Clincher Disc, 19mm inner, 35mm deep, tubeless ready

Spokes

Formula Grand Forza

Tires

Vittoria Rubino Pro Bright Black, 700 x 25c

Brakes

Shimano Ultegra hydro disc, 160/160mm RT54 rotors

Brake Levers

Shimano Ultegra hydro disc

Cockpit

Stem

Cannondale 2, 6061 Alloy, 31.8, 7°

Handlebar

Cannondale 2, 7050 Alloy, Compact

Grips

Cannondale Grip Bar Tape w/Gel, 3.5mm

Headset

SuperSix, 1-1/4" lower bearing, 25mm top cap

Seat

Saddle

Prologo Nago RS STN

Seatpost

All-New HollowGram 27 KNØT, Alloy, 2 bolt clamp, 330mm

Fit data

Geometry

Numbers for sizing and ride feel.

Size	44cm	48cm	51cm	54cm	56cm	58cm	60cm	62cm	44cm	48cm	51cm	54cm	56cm	58cm	60cm	62cm
Stack Reach Ratio	1.362 mm	1.388 mm	1.413 mm	1.443 mm	1.472 mm	1.504 mm	1.535 mm	1.562 mm	1.362 mm	1.388 mm	1.413 mm	1.443 mm	1.472 mm	1.504 mm	1.535 mm	1.562 mm
Bottom Bracket Height	268 mm	268 mm	268 mm	271 mm	271 mm	273 mm	273 mm	273 mm	268 mm	268 mm	268 mm	271 mm	271 mm	273 mm	273 mm	273 mm
Front Center	582 mm	588 mm	597 mm	611 mm	595 mm	607 mm	618 mm	630 mm	582 mm	588 mm	597 mm	611 mm	595 mm	607 mm	618 mm	630 mm
Rake	55 mm	55 mm	55 mm	55 mm	45 mm	45 mm	45 mm	45 mm	55 mm	55 mm	55 mm	55 mm	45 mm	45 mm	45 mm	45 mm
Trail	60 mm	58 mm	58 mm	58 mm	58 mm	58 mm	58 mm	58 mm	60 mm	58 mm	58 mm	58 mm	58 mm	58 mm	58 mm	58 mm
Stack	504 mm	519 mm	534 mm	554 mm	574 mm	594 mm	614 mm	634 mm	504 mm	519 mm	534 mm	554 mm	574 mm	594 mm	614 mm	634 mm
Reach	370 mm	374 mm	378 mm	384 mm	390 mm	395 mm	400 mm	406 mm	370 mm	374 mm	378 mm	384 mm	390 mm	395 mm	400 mm	406 mm
Top Tube Length	512 mm	520 mm	528 mm	546 mm	562 mm	578 mm	594 mm	611 mm	512 mm	520 mm	528 mm	546 mm	562 mm	578 mm	594 mm	611 mm
Seat Tube Angle	74.3 °	74.3 °	74.3 °	73.7 °	73.3 °	72.9 °	72.5 °	72.1 °	74.3 °	74.3 °	74.3 °	73.7 °	73.3 °	72.9 °	72.5 °	72.1 °
Seat Tube Length	400 mm	438 mm	477 mm	515 mm	536 mm	558 mm	579 mm	600 mm	400 mm	438 mm	477 mm	515 mm	536 mm	558 mm	579 mm	600 mm
Head Tube Angle	70.9 °	71.2 °	71.2 °	71.2 °	73 °	73 °	73 °	73 °	70.9 °	71.2 °	71.2 °	71.2 °	73 °	73 °	73 °	73 °
Head Tube Length	99 mm	114 mm	130 mm	153 mm	164 mm	188 mm	209 mm	230 mm	99 mm	114 mm	130 mm	153 mm	164 mm	188 mm	209 mm	230 mm
Chainstay Length	408 mm	408 mm	408 mm	408 mm	408 mm	408 mm	408 mm	408 mm	408 mm	408 mm	408 mm	408 mm	408 mm	408 mm	408 mm	408 mm
Wheelbase	979 mm	985 mm	994 mm	1000 mm	992 mm	1005 mm	1016 mm	1028 mm	979 mm	985 mm	994 mm	1000 mm	992 mm	1005 mm	1016 mm	1028 mm
Bottom Bracket Drop	74 mm	74 mm	74 mm	72 mm	72 mm	69 mm	69 mm	69 mm	74 mm	74 mm	74 mm	72 mm	72 mm	69 mm	69 mm	69 mm
Standover Height	698 mm	726 mm	756 mm	788 mm	808 mm	831 mm	850 mm	870 mm	698 mm	726 mm	756 mm	788 mm	808 mm	831 mm	850 mm	870 mm
Wheels	700	700	700	700	700	700	700	700	700	700	700	700	700	700	700	700

Model Overview

SuperSix EVO Carbon Disc Ultegra is part of the Cannondale Supersix model. Cannondale released 148 bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.

Model range prices

Cannondale SuperSix EVO 105 2020 is the most affordable bike of this model and has a price of 1900$. On the other hand, Cannondale SuperSix EVO Hi-MOD Disc Dura Ace Di2 2020, is the most expensive and costs 11500$.

Safety

Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.

Average price for Race bikes

According to our math, the average price for a trustworthy Race bike is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.

Furthermore, this bike was made available in 2020 for 4200$. In conclusion, this bike price is 25.37% more expensive than the price of the average Race bike.

Average weight for Race bikes

Race bikes weigh an average of 6.82 kg (15.04 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.

much heavier than average, SuperSix EVO Carbon Disc Ultegra has a weight of 8.2 kg (18.08 lbs). In conclusion, the average Race bike weighs 20.23% less than SuperSix EVO Carbon Disc Ultegra.

Internal Cable Routing

Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.

SuperSix EVO Carbon Disc Ultegra components

Fork material

The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.

Wheels size

The wheels on SuperSix EVO Carbon Disc Ultegra are the 700c carbon type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.

Brakes

For your safety, it is important to have quality breaks on your bike. Cannondale SuperSix EVO Carbon Disc Ultegra has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
