Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Ultegra, GRX 600 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
46cm
152cm - 162cm
51cm
160cm - 170cm
54cm
165cm - 175cm
56cm
172cm - 182cm
58cm
177cm - 188cm
61cm
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BallisTec Carbon, SAVE, BB30-83 Ai, internal cable routing, flat mount disc, 12x142 thru-axle
Suspension Fork
BallisTec Carbon, 1-1/8" to 1.5" steerer, internal cable routing, 12x100mm thru-axle, 55mm OutFront offset
Drivetrain
Rear Derailleur
Shimano Ultegra RX
Shift Levers
Shimano GRX RX600 hydro disc
Cassette
Shimano 105, 11-34, 11-speed
Crank
Cannondale 1, BB30a w/ FSA ring, 40T
Bottom Bracket
Cannondale Alloy PressFit30
Chain
Shimano HG601, 11-speed
Pedals
Not Included
Wheels
Front Hub
Formula RX-512 12x100
Rear Hub
Formula RX-142 12x142
Rims
CX 1.0 TR, 28h front, 28h rear
Spokes
Stainless steel, 14g
Tires
Vittoria Terreno Mix TNT, 700 x 33c, tubeless ready
Brakes
Brakes
Shimano hydro disc, 160/160mm RT56 rotors
Brake Levers
Shimano 105
Cockpit
Stem
Cannondale 3, 6061 alloy, 7-degree
Handlebar
Cannondale 3, 6061 alloy, Compact
Grips
Cannondale Grip Bar Tape w/Gel, 3.5mm
Headset
SuperX, 1.5" lower to 1-1/8" upper w/ reducer, 25mm Alloy top cap
Seat
Saddle
Fabric Scoop Shallow Sport, steel rails
Seatpost
Cannondale 3, 6061 Alloy, 25.4 x 350mm (46-56), 400mm (58-61)
Fit data

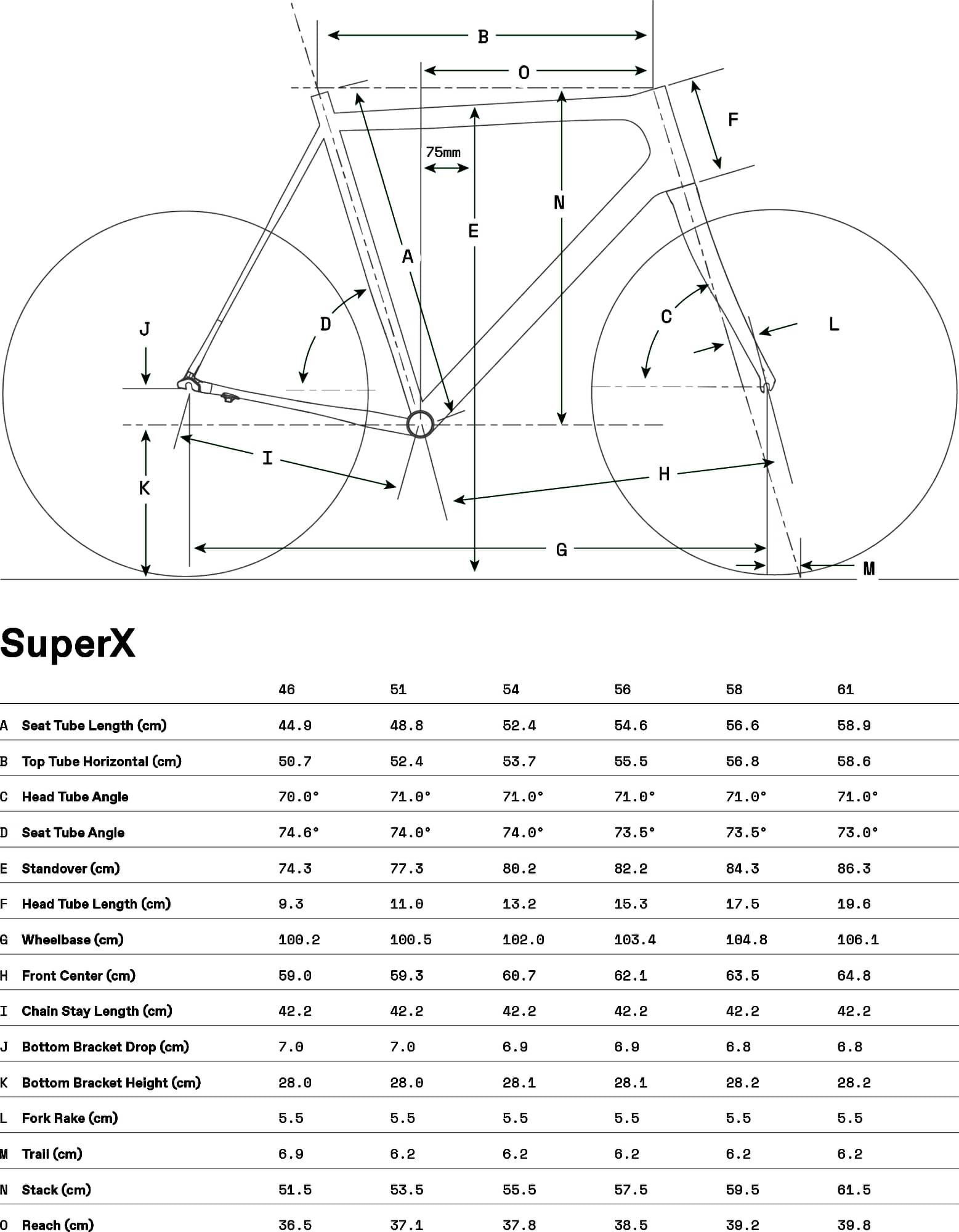

Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.44 mm | 1.47 mm | 1.5 mm | 1.52 mm | 1.55 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 281 mm | 281 mm | 282 mm | 282 mm |
| Front Center | 590 mm | 593 mm | 607 mm | 621 mm | 635 mm | 648 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 69 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Stack | 513 mm | 533 mm | 553 mm | 573 mm | 593 mm | 613 mm |
| Reach | 363 mm | 369 mm | 376 mm | 383 mm | 390 mm | 396 mm |
| Top Tube Length | 505 mm | 522 mm | 535 mm | 553 mm | 566 mm | 584 mm |
| Seat Tube Angle | 74.6 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 449 mm | 488 mm | 524 mm | 546 mm | 566 mm | 589 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 93 mm | 110 mm | 132 mm | 153 mm | 175 mm | 196 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1000 mm | 1003 mm | 1018 mm | 1032 mm | 1046 mm | 1059 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 69 mm | 69 mm | 68 mm | 68 mm |
| Standover Height | 741 mm | 771 mm | 800 mm | 820 mm | 841 mm | 861 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 160 cm | 165 cm | 172 cm | 177 cm | 182 cm |
| Rider Max Height | 162 cm | 170 cm | 175 cm | 182 cm | 188 cm | 193 cm |
Model Overview
SuperX GRX belongs to the Cannondale Superx model. 42 bikes variations carry this model name so far. Take a sneak peek at all Cannondale Superx bikes models from 2023, by clicking here.
Model range prices
Cannondale SuperX 2 2023 is the cheapest bike model and costs 3150$. Cannondale SuperX Force eTap AXS 2023 is the most expensive one and costs 7050$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Cyclocross bikes average price
If you want an acceptable Cyclocross bike you should know that the average price is 2012$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Cyclocross bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
SuperX GRX components
Fork material
SuperX GRX has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the SuperX GRX model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cannondale SuperX GRX is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 6 sizes. They vary from 152 cm – 193 cm (4.99 ft – 6.33 ft). In short, you can easily find one that suits you.
