Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Tiagra, FSA -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
48cm
157cm - 167cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
175cm - 185cm
58cm
182cm - 193cm
61cm
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, SAVE, BB30, internal cable routing, flat mount, 130x9mm QR
Suspension Fork
Full Carbon, integrated crown race, SAVE, 12x100mm thru-axle, internal routing
Drivetrain
Rear Derailleur
Shimano Tiagra GS
Front Derailleur
Shimano Tiagra, braze-on
Shift Levers
Shimano Tiagra hydraulic disc, 10-speed
Cassette
Shimano Tiagra, 11-34, 10-speed
Crank
FSA Omega ME Alloy, 50/34
Bottom Bracket
FSA Cartridge
Chain
KMC X10EL, 10-speed
Pedals
Wellgo w/ Clip and Strap
Wheels
Front Hub
(F) Formula CRX-512, 12x100mm thru-axle / (R) Formula DC-1422, QR
Rear Hub
(F) Formula CRX-512, 12x100mm thru-axle / (R) Formula DC-1422, QR
Rims
RD 3.1, 28h
Spokes
Stainless Steel, 14g
Tires
Vittoria Zaffiro V, 700 x 30c
Brakes
Brakes
Shimano Tiagra hydraulic disc, 160/160mm RT64 rotors
Brake Levers
Shimano Tiagra hydraulic disc
Cockpit
Stem
Cannondale 4, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 4, 6061 alloy, Compact
Grips
Cannondale Bar Tape, 3.5mm
Headset
FSA Sealed Bearing, Integrated, 1-1/4"-1-1/8"
Seat
Saddle
Cannondale Stage Ergo
Seatpost
Cannondale 4, 6061 Alloy, 25.4 x 300mm (48-51), 350mm (54-56), 400mm (58-61)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.46 mm | 1.48 mm | 1.51 mm | 1.54 mm | 1.58 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 272 mm | 272 mm | 275 mm | 275 mm |
| Front Center | 598 mm | 608 mm | 602 mm | 612 mm | 622 mm | 638 mm |
| Rake | 60 mm | 60 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 57 mm | 55 mm | 60 mm | 59 mm | 58 mm | 56 mm |
| Stack | 535 mm | 555 mm | 575 mm | 594 mm | 614 mm | 644 mm |
| Reach | 376 mm | 381 mm | 388 mm | 394 mm | 399 mm | 408 mm |
| Top Tube Length | 522 mm | 536 mm | 552 mm | 568 mm | 585 mm | 609 mm |
| Seat Tube Angle | 74.6 ° | 74.3 ° | 73.9 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 422 mm | 443 mm | 480 mm | 520 mm | 550 mm | 590 mm |
| Head Tube Angle | 70.8 ° | 71 ° | 71.9 ° | 72.1 ° | 72.3 ° | 72.5 ° |
| Head Tube Length | 123 mm | 143 mm | 159 mm | 178 mm | 202 mm | 232 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1004 mm | 1015 mm | 1009 mm | 1019 mm | 1030 mm | 1046 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 73 mm | 73 mm | 70 mm | 70 mm |
| Standover Height | 706 mm | 727 mm | 760 mm | 792 mm | 821 mm | 856 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 170 cm | 175 cm | 182 cm | 190 cm |
| Rider Max Height | 167 cm | 175 cm | 180 cm | 185 cm | 193 cm | 203 cm |

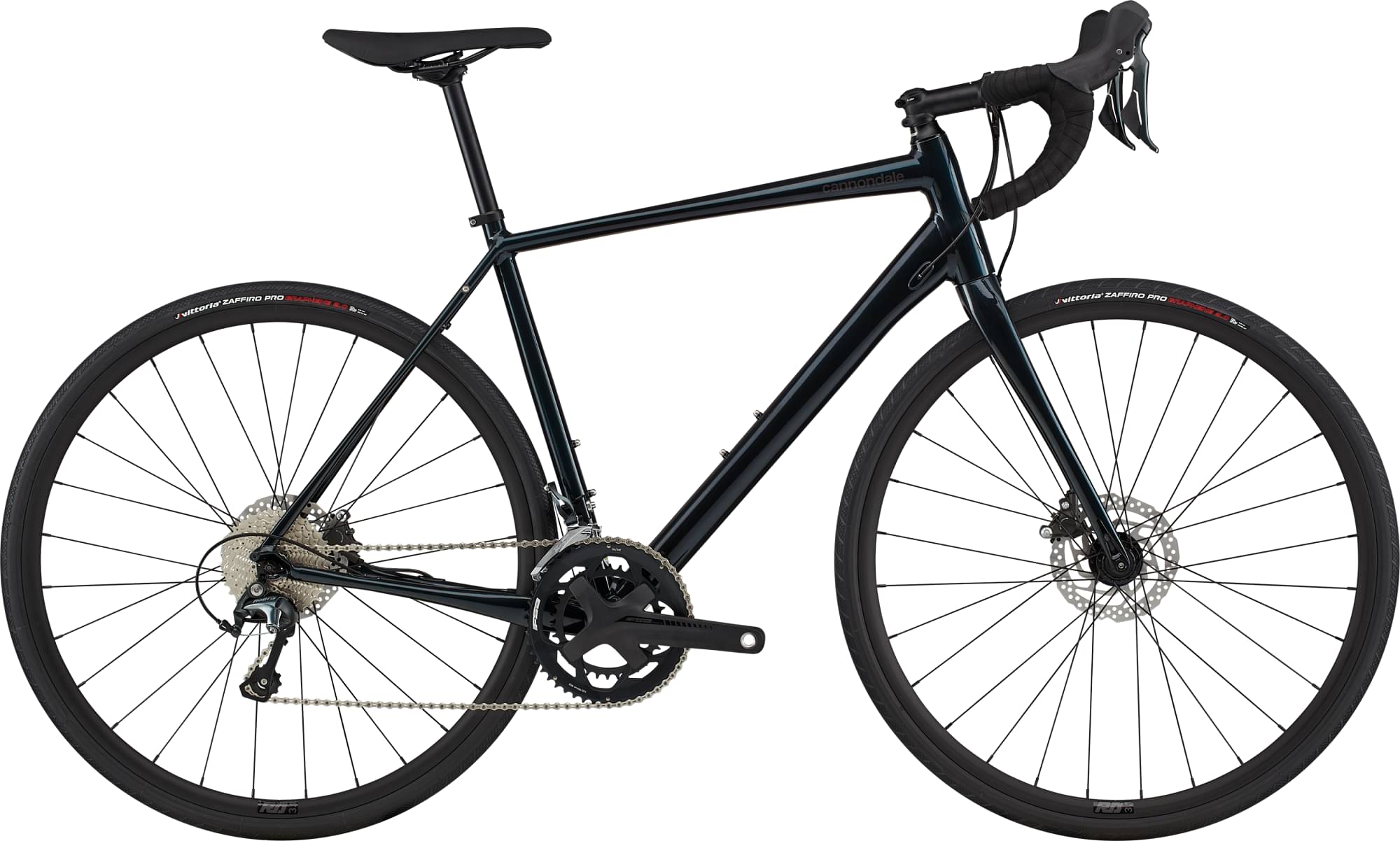

Model Overview
Synapse 1 completes the Cannondale Synapse model. 194 bikes variations carry this model name so far. You can easily view all of the Cannondale Synapse bikes models from 2022, here.
Model range prices
Cannondale Synapse Sora 2022 is the most economical model, with a starting price of 1325$. Cannondale Synapse Carbon 1 RLE 2022 on the other hand costs 9555$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Endurance bikes
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1946$. If we compare this with the average Endurance bike cost we notice that the price is 20.55% lower.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the Synapse 1 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Synapse 1 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 6 sizes. They vary from 157 cm – 203 cm (5.15 ft – 6.66 ft). In conclusion, it won’t take much to find one that’s right for you.
