Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105, FSA -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
48cm
157cm - 167cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
175cm - 185cm
58cm
182cm - 193cm
61cm
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, SAVE, BB30, internal cable routing, flat mount, 130x9mm QR
Suspension Fork
BallisTec Full Carbon, integrated crown race, SAVE, 12x100mm thru-axle, internal routing
Drivetrain
Rear Derailleur
Shimano 105 GS
Front Derailleur
Shimano 105, braze-on
Shift Levers
Shimano 105, 11-speed
Cassette
Shimano 105, 11-34, 11-speed
Crank
FSA Gossamer Alloy, BB30, 50/34
Bottom Bracket
Cannondale BB30
Chain
KMC X11, 11-speed
Pedals
Wellgo w/ Clip and Strap
Wheels
Front Hub
Formula CRX-512, 12x100mm
Rear Hub
Formula CX-22, QR
Rims
Cannondale RD 2.0 Disc, double wall w/ eyelet, 28h
Spokes
Stainless Steel, 14g
Tires
Vittoria Zaffiro, 700x30c
Brakes
Brakes
TRP Spyre-C mechanical disc, 160/160mm rotors
Brake Levers
TRP Spyre-C
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 3, 6061 alloy, Compact
Grips
Cannondale Bar Tape, 3.5mm
Headset
FSA Sealed Bearing, Integrated, 1-1/4"-1-1/8"
Seat
Saddle
Cannondale Stage Ergo
Seatpost
Cannondale 3, 6061 Alloy, 25.4x300mm (48-51), 350mm (54-56), 400mm (58-61)
Fit data

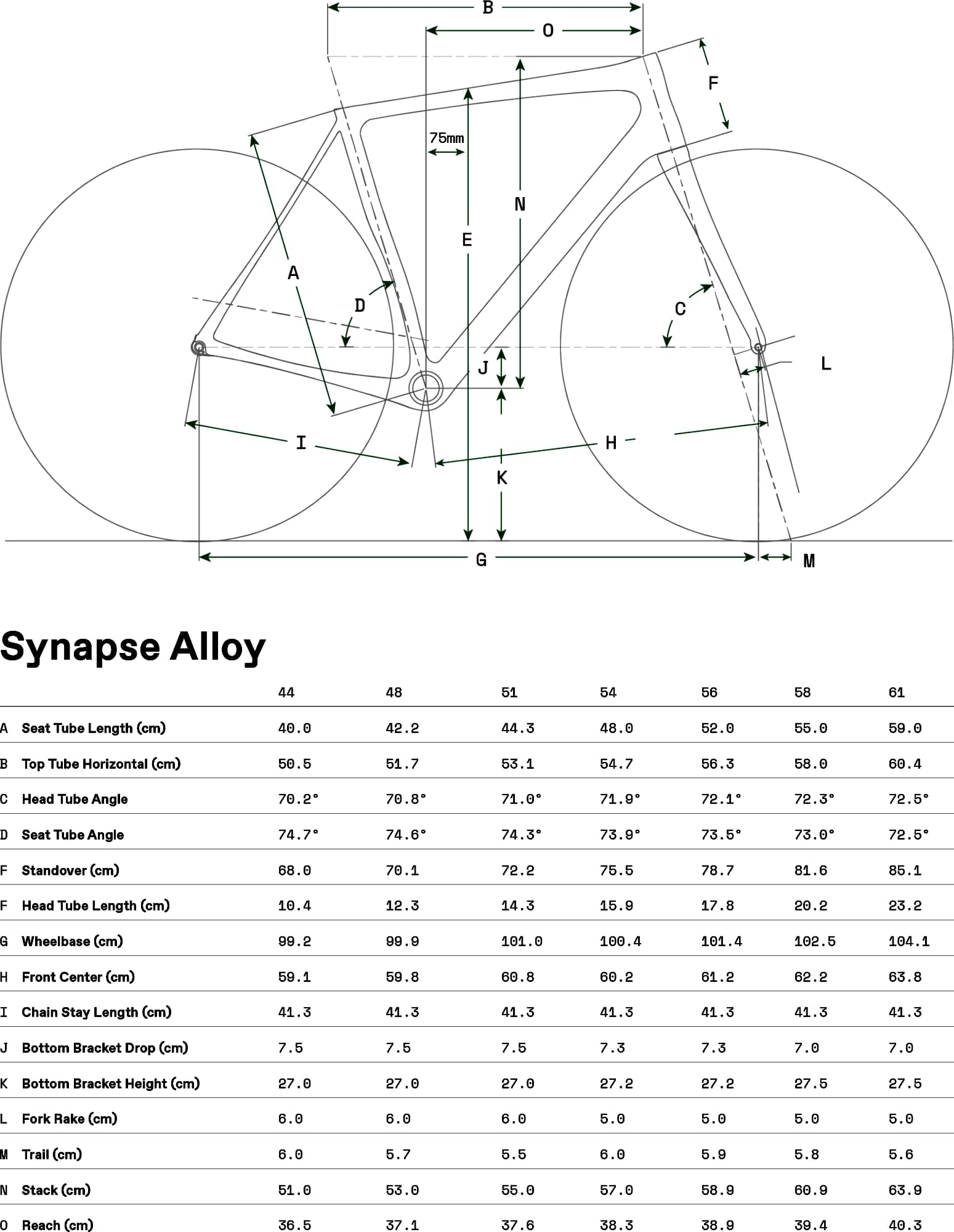

Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.46 mm | 1.48 mm | 1.51 mm | 1.54 mm | 1.58 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 272 mm | 272 mm | 275 mm | 275 mm |
| Front Center | 598 mm | 608 mm | 602 mm | 612 mm | 622 mm | 638 mm |
| Rake | 60 mm | 60 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 57 mm | 55 mm | 60 mm | 59 mm | 58 mm | 56 mm |
| Stack | 535 mm | 555 mm | 575 mm | 594 mm | 614 mm | 644 mm |
| Reach | 376 mm | 381 mm | 388 mm | 394 mm | 399 mm | 408 mm |
| Top Tube Length | 522 mm | 536 mm | 552 mm | 568 mm | 585 mm | 609 mm |
| Seat Tube Angle | 74.6 ° | 74.3 ° | 73.9 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 422 mm | 443 mm | 480 mm | 520 mm | 550 mm | 590 mm |
| Head Tube Angle | 70.8 ° | 71 ° | 71.9 ° | 72.1 ° | 72.3 ° | 72.5 ° |
| Head Tube Length | 123 mm | 143 mm | 159 mm | 178 mm | 202 mm | 232 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1004 mm | 1015 mm | 1009 mm | 1019 mm | 1030 mm | 1046 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 73 mm | 73 mm | 70 mm | 70 mm |
| Standover Height | 706 mm | 727 mm | 760 mm | 792 mm | 821 mm | 856 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 170 cm | 175 cm | 182 cm | 190 cm |
| Rider Max Height | 167 cm | 175 cm | 180 cm | 185 cm | 193 cm | 203 cm |
Model Overview
Synapse 105 belongs to the Cannondale Synapse model. There are 194 bikes that carry this model name. You can easily view all of the Cannondale Synapse bikes models from 2022, here.
Model range prices
Cannondale Synapse Sora 2022 is the most economical model, with a starting price of 1325$. Cannondale Synapse Carbon 1 RLE 2022 on the other hand costs 9555$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Endurance bikes
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2022 and its price was 2025$. In conclusion, this bike price is 15.85% smaller than the price of the average Endurance bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Synapse 105 components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on Synapse 105 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Synapse 105 has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
This bike is available in 6 sizes. They vary from 157 cm – 203 cm (5.15 ft – 6.66 ft). In conclusion, finding one for you shouldn’t be a problem.
