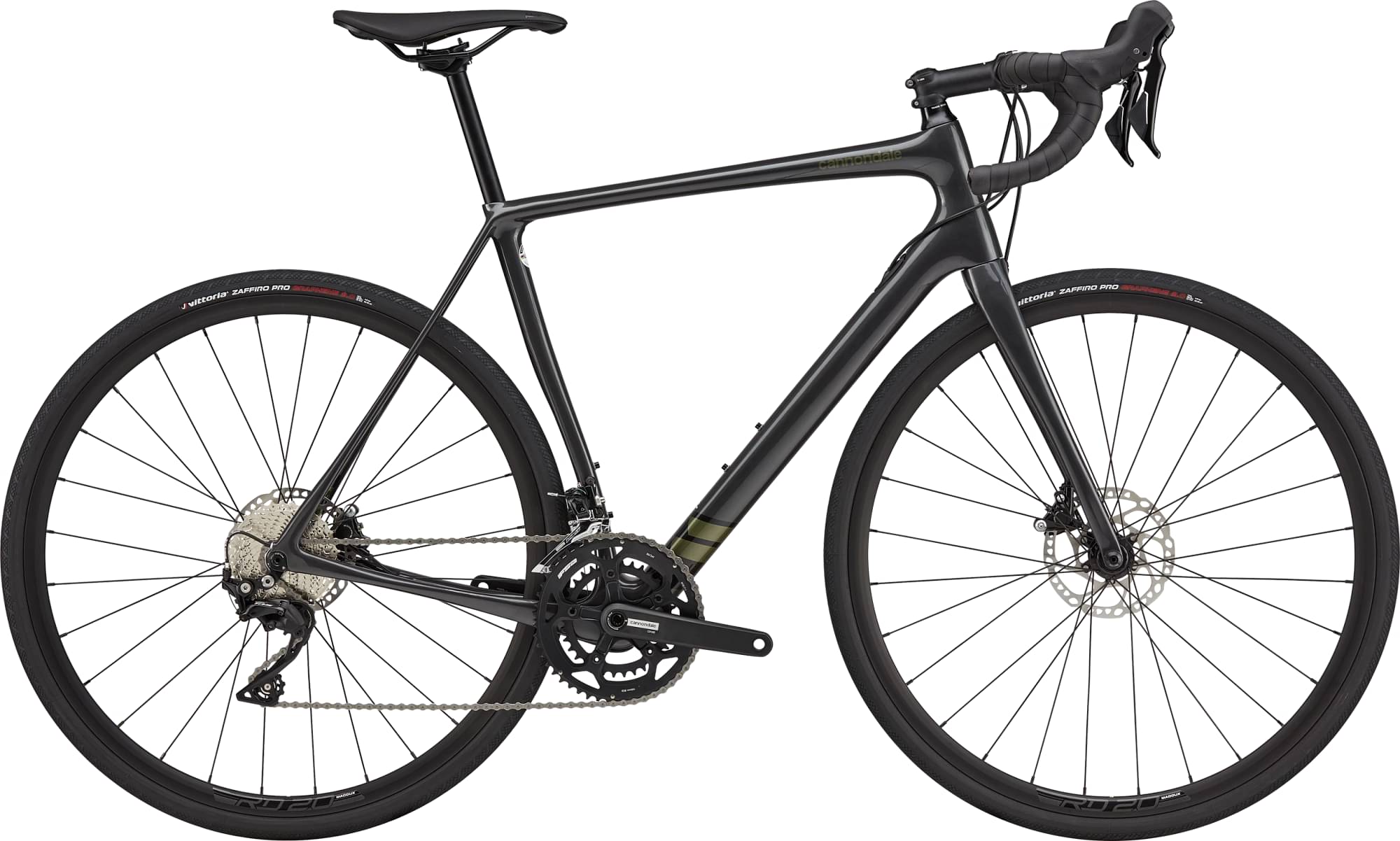

Cannondale Synapse Carbon 105 2022
2022 Road
Estimate price |
3,025$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
48cm
157cm - 167cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
175cm - 185cm
58cm
182cm - 193cm
61cm
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BallisTec Carbon, Di2 ready, SAVE, BB30a, flat mount, 12x142mm thru axle, internal cable routing, removable fender bridge
Suspension Fork
BallisTec Full Carbon, integrated crown race, SAVE, size-specific design, 12x100mm thru-axle, internal routing
Drivetrain
Rear Derailleur
Shimano 105 GS
Front Derailleur
Shimano 105, braze-on
Shift Levers
Shimano 105, 11-speed
Cassette
Shimano 105, 11-34, 11-speed
Crank
Cannondale 1, BB30a, 50/34
Bottom Bracket
Cannondale BB30
Chain
Shimano HG601, 11-speed
Pedals
Not included
Wheels
Front Hub
Formula CL-712, 12x100mm centerlock
Rear Hub
Formula RXC-400, 12x142 centerlock
Rims
Cannondale RD 2.0 Disc, double wall w/ eyelet, 28h
Spokes
Stainless Steel, 14g
Tires
Vittoria Zaffiro Pro Bright Black, 700 x 30c, reflective
Brakes
Brakes
Shimano 105 hydraulic disc, 160/160mm RT64 rotors
Brake Levers
Shimano 105 hydraulic disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 3, 6061 alloy, Compact
Grips
Cannondale Bar Tape, 3.5mm
Headset
Synapse Carbon, integrated, 1-1/8" - 1-1/8" (48cm), 1-1/8" - 1-1/4" (51-54cm), 1-1/8" - 1-3/8" (56-61cm)
Seat
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
Cannondale 3, 6061 Alloy, 25.4 x 300mm (48-51), 350mm (54-56), 400mm (58-61)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.45 mm | 1.48 mm | 1.52 mm | 1.54 mm | 1.58 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 272 mm | 272 mm | 275 mm | 275 mm |
| Front Center | 598 mm | 596 mm | 609 mm | 596 mm | 609 mm | 627 mm |
| Rake | 60 mm | 55 mm | 55 mm | 45 mm | 45 mm | 45 mm |
| Trail | 56 mm | 56 mm | 56 mm | 58 mm | 58 mm | 58 mm |
| Stack | 537 mm | 557 mm | 577 mm | 597 mm | 617 mm | 647 mm |
| Reach | 378 mm | 384 mm | 389 mm | 393 mm | 400 mm | 409 mm |
| Top Tube Length | 524 mm | 538 mm | 554 mm | 568 mm | 586 mm | 611 mm |
| Seat Tube Angle | 74.6 ° | 74.3 ° | 73.9 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 407 mm | 443 mm | 480 mm | 520 mm | 550 mm | 590 mm |
| Head Tube Angle | 70.8 ° | 71.7 ° | 71.7 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 122 mm | 137 mm | 161 mm | 173 mm | 197 mm | 229 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1003 mm | 1001 mm | 1015 mm | 1002 mm | 1016 mm | 1035 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 73 mm | 73 mm | 70 mm | 70 mm |
| Standover Height | 719 mm | 749 mm | 780 mm | 811 mm | 840 mm | 875 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 170 cm | 175 cm | 182 cm | 190 cm |
| Rider Max Height | 167 cm | 175 cm | 180 cm | 185 cm | 193 cm | 203 cm |
About this model
Synapse Carbon 105 is part of the Cannondale Synapse model. 194 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Cannondale Synapse Sora 2022 is the most economical model, with a starting price of 1325$. Cannondale Synapse Carbon 1 RLE 2022 on the other hand costs 9555$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Endurance bikes average price
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Cannondale Synapse Carbon 105 price was 3025$. Comparing this to the average Endurance bike price, we see that the price is 28.94% higher.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Synapse Carbon 105 components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the Synapse Carbon 105 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Synapse Carbon 105 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 157 cm – 203 cm (5.15 ft – 6.66 ft). In short, it won’t be difficult to find the right one for you.
