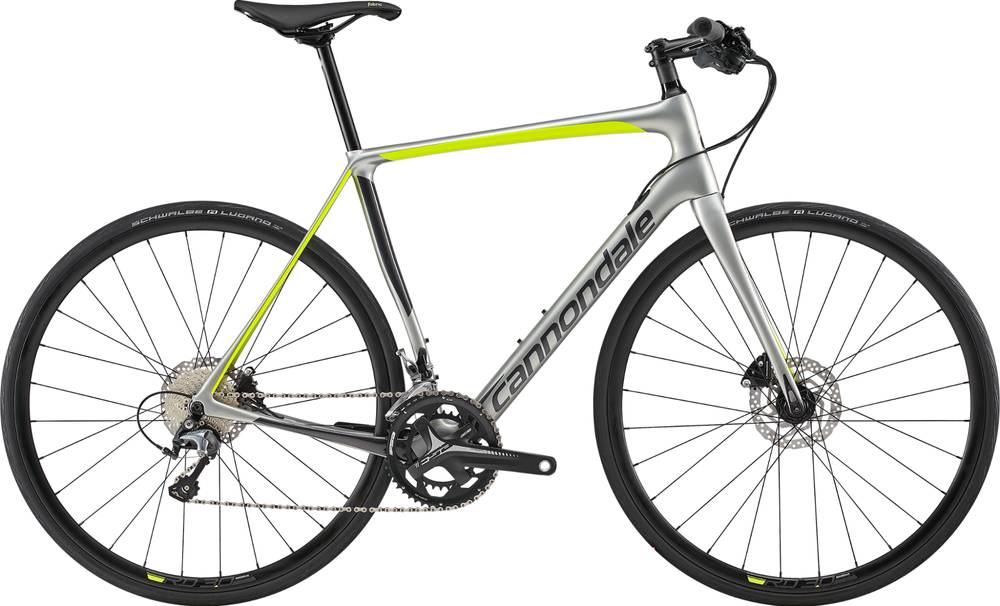

Cannondale Synapse Carbon Disc Tiagra Flat Bar 2019
2019 Road
Estimate price |
1,890$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Tiagra, FSA -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Synapse Disc Asymmetric, Carbon, Di2 ready, SAVE, BB30a, flat mount, 12mm thru axle
Suspension Fork
Synapse Disc Asymmetric, Carbon, SAVE, integrated crown race, 12x100mm thru-axle (S/M): 1-1/8” - 1-1/4” tapered steerer, 55mm rake, (L/XL): 1-1/8” - 1-3/8” tapered steerer, 45mm rake
Drivetrain
Rear Derailleur
Shimano Tiagra GS
Front Derailleur
Shimano Tiagra, braze-on
Shift Levers
Shimano Tiagra FB, 2x10
Cassette
Shimano HG500, 11-32, 10-speed
Crank
FSA Omega Alloy, 48/32
Bottom Bracket
Cannondale Alloy PressFit30
Chain
KMC X10, 10-speed
Pedals
Not Included
Wheels
Front Hub
Formula RX-512 12x100 front, RX-142 12x142 rear
Rear Hub
Formula RX-512 12x100 front, RX-142 12x142 rear
Rims
RD 3.0, 28h
Spokes
Stainless Steel, 14g
Tires
Schwalbe Lugano, K-Guard, 700 x 28c
Brakes
Brakes
Shimano MT200 hydro disc, 160/160mm RT26 rotors
Brake Levers
Shimano MT200 hydro disc
Cockpit
Stem
Cannondale C3, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale C3 Flat, 6061 Alloy, 10° back, 3° rise
Grips
Cannondale Ergo Fitness Dual Density, Lock-on
Headset
Synapse Si, 25mm Alloy top cap
Seat
Saddle
Fabric Scoop Radius Sport, steel rails
Seatpost
Cannondale C3, 6061 Alloy, 25.4 x 350mm (44-56), 400mm (58-61)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.5 mm | 1.54 mm | 1.56 mm |
| Bottom Bracket Height | 270 mm | 272 mm | 272 mm | 275 mm |
| Front Center | 596 mm | 609 mm | 596 mm | 609 mm |
| Rake | 55 mm | 55 mm | 45 mm | 45 mm |
| Trail | 56 mm | 56 mm | 58 mm | 58 mm |
| Stack | 542 mm | 562 mm | 582 mm | 602 mm |
| Reach | 369 mm | 374 mm | 378 mm | 385 mm |
| Top Tube Length | 523 mm | 539 mm | 553 mm | 571 mm |
| Seat Tube Length | 443 mm | 480 mm | 520 mm | 550 mm |
| Head Tube Angle | 71.7 ° | 71.7 ° | 73 ° | 73 ° |
| Head Tube Length | 137 mm | 161 mm | 173 mm | 197 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 402 mm |
| Wheelbase | 986 mm | 1000 mm | 987 mm | 1001 mm |
| Bottom Bracket Drop | 75 mm | 73 mm | 73 mm | 70 mm |
| Standover Height | 734 mm | 765 mm | 796 mm | 825 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Synapse Carbon Disc Tiagra Flat Bar is part of the Cannondale Synapse model. 194 bikes variations carry this model name so far. You can easily view all of the Cannondale Synapse bikes models from 2019, here.
Model range prices
Cannondale Synapse Disc Women’s Sora 2019 is the most economical model, with a starting price of 1100$. Cannondale Synapse Hi MOD Disc Dura Ace Di2 2019 on the other hand costs 10500$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Endurance bikes
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2019 and its price was 1890$. Comparing this to the average Endurance bike price, we see that the price is 24.13% smaller.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on Synapse Carbon Disc Tiagra Flat Bar are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Cannondale Synapse Carbon Disc Tiagra Flat Bar has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Cannondale Synapse Carbon Disc Tiagra Flat Bar bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
