Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Tiagra, FSA -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 175cm
LG
170cm - 180cm
XL
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BallisTec Carbon, Di2 ready, SAVE, BB30a, flat mount, 12mm thru axle, internal cable routing, removable fender bridge
Suspension Fork
BallisTec Carbon, SAVE, integrated crown race, 12x100mm thru-axle, internal routing, size-specific design - (S/M): 1-1/8" - 1-1/4" tapered steerer, 55mm rake, (L/XL): 1-1/8" - 1-3/8" tapered steerer, 45mm rake
Drivetrain
Rear Derailleur
Shimano Tiagra GS
Front Derailleur
Shimano Tiagra, braze-on
Shift Levers
Shimano Tiagra FB, 2x10
Cassette
Sunrace, 11-32, 10-speed
Crank
FSA Omega alloy, 48/32
Bottom Bracket
Cannondale BB30
Chain
KMC X10, 10-speed
Pedals
Not Included
Wheels
Front Hub
Formula RX-512 12x100
Rear Hub
Formula RX-142 12x142
Rims
RD 2.0, 28h
Spokes
Stainless steel, 14g
Tires
Vittoria Zaffiro Pro Bright Black, 700 x 30c, reflective strip
Brakes
Brakes
Shimano UR300 hydro disc, 160/160mm RT26 rotors
Brake Levers
Shimano MT200 hydro disc
Cockpit
Stem
Cannondale 3, 6061 alloy, 31.8, 7°
Handlebar
Cannondale 3 Flat, 6061 Alloy, 10° back, 3° rise
Grips
Cannondale Ergo Fitness Dual Density, Lock-on
Headset
Synapse, 1-1/4" lower bearing, 25mm top cap
Seat
Saddle
Fabric Scoop Radius Elite, cro-mo rails
Seatpost
Alloy, 25.4 x 350mm (44-56), 400mm (58-61)
Fit data

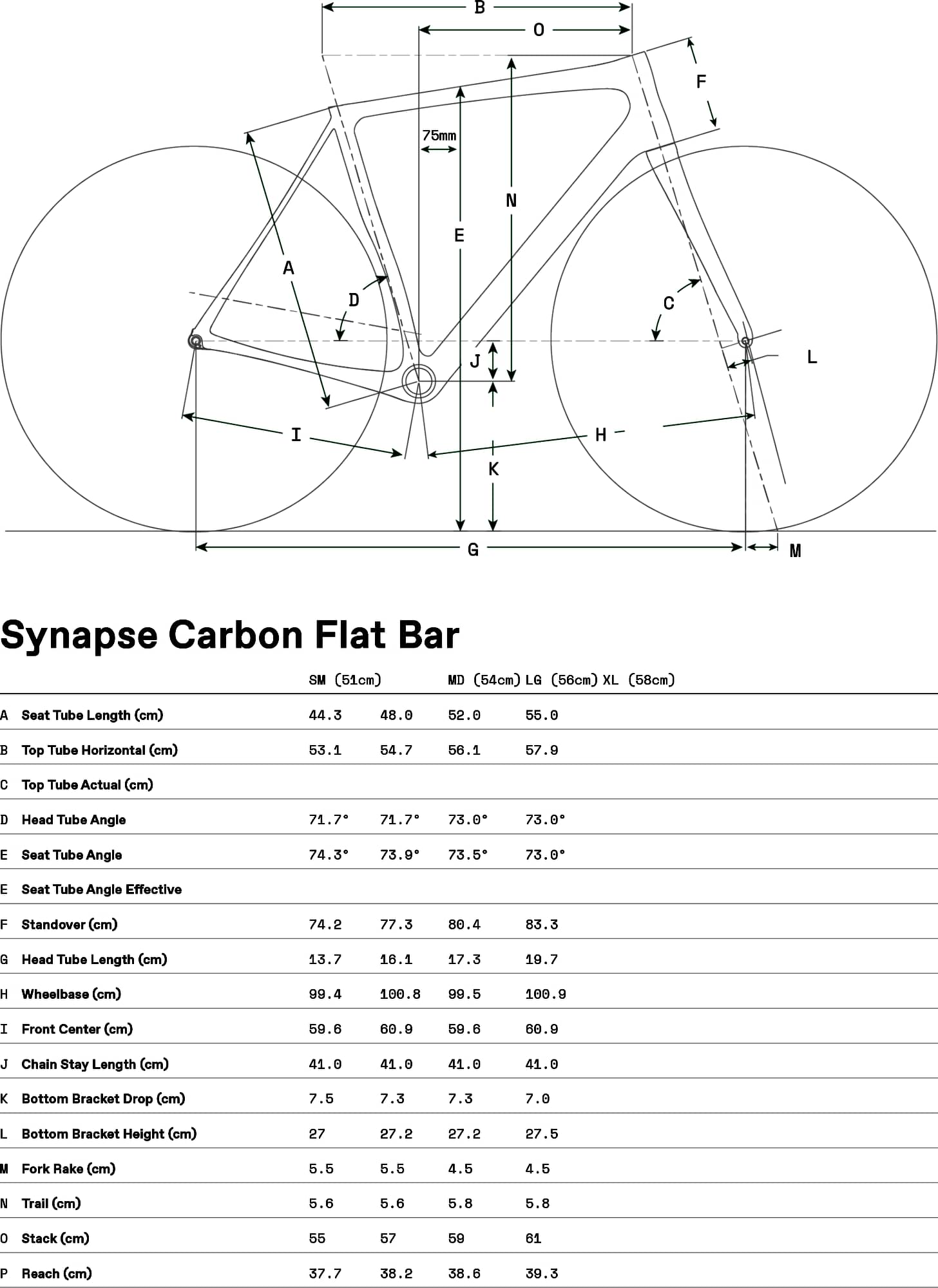

Geometry
Numbers for sizing and ride feel.
| Size | SM | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.54 mm | 1.56 mm |
| Bottom Bracket Height | 270 mm | 272 mm | 275 mm |
| Front Center | 596 mm | 596 mm | 609 mm |
| Rake | 55 mm | 45 mm | 45 mm |
| Trail | 56 mm | 58 mm | 58 mm |
| Stack | 542 mm | 582 mm | 602 mm |
| Reach | 369 mm | 378 mm | 385 mm |
| Top Tube Length | 523 mm | 553 mm | 571 mm |
| Seat Tube Angle | 74.3 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 443 mm | 520 mm | 550 mm |
| Head Tube Angle | 71.7 ° | 73 ° | 73 ° |
| Head Tube Length | 137 mm | 173 mm | 197 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm |
| Wheelbase | 986 mm | 987 mm | 1001 mm |
| Bottom Bracket Drop | 75 mm | 73 mm | 70 mm |
| Standover Height | 734 mm | 796 mm | 825 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 170 cm | 182 cm |
| Rider Max Height | 175 cm | 180 cm | 193 cm |
Model Overview
Synapse Carbon Disc Tiagra Flatbar is a Cannondale Synapse model. 194 bikes variations carry this model name so far. You can easily view all of the Cannondale Synapse bikes models from 2022, here.
Model range prices
Cannondale Synapse Sora 2022 is the most affordable bike of this model and has a price of 1325$. On the other hand, Cannondale Synapse Carbon 1 RLE 2022, is the most expensive and costs 9555$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Fitness bikes
If you want to purchase a solid Fitness bike, it is important to know that the average cost is 656$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Synapse Carbon Disc Tiagra Flatbar components
Fork material
Synapse Carbon Disc Tiagra Flatbar has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on Synapse Carbon Disc Tiagra Flatbar are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Cannondale Synapse Carbon Disc Tiagra Flatbar has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Synapse Carbon Disc Tiagra Flatbar comes in 3 sizes, that range from 165 cm – 193 cm (5.41 ft – 6.33 ft). In conclusion, you won’t have a problem finding one that suits you.
