Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 175cm
MD
170cm - 180cm
LG
175cm - 185cm
XL
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BallisTec Carbon, Di2 ready, SAVE, BB30a, flat mount, 12mm thru axle, internal cable routing, removable fender bridge
Suspension Fork
BallisTec Carbon, SAVE, integrated crown race, 12x100mm thru-axle, internal routing, size-specific design - (S/M): 1-1/8" - 1-1/4" tapered steerer, 55mm rake, (L/XL): 1-1/8" - 1-3/8" tapered steerer, 45mm rake
Drivetrain
Rear Derailleur
Shimano Ultegra GS
Front Derailleur
Shimano 105, braze-on
Shift Levers
Shimano RS700 FB, 2x11
Cassette
Shimano 105, 11-34, 11-speed
Crank
FSA Omega alloy, 50/34
Bottom Bracket
Cannondale BB30
Chain
KMC X11, 11-speed
Pedals
Not Included
Wheels
Front Hub
Formula RX-512 12x100
Rear Hub
Formula RX-142 12x142
Rims
RD 2.0, 28h
Spokes
Stainless steel, 14g
Tires
Vittoria Zaffiro Pro Bright Black, 700 x 30c, reflective strip
Brakes
Brakes
Shimano UR300 hydro disc, 160/160mm RT10 rotors
Brake Levers
Shimano MT201 hydro disc
Cockpit
Stem
Cannondale 3, 6061 alloy, 31.8, 7°
Handlebar
Cannondale 3 Flat, 6061 alloy, 10° back, 3° rise
Grips
Cannondale Ergo Fitness Dual Density, Lock-on
Headset
Synapse, 1-1/4" lower bearing, 25mm top cap
Seat
Saddle
Fabric Scoop Radius Elite, cro-mo rails
Seatpost
6061 alloy, 25.4 x 350mm (44-56), 400mm (58-61)
Fit data

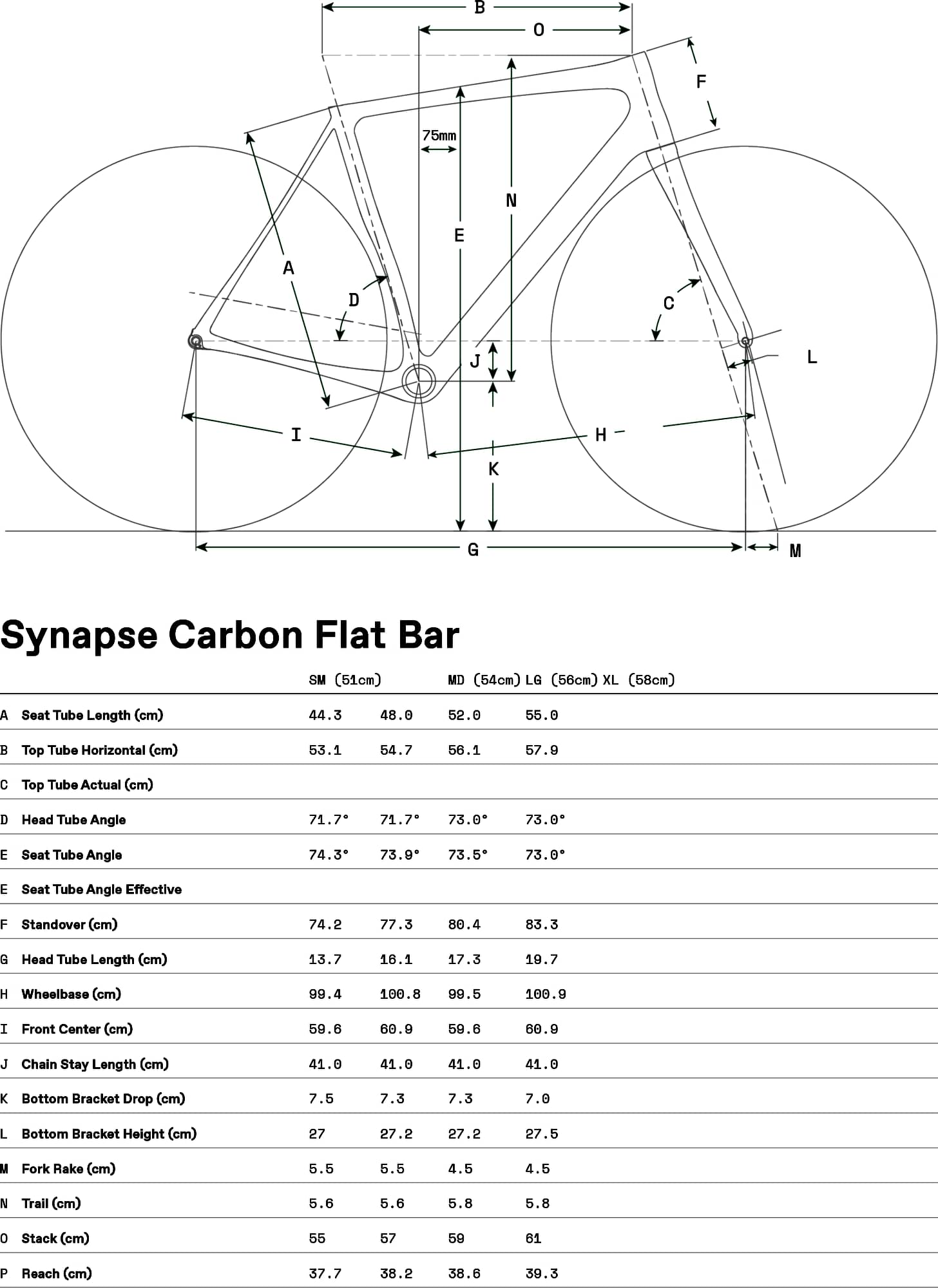

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.5 mm | 1.54 mm | 1.56 mm |
| Bottom Bracket Height | 270 mm | 272 mm | 272 mm | 275 mm |
| Front Center | 596 mm | 609 mm | 596 mm | 609 mm |
| Rake | 55 mm | 55 mm | 45 mm | 45 mm |
| Trail | 56 mm | 56 mm | 58 mm | 58 mm |
| Stack | 542 mm | 562 mm | 582 mm | 602 mm |
| Reach | 369 mm | 374 mm | 378 mm | 385 mm |
| Top Tube Length | 523 mm | 539 mm | 553 mm | 571 mm |
| Seat Tube Angle | 74.3 ° | 73.9 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 443 mm | 480 mm | 520 mm | 550 mm |
| Head Tube Angle | 71.7 ° | 71.7 ° | 73 ° | 73 ° |
| Head Tube Length | 137 mm | 161 mm | 173 mm | 197 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 402 mm |
| Wheelbase | 986 mm | 1000 mm | 987 mm | 1001 mm |
| Bottom Bracket Drop | 75 mm | 73 mm | 73 mm | 70 mm |
| Standover Height | 734 mm | 765 mm | 796 mm | 825 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 170 cm | 175 cm | 182 cm |
| Rider Max Height | 175 cm | 180 cm | 185 cm | 193 cm |
About this model
Synapse Carbon Disc Ultegra Flatbar belongs to the Cannondale Synapse model. There are 194 bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Cannondale Synapse Sora 2022 is the most economical model, with a starting price of 1325$. Cannondale Synapse Carbon 1 RLE 2022 on the other hand costs 9555$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Fitness bikes
Our math shows that the average cost of a dependable Fitness bike is 656$. However, you could also get a good Fitness bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Cannondale Synapse Carbon Disc Ultegra Flatbar 2022, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cannondale Synapse Carbon Disc Ultegra Flatbar is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 165 cm – 193 cm (5.41 ft – 6.33 ft). In conclusion, you won’t have a problem finding one that suits you.
