Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105, FSA -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
48cm
157cm - 167cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
175cm - 185cm
58cm
182cm - 193cm
61cm
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, SAVE, BB30, internal cable routing, flat mount
Suspension Fork
Full Carbon, SAVE, internal routing, 1-1/8" - 1 1/4" tapered steerer, flat mount, 55mm rake, 12x100 thru axle
Drivetrain
Rear Derailleur
Shimano 105 GS
Front Derailleur
Shimano 105, braze-on
Shift Levers
Shimano 105, 2x11
Cassette
Shimano 105, 11-34, 11-speed
Crank
FSA Gossamer alloy, BB30, 50/34
Bottom Bracket
Cannondale BB30
Chain
KMC X11, 11-speed
Pedals
Not Included
Wheels
Front Hub
Formula CRX-512, 12x100
Rear Hub
Formula CX-22, QR
Rims
RD 2.0, 28h
Spokes
Stainless steel, 14g
Tires
Vittoria Zaffiro, 700 x 30c
Brakes
Brakes
TRP Spyre-C cable actuated disc, 160/160mm rotors
Brake Levers
Shimano 105
Cockpit
Stem
Cannondale 3, 6061 alloy, 31.8, 7°
Handlebar
Cannondale 3, 6061 alloy, Compact
Grips
Cannondale Grip Bar Tape w/Gel, 3.5mm
Headset
FSA Sealed Bearing, Integrated, 1-1/4"-1-1/8"
Seat
Saddle
Cannondale Stage Ergo
Seatpost
Cannondale 3, 6061 alloy, 25.4 x 350mm (44-56), 400mm (58-63)
Fit data

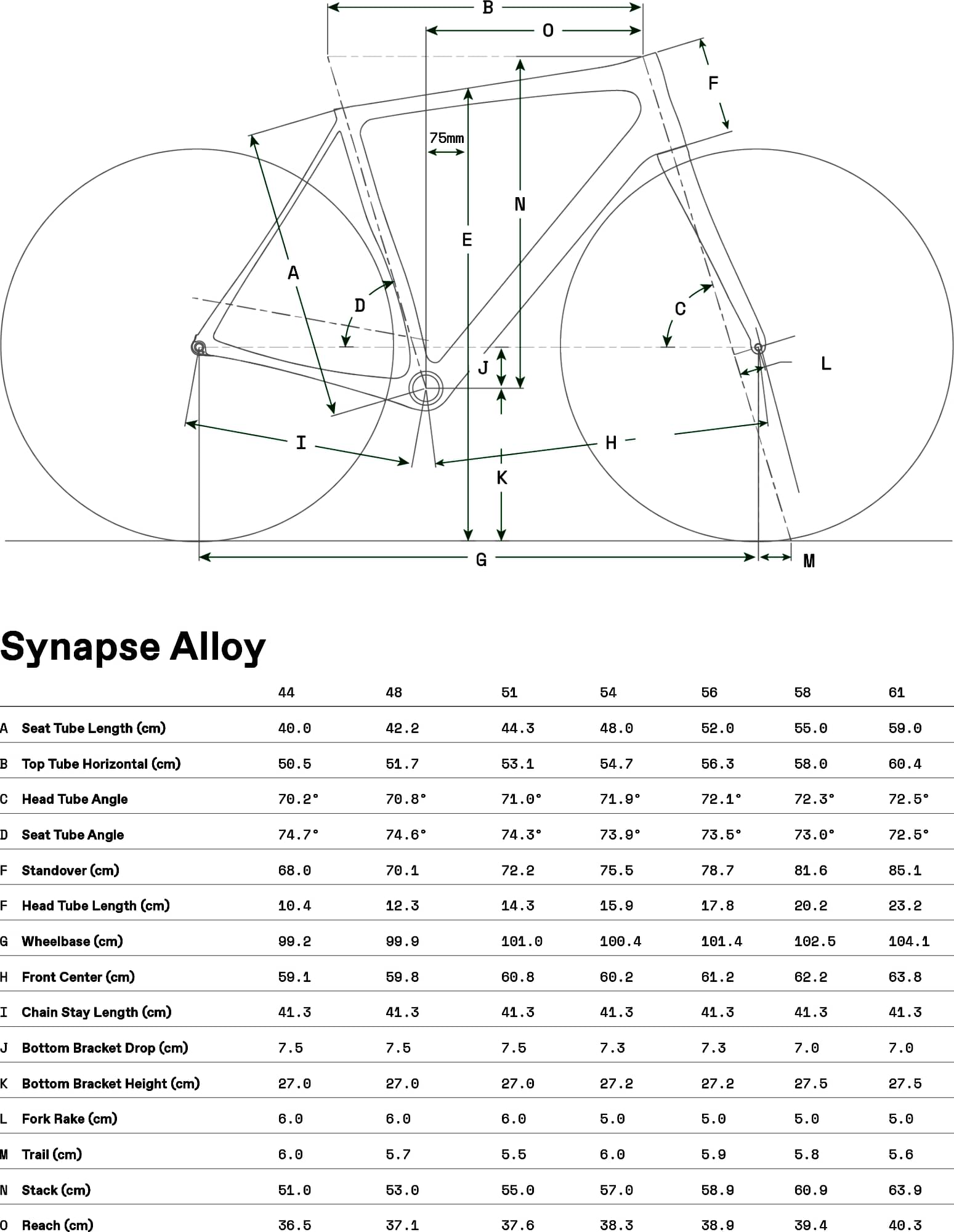

Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.46 mm | 1.48 mm | 1.51 mm | 1.54 mm | 1.58 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 272 mm | 272 mm | 275 mm | 275 mm |
| Front Center | 598 mm | 608 mm | 602 mm | 612 mm | 622 mm | 638 mm |
| Rake | 60 mm | 60 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 57 mm | 55 mm | 60 mm | 59 mm | 58 mm | 56 mm |
| Stack | 535 mm | 555 mm | 575 mm | 594 mm | 614 mm | 644 mm |
| Reach | 376 mm | 381 mm | 388 mm | 394 mm | 399 mm | 408 mm |
| Top Tube Length | 522 mm | 536 mm | 552 mm | 568 mm | 585 mm | 609 mm |
| Seat Tube Angle | 74.6 ° | 74.3 ° | 73.9 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 422 mm | 443 mm | 480 mm | 520 mm | 550 mm | 590 mm |
| Head Tube Angle | 70.8 ° | 71 ° | 71.9 ° | 72.1 ° | 72.3 ° | 72.5 ° |
| Head Tube Length | 123 mm | 143 mm | 159 mm | 178 mm | 202 mm | 232 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1004 mm | 1015 mm | 1009 mm | 1019 mm | 1030 mm | 1046 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 73 mm | 73 mm | 70 mm | 70 mm |
| Standover Height | 706 mm | 727 mm | 760 mm | 792 mm | 821 mm | 856 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 170 cm | 175 cm | 182 cm | 190 cm |
| Rider Max Height | 167 cm | 175 cm | 180 cm | 185 cm | 193 cm | 203 cm |
Model Overview
Synapse Disc 105 is part of the Cannondale Synapse model. Cannondale launched 194 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Cannondale Synapse Sora 2022 has a starting price of 1325$. Cannondale Synapse Carbon 1 RLE 2022 on the other hand is the most expensive at 9555$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Endurance bikes
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Synapse Disc 105 components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on Synapse Disc 105 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Cannondale Synapse Disc 105 has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Cannondale Synapse Disc 105 bike has 6 sizes, in the range of 157 cm – 203 cm (5.15 ft – 6.66 ft). In conclusion, finding one for you shouldn’t be a problem.
