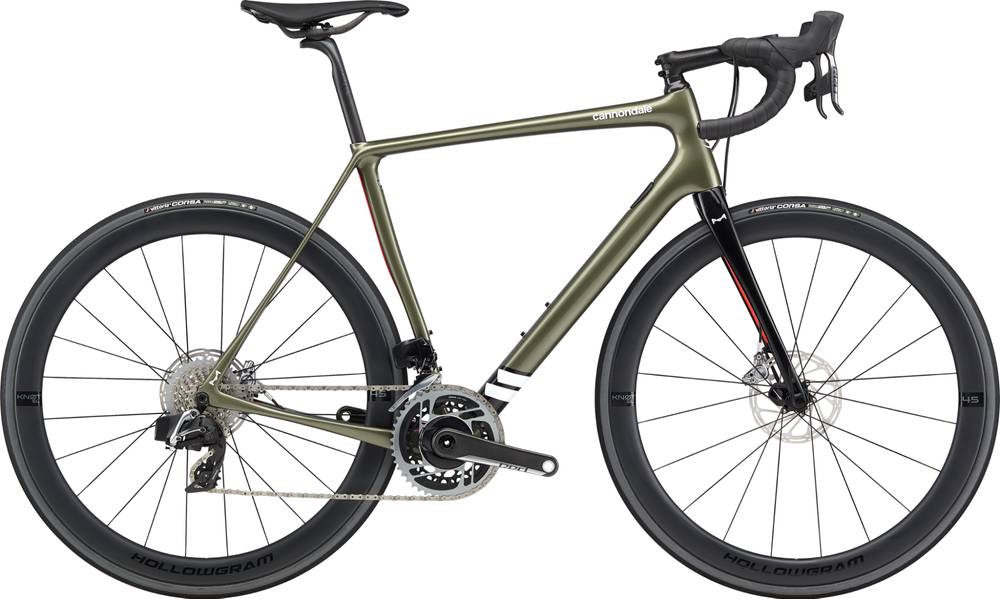

Cannondale Synapse Hi MOD Red eTap AXS 2020
2020 Road
Estimate price |
10,000$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED eTAP -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BallisTec Hi-MOD Carbon, Di2 ready, SAVE, BB30a, flat mount, 12mm thru axle, internal cable routing, removable fender bridge, Di2 ready, SAVE, BB30a, Flat mount, 12mm thru axle, Internal cable routing, Removable fender bridge
Suspension Fork
BallisTec Hi-MOD Carbon, SAVE, integrated crown race, 12x100mm thru-axle, internal routing, size-specific design - 44-48: 1 1/8" steerer, 60mm rake 51-54: 1-1/8" - 1-1/4" tapered steerer, 55mm rake 56-61: 1-1/8" - 1-3/8" tapered steerer, 45mm rake
Drivetrain
Rear Derailleur
SRAM RED eTap AXS
Front Derailleur
SRAM RED eTap AXS, braze-on
Shift Levers
SRAM RED eTap AXS HRD, 2x12
Cassette
SRAM XG-1290, 10-33, 12-speed
Crank
SRAM RED Carbon, 46/33
Bottom Bracket
SRAM RED DUB PF30
Chain
SRAM RED, 12-speed
Pedals
Not Included
Wheels
Front Hub
HollowGram KNØT, sealed bearing 12x100 centerlock
Rear Hub
(F) HollowGram KNØT, sealed bearing 12x100 centerlock / (R) HollowGram KNØT, 12x142 centerlock w/ DT Swiss internals, SRAM XDR driver
Rims
HollowGram 45 SL KNØT, Carbon, 20h front, 24h rear, 45mm deep, 21mm ID, tubeless ready
Spokes
DT Swiss Aerolite
Tires
Vittoria Corsa, 700 x 28c
Brakes
Brakes
SRAM RED eTap AXS HRD, 160/160mm Centerlock rotors
Brake Levers
SRAM RED eTap AXS HRD
Cockpit
Stem
All-New HollowGram SAVE, alloy, -6°
Handlebar
HollowGram SystemBar SAVE, Carbon, 8 deg. pitch adjust
Grips
Cannondale Grip Bar Tape w/Gel, 3.5mm
Headset
Synapse Si, 25mm Carbon top cap
Seat
Saddle
Fabric Scoop Shallow Pro, carbon rails
Seatpost
SAVE Carbon, 25.4 x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.42 mm | 1.45 mm | 1.49 mm | 1.52 mm | 1.55 mm | 1.59 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 272 mm | 272 mm | 275 mm | 275 mm |
| Front Center | 591 mm | 598 mm | 596 mm | 609 mm | 596 mm | 609 mm | 627 mm |
| Rake | 60 mm | 60 mm | 55 mm | 55 mm | 45 mm | 45 mm | 45 mm |
| Trail | 60 mm | 56 mm | 56 mm | 56 mm | 58 mm | 58 mm | 58 mm |
| Stack | 514 mm | 534 mm | 554 mm | 574 mm | 594 mm | 614 mm | 644 mm |
| Reach | 369 mm | 375 mm | 381 mm | 386 mm | 390 mm | 397 mm | 406 mm |
| Top Tube Length | 509 mm | 521 mm | 535 mm | 551 mm | 565 mm | 583 mm | 608 mm |
| Seat Tube Length | 370 mm | 407 mm | 443 mm | 480 mm | 520 mm | 550 mm | 590 mm |
| Head Tube Angle | 70.2 ° | 70.8 ° | 71.7 ° | 71.7 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 103 mm | 122 mm | 137 mm | 161 mm | 173 mm | 197 mm | 229 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 993 mm | 1000 mm | 998 mm | 1012 mm | 999 mm | 1013 mm | 1032 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 73 mm | 73 mm | 70 mm | 70 mm |
| Standover Height | 684 mm | 716 mm | 746 mm | 777 mm | 808 mm | 837 mm | 872 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Synapse Hi MOD Red eTap AXS belongs to the Cannondale Synapse model. Cannondale launched 194 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Cannondale Synapse Disc Sora 2020 has a starting price of 1150$. Cannondale Synapse Hi MOD Red eTap AXS 2020 on the other hand is the most expensive at 10000$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Endurance bikes
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 10000$. Comparing this to the average Endurance bike price, we see that the price is 326.26% higher.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
Synapse Hi MOD Red eTap AXS has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The Synapse Hi MOD Red eTap AXS 2020 bike is equipped with 700c carbon wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Synapse Hi MOD Red eTap AXS has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
