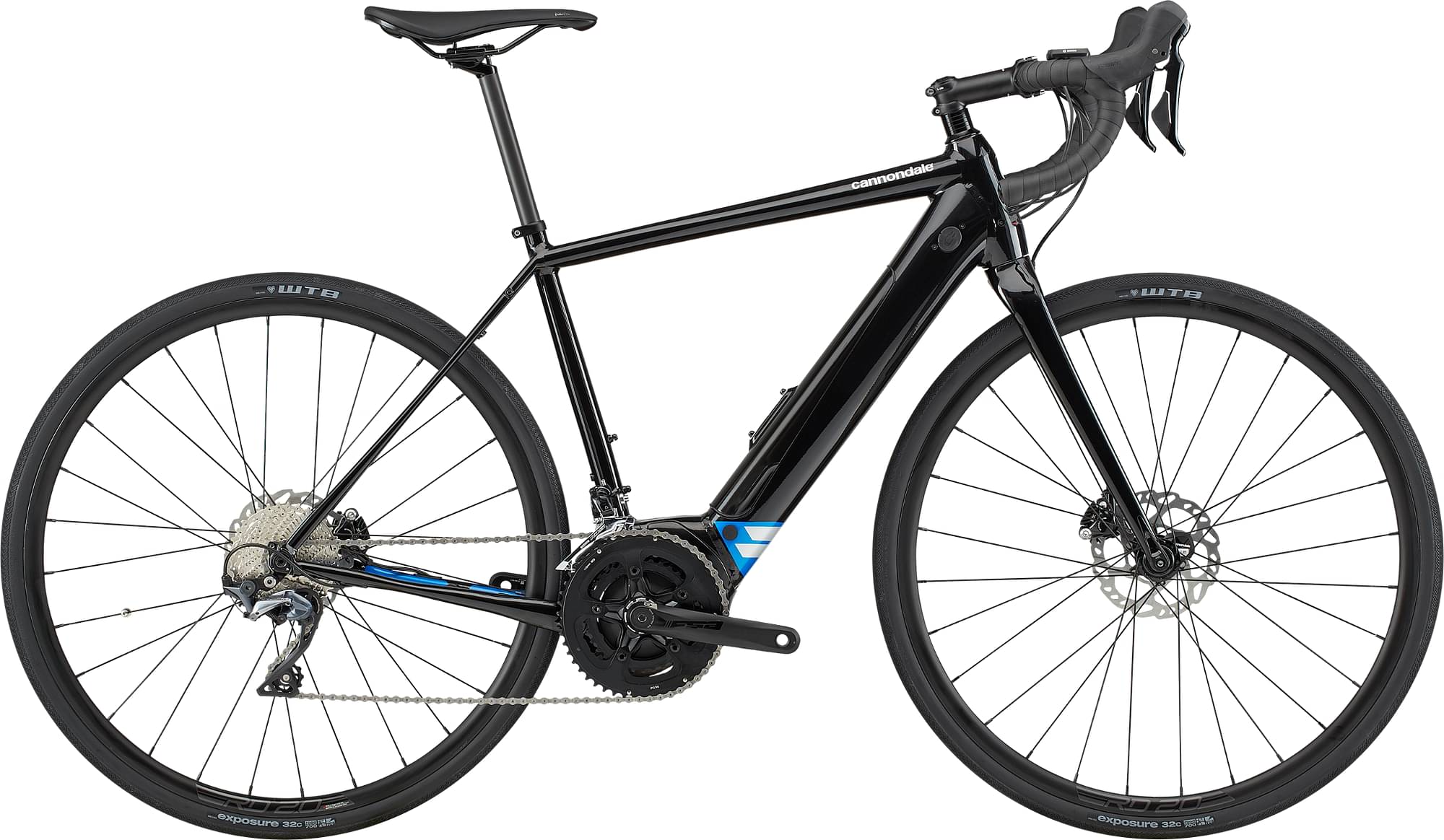

Cannondale Synapse Neo 1 2022
2022 E-bike
Estimate price |
4,587$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Ultegra, 105 -
Suspension Rigid -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerTube 500Wh -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 167cm
MD
162cm - 175cm
LG
170cm - 182cm
XL
175cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C1 Alloy, removable downtube battery, SAVE, Ai, internal cable routing, flat mount brake, 12x142 thru-axle, Si kickstand mount, rack/fender mounts
Suspension Fork
BallisTec Carbon, 1-1/8" to 1.5" tapered steerer, 55mm offset, flat mount brake, 12x100 thru axle, fender mounts, hidden cable routing
Drivetrain
Rear Derailleur
Shimano Ultegra GS
Front Derailleur
Shimano 105, braze-on
Shift Levers
Shimano 105 hydraulic disc, 2X11
Cassette
Shimano 105, 11-34, 11-speed
Crank
FSA Bosch E-Bike w/ custom Ai offset, 50/34
Bottom Bracket
Cannondale AI, 83mm, press-fit
Chain
Shimano HG601, 11-speed
Pedals
Not Included
Wheels
Front Hub
Formula CL-712, 12x100mm centerlock
Rear Hub
Formula, RXC-142S, 12x142mm
Rims
RD 2.0, 28h
Spokes
DT Swiss Champion
Tires
WTB Exposure TCS, 700 x 32c, Distance+ compound, tubeless ready
Brakes
Brakes
Shimano 105 hydraulic disc, 160/160mm RT70 rotors
Brake Levers
Shimano Ultegra hydraulic disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 7-degree
Handlebar
Cannondale 3, 6061 alloy, Compact
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
Seat
Saddle
Fabric Scoop Shallow Sport, steel rails
Seatpost
Cannondale 2, UD Carbon, 25.4, 350mm (S-M), 400mm (L-XL)
Motor & Battery
Motor
Bosch Active Line Plus 250W w/Cannondale ACR software
Battery
Bosch PowerTube 500Wh
Remote
Bosch Purion
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.5 mm | 1.55 mm | 1.57 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 605 mm | 624 mm | 644 mm | 666 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 62 mm | 62 mm | 62 mm | 62 mm |
| Stack | 541 mm | 571 mm | 603 mm | 632 mm |
| Reach | 372 mm | 381 mm | 390 mm | 402 mm |
| Top Tube Length | 529 mm | 546 mm | 570 mm | 591 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 445 mm | 490 mm | 535 mm | 580 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 126 mm | 157 mm | 191 mm | 222 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1028 mm | 1047 mm | 1067 mm | 1028 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 724 mm | 764 mm | 804 mm | 844 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 154 cm | 162 cm | 170 cm | 175 cm |
| Rider Max Height | 167 cm | 175 cm | 182 cm | 198 cm |
About this model
Synapse Neo 1 completes the Cannondale E Synapse model. Cannondale released 19 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Cannondale Synapse Neo 2 2022 is the cheapest e-bike model and costs 3928$. Cannondale Synapse Neo 1 2022 is the most expensive one and costs 4246$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Endurance e-bikes
If you want an acceptable Endurance e-bike you should know that the average price is 3800$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Cannondale released this model in 2022, its price was 4246$. Comparing this to the average Endurance e-bike price, we see that the price is 11.74% more expensive.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Synapse Neo 1 components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the Synapse Neo 1 e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Synapse Neo 1 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 154 cm – 198 cm (5.05 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
