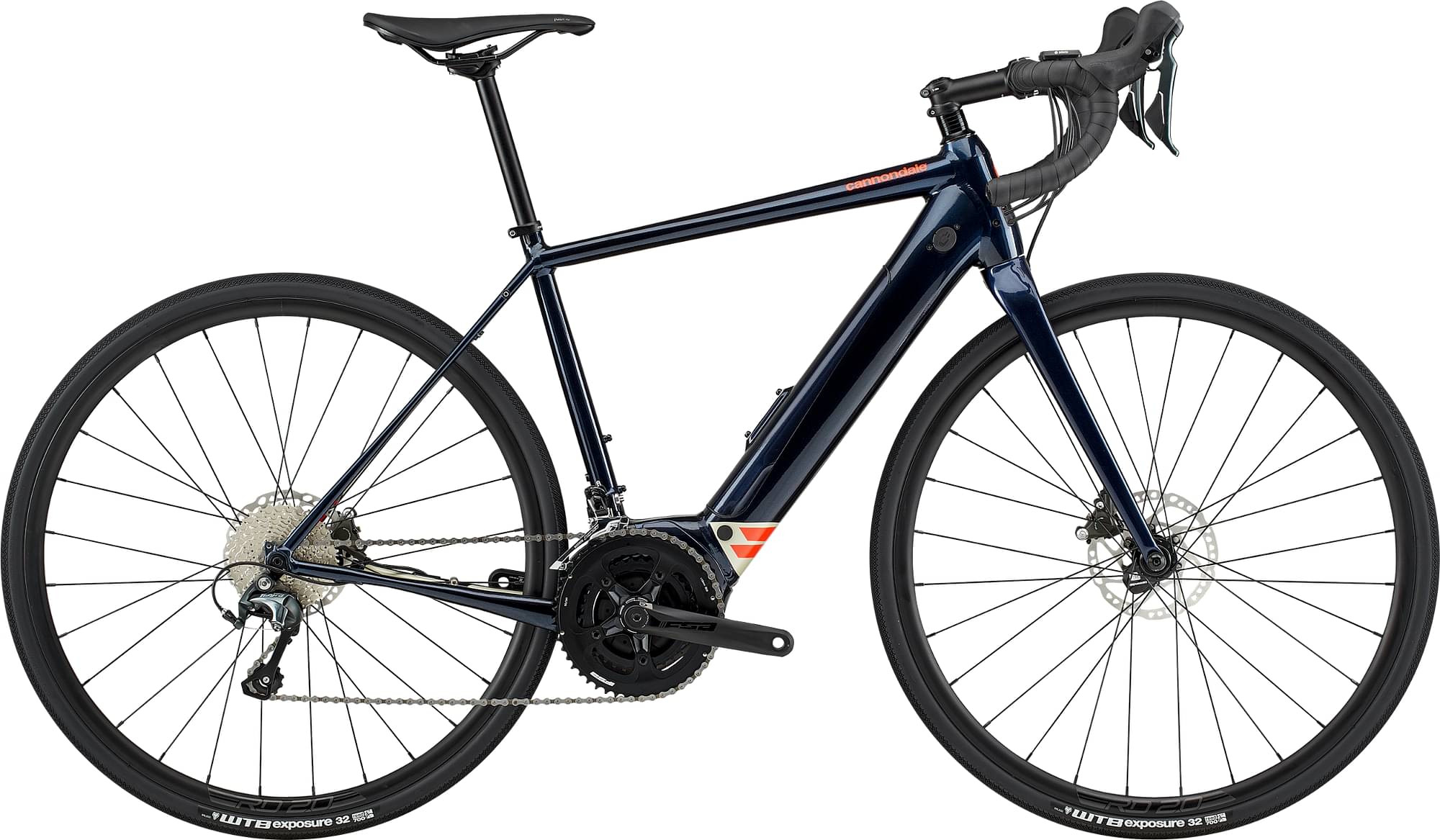

Cannondale Synapse Neo 2 2023
2023 E-bike
Estimate price |
4,684$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, 105 -
Suspension Rigid -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerTube 500Wh -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 167cm
MD
162cm - 175cm
LG
170cm - 182cm
XL
175cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C1 Alloy, removable downtube battery, SAVE, Ai, internal cable routing, flat mount brake, 12x142 thru-axle, Si kickstand mount, rack/fender mounts
Suspension Fork
BallisTec Carbon, 1-1/8" to 1.5" tapered steerer, 55mm offset, flat mount brake, 12x100 thru axle, fender mounts, hidden cable routing
Drivetrain
Rear Derailleur
Shimano Tiagra GS
Front Derailleur
Shimano 105, braze-on
Shift Levers
Shimano Tiagra, 2x10
Cassette
Shimano HG500, 11-34, 10-speed
Crank
FSA Bosch E-Bike w/ custom Ai offset, 50/34
Bottom Bracket
Cannondale AI, 83mm, press-fit
Chain
Shimano HG54, 10-speed
Pedals
Not Included
Wheels
Front Hub
Formula CL-712
Rear Hub
RXC-142S
Rims
RD 2.0, 28h
Spokes
DT Swiss Champion
Tires
WTB Exposure Comp, 700 x 32c, Distance compound
Brakes
Brakes
Shimano Tiagra hydraulic disc, 160/160mm RT64 rotors
Brake Levers
Shimano Tiagra hydraulic disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 7-degree
Handlebar
Cannondale 3, 6061 alloy, Compact
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
Seat
Saddle
Fabric Scoop Shallow Sport, steel rails
Seatpost
Cannondale 3, 6061 Alloy, 25.4, 350mm (S-M), 400mm (L-XL)
Motor & Battery
Motor
Bosch Active Line Plus 250W w/Cannondale ACR software
Battery
Bosch PowerTube 500Wh
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.5 mm | 1.55 mm | 1.57 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 605 mm | 624 mm | 644 mm | 666 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 62 mm | 62 mm | 62 mm | 62 mm |
| Stack | 541 mm | 571 mm | 603 mm | 632 mm |
| Reach | 372 mm | 381 mm | 390 mm | 402 mm |
| Top Tube Length | 529 mm | 546 mm | 570 mm | 591 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 445 mm | 490 mm | 535 mm | 580 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 126 mm | 157 mm | 191 mm | 222 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1028 mm | 1047 mm | 1067 mm | 1028 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 724 mm | 764 mm | 804 mm | 844 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 154 cm | 162 cm | 170 cm | 175 cm |
| Rider Max Height | 167 cm | 175 cm | 182 cm | 198 cm |
About this model
Synapse Neo 2 is part of the Cannondale E Synapse model. There are 19 e-bikes that carry this model name. You can easily view all of the Cannondale E Synapse e-bikes models from 2023, here.
Model range prices
Cannondale Synapse Neo 2 2023 is the most economical model, with a starting price of 4257$. Cannondale Synapse Neo EQ 2023 on the other hand costs 4744$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Endurance e-bikes average price
Our math shows that the average cost of a dependable Endurance e-bike is 3800$. However, even though the average price of an Endurance e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 4257$. If we compare this with the average Endurance e-bike cost we notice that the price is 12.03% higher.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Cannondale Synapse Neo 2 2023, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Cannondale Synapse Neo 2 e-bike has 4 sizes, in the range of 154 cm – 198 cm (5.05 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
