Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora, FSA -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
48cm
157cm - 167cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
175cm - 185cm
58cm
182cm - 193cm
61cm
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, SAVE, BB30, internal cable routing, flat mount, 130x9mm QR
Suspension Fork
BallisTec Full Carbon, integrated crown race, SAVE, 12x100mm thru-axle, internal routing
Drivetrain
Rear Derailleur
Shimano Sora GS
Front Derailleur
Shimano Sora, braze-on
Shift Levers
Shimano Sora, 9-speed
Cassette
Shimano HG400, 11-34, 9-speed
Crank
FSA Vero Alloy, 50/34
Bottom Bracket
Cartridge, square taper
Chain
KMC Z9, 9-speed
Pedals
Not Included
Wheels
Front Hub
Formula CRX-512, 12x100mm
Rear Hub
Alloy, sealed loose ball bearing, QR
Rims
RD, 28h
Spokes
Stainless steel, 14g
Tires
Vittoria Zaffiro, 700x28c
Brakes
Brakes
Promax Decoder R mechanical disc, 160/160mm rotors
Brake Levers
Shimano Sora
Cockpit
Stem
Cannondale 4, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 4, 6061 alloy, Compact
Grips
Cannondale Bar Tape, 3.5mm
Headset
FSA Sealed Bearing, Integrated, 1-1/4"-1-1/8"
Seat
Saddle
Cannondale Stage Ergo
Seatpost
Cannondale 4, 6061 Alloy, 25.4x300mm (48-51), 350mm (54-56), 400mm (58-61)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.46 mm | 1.48 mm | 1.51 mm | 1.54 mm | 1.58 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 272 mm | 272 mm | 275 mm | 275 mm |
| Front Center | 598 mm | 608 mm | 602 mm | 612 mm | 622 mm | 638 mm |
| Rake | 60 mm | 60 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 57 mm | 55 mm | 60 mm | 59 mm | 58 mm | 56 mm |
| Stack | 535 mm | 555 mm | 575 mm | 594 mm | 614 mm | 644 mm |
| Reach | 376 mm | 381 mm | 388 mm | 394 mm | 399 mm | 408 mm |
| Top Tube Length | 522 mm | 536 mm | 552 mm | 568 mm | 585 mm | 609 mm |
| Seat Tube Angle | 74.6 ° | 74.3 ° | 73.9 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 422 mm | 443 mm | 480 mm | 520 mm | 550 mm | 590 mm |
| Head Tube Angle | 70.8 ° | 71 ° | 71.9 ° | 72.1 ° | 72.3 ° | 72.5 ° |
| Head Tube Length | 123 mm | 143 mm | 159 mm | 178 mm | 202 mm | 232 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1004 mm | 1015 mm | 1009 mm | 1019 mm | 1030 mm | 1046 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 73 mm | 73 mm | 70 mm | 70 mm |
| Standover Height | 706 mm | 727 mm | 760 mm | 792 mm | 821 mm | 856 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 170 cm | 175 cm | 182 cm | 190 cm |
| Rider Max Height | 167 cm | 175 cm | 180 cm | 185 cm | 193 cm | 203 cm |
About this model

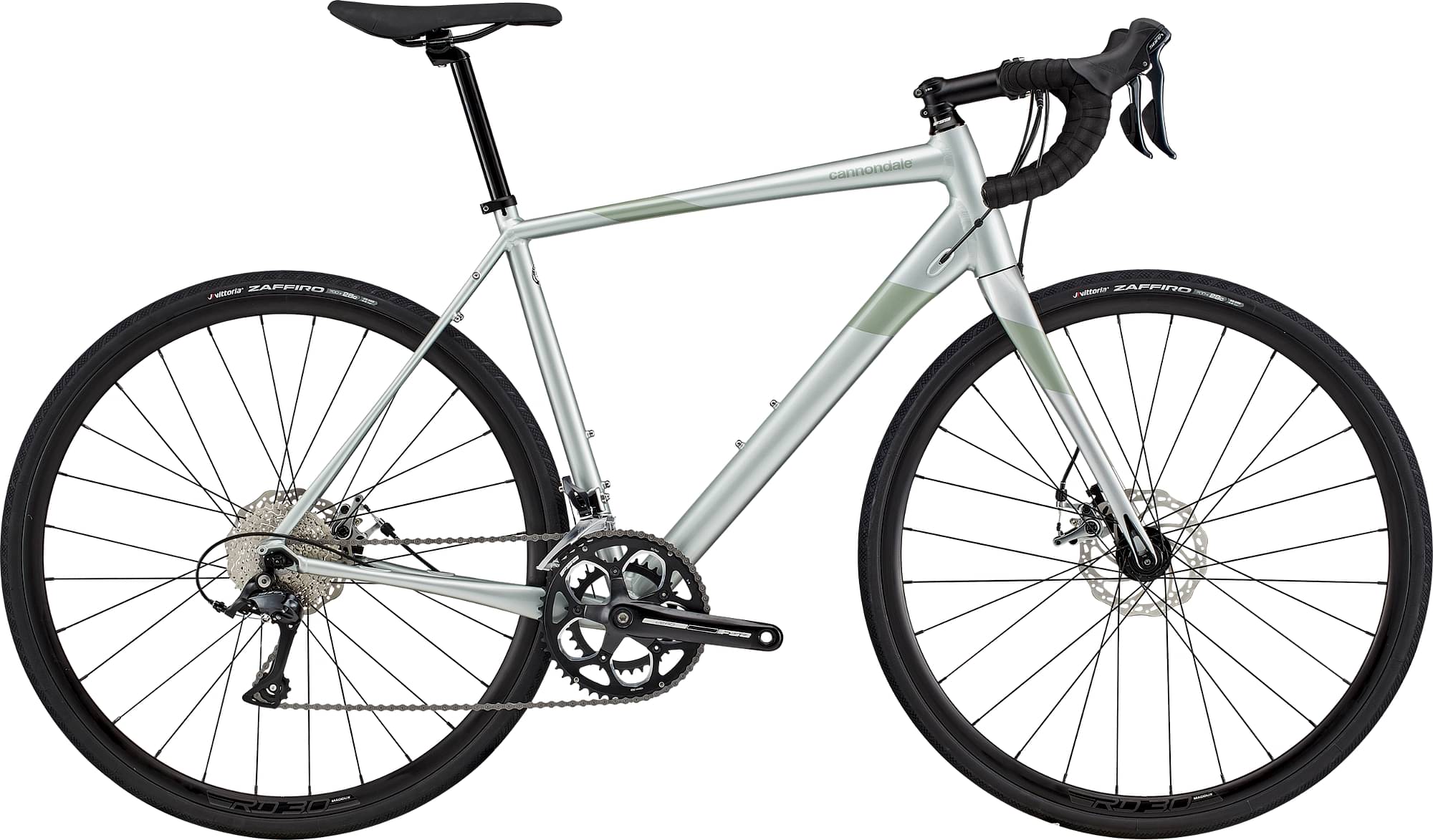

Synapse Sora belongs to the Cannondale Synapse model. There are 194 bikes that carry this model name. Take a sneak peek at all Cannondale Synapse bikes models from 2023, by clicking here.
Model range prices
Cannondale Synapse 3 2023 is the most affordable bike of this model and has a price of 1300$. On the other hand, Cannondale Synapse Carbon 1 RLE 2023, is the most expensive and costs 9050$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Endurance bikes
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 1325$. Comparing the average cost of an Endurance bike to this one, you will see that Synapse Sora price is 77.06% lower.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Synapse Sora components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the Synapse Sora model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Synapse Sora has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 157 cm – 203 cm (5.15 ft – 6.66 ft). In conclusion, you won’t have a problem finding one that suits you.
