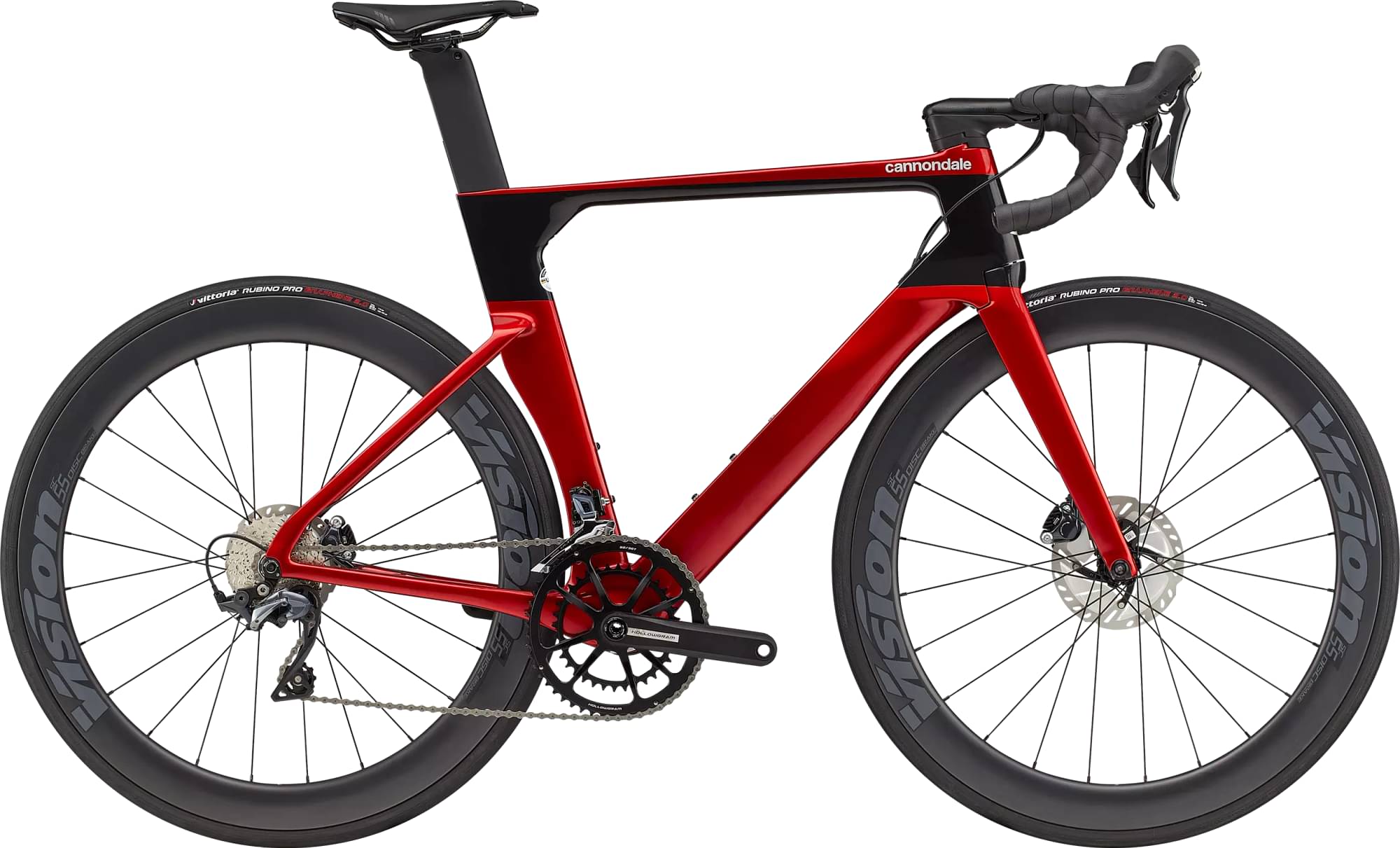

Cannondale SystemSix Carbon Ultegra 2022
2022 Road
Estimate price |
6,536$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
160cm - 170cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
177cm - 188cm
58cm
182cm - 193cm
60cm
188cm - 198cm
62cm
195cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SystemSix Carbon, integrated cable routing w/ Switchplate, SAVE, PF30a, flat mount disc, 12x142 Speed Release thru-axle
Suspension Fork
SystemSix Carbon, 1-1/8" - 1-1/4" steerer, 12x100mm Speed Release thru-axle, flat mount disc, 55mm offset (47-51cm) 45mm offset (54-62cm)
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra, braze-on
Shift Levers
Shimano Ultegra, 11-speed
Cassette
Shimano 105, 11-30, 11-speed
Crank
HollowGram, BB30a, OPI SpideRing, 52/36
Bottom Bracket
Cannondale Alloy PressFit30
Chain
Shimano HG601, 11-speed
Pedals
Not included
Wheels
Front Hub
TBD
Rear Hub
TBD
Rims
Vision SC55, carbon clincher disc, tubeless ready
Spokes
DP Spokes - 21F / 24R
Tires
Vittoria Rubino Pro Bright Black, 700 x 25c, reflective strip
Brakes
Brakes
Shimano Ultegra hydraulic disc, 160/140mm RT800 rotors
Brake Levers
Shimano Ultegra
Cockpit
Stem
HollowGram KNØT, Alloy w/ cable cover, -17°
Handlebar
HollowGram KNØT SystemBar, Carbon, 8 deg. pitch adjust
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1-1/8" - 1-1/4
Seat
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
HollowGram 60 KNØT Carbon, 330mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.36 mm | 1.4 mm | 1.43 mm | 1.46 mm | 1.49 mm | 1.51 mm |
| Bottom Bracket Height | 261 mm | 266 mm | 269 mm | 269 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 582 mm | 595 mm | 581 mm | 593 mm | 605 mm | 617 mm | 629 mm |
| Rake | 55 mm | 55 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 58 mm | 58 mm | 57 mm | 57 mm | 57 mm | 58 mm | 58 mm |
| Stack | 502 mm | 522 mm | 542 mm | 562 mm | 582 mm | 602 mm | 622 mm |
| Reach | 377 mm | 383 mm | 388 mm | 394 mm | 400 mm | 405 mm | 411 mm |
| Top Tube Length | 516 mm | 531 mm | 546 mm | 562 mm | 578 mm | 594 mm | 611 mm |
| Seat Tube Angle | 74.5 ° | 74.1 ° | 73.7 ° | 73.3 ° | 72.9 ° | 72.5 ° | 72.1 ° |
| Seat Tube Length | 385 mm | 433 mm | 482 mm | 530 mm | 553 mm | 577 mm | 600 mm |
| Head Tube Angle | 71.2 ° | 71.2 ° | 73 ° | 73 ° | 73 ° | 72.9 ° | 72.9 ° |
| Head Tube Length | 88 mm | 114 mm | 128 mm | 149 mm | 172 mm | 193 mm | 214 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 976 mm | 991 mm | 977 mm | 989 mm | 1002 mm | 1014 mm | 1026 mm |
| Bottom Bracket Drop | 79 mm | 74 mm | 72 mm | 72 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 682 mm | 725 mm | 764 mm | 800 mm | 823 mm | 845 mm | 865 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 165 cm | 170 cm | 177 cm | 182 cm | 188 cm | 195 cm |
| Rider Max Height | 170 cm | 175 cm | 180 cm | 188 cm | 193 cm | 198 cm | 205 cm |
About this model
SystemSix Carbon Ultegra completes the Cannondale Systemsix model. Cannondale released 33 bikes variations of this model so far. You can easily view all of the Cannondale Systemsix bikes models from 2022, here.
Model range prices
Cannondale SystemSix Carbon Ultegra 2022 is the most affordable bike of this model and has a price of 6051$. On the other hand, Cannondale SystemSix Hi-MOD Red eTap AXS 2022, is the most expensive and costs 13050$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Aero bikes
If you want an acceptable Aero bike you should know that the average price is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2022 and its price was 6051$. Doing a quick comparison, we notice that SystemSix Carbon Ultegra price is 43.7% higher than the average cost of an Aero bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
SystemSix Carbon Ultegra components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the SystemSix Carbon Ultegra bike is equipped with the 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
SystemSix Carbon Ultegra comes in 7 sizes, that range from 160 cm – 205 cm (5.25 ft – 6.73 ft). In short, you can easily find one that suits you.
