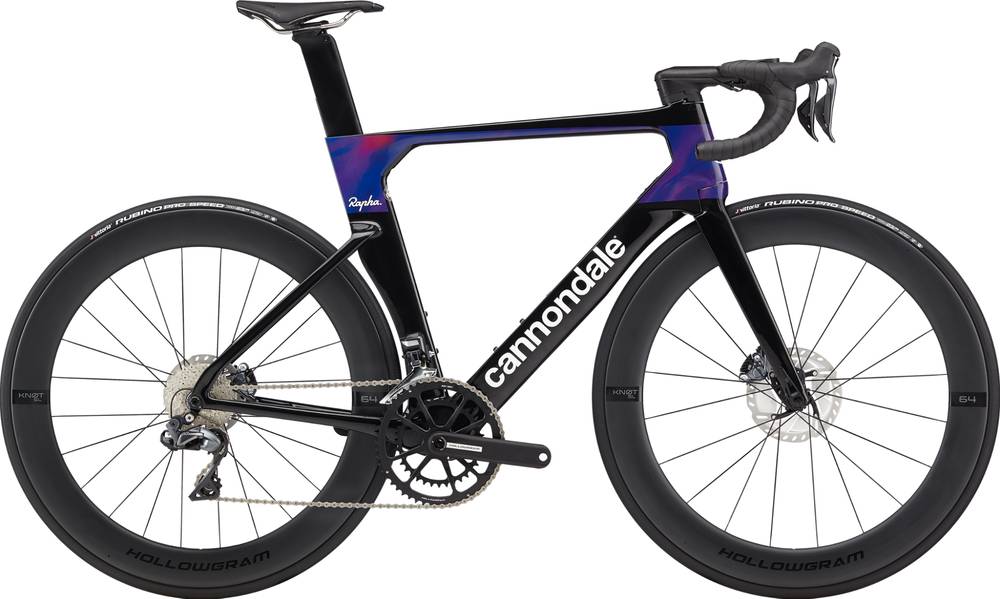

Cannondale SystemSix Carbon Ultegra Di2 2020
2020 Road
Estimate price |
7,250$
Weight | 7.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BallisTec Carbon, integrated cable routing w/ Switchplate, SAVE, PF30a, flat mount disc, 142x12 Speed Release thru-axle, Integrated cable routing w/ Switchplate, SAVE, PF30a, Flat mount disc, 142x12 Speed Release thru-axle
Suspension Fork
BallisTec Carbon, 1-1/8" - 1-1/4" steerer, 12x100mm Speed Release thru-axle, flat mount disc, 55mm offset (47-51cm) 45mm offset (54-62cm)
Drivetrain
Rear Derailleur
Shimano Ultegra Di2
Front Derailleur
Shimano Ultegra Di2, braze-on
Shift Levers
Shimano Ultegra Di2 hydro disc, 2x11
Cassette
Shimano Ultegra, 11-30, 11-speed
Crank
HollowGram, BB30a w/ OPI SpideRing, 52/36
Bottom Bracket
Cannondale Alloy PressFit30
Chain
Shimano HG701, 11-speed
Pedals
Not Included
Wheels
Front Hub
HollowGram KNØT, sealed bearing 12x100 centerlock
Rear Hub
HollowGram KNØT, 12x142 centerlock w/ DT Swiss internals
Rims
HollowGram 64 SL KNØT, Carbon, 20h front, 24h rear, 64mm deep, 21mm ID, tubeless ready
Spokes
DT Swiss Aerolite, straight pull
Tires
Vittoria Rubino Pro Speed, 700 x 26mm (23c)
Brakes
Brakes
Shimano Ultegra Di2 hydro disc, 160/140mm RT800 rotors
Brake Levers
Shimano Ultegra Di2 hydro disc
Cockpit
Stem
HollowGram Stem KNØT, alloy w/ cable cover, -17°
Handlebar
HollowGram SystemBar KNØT, alloy w/ cable cover
Grips
Cannondale Grip Bar Tape w/Gel, 3.5mm
Headset
Tapered, 1-1/8” upper, 1-1/4” lower bearing
Seat
Saddle
Prologo Dimension NDR, 143mm width, Tirox rails
Seatpost
HollowGram 60 KNØT Carbon, 330mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.36 mm | 1.4 mm | 1.43 mm | 1.46 mm | 1.49 mm | 1.51 mm |
| Bottom Bracket Height | 261 mm | 266 mm | 269 mm | 269 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 582 mm | 595 mm | 581 mm | 593 mm | 605 mm | 617 mm | 629 mm |
| Rake | 55 mm | 55 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 58 mm | 58 mm | 57 mm | 57 mm | 57 mm | 58 mm | 58 mm |
| Stack | 502 mm | 522 mm | 542 mm | 562 mm | 582 mm | 602 mm | 622 mm |
| Reach | 377 mm | 383 mm | 388 mm | 394 mm | 400 mm | 405 mm | 411 mm |
| Top Tube Length | 516 mm | 531 mm | 546 mm | 562 mm | 578 mm | 594 mm | 611 mm |
| Seat Tube Angle | 74.5 ° | 74.1 ° | 73.7 ° | 73.3 ° | 72.9 ° | 72.5 ° | 72.1 ° |
| Seat Tube Length | 385 mm | 433 mm | 482 mm | 530 mm | 553 mm | 577 mm | 600 mm |
| Head Tube Angle | 71.2 ° | 71.2 ° | 73 ° | 73 ° | 73 ° | 72.9 ° | 72.9 ° |
| Head Tube Length | 88 mm | 114 mm | 128 mm | 149 mm | 172 mm | 193 mm | 214 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 976 mm | 991 mm | 977 mm | 989 mm | 1002 mm | 1014 mm | 1026 mm |
| Bottom Bracket Drop | 79 mm | 74 mm | 72 mm | 72 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 682 mm | 725 mm | 764 mm | 800 mm | 823 mm | 845 mm | 865 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
SystemSix Carbon Ultegra Di2 is a Cannondale Systemsix model. There are 33 bikes that carry this model name. Take a sneak peek at all Cannondale Systemsix bikes models from 2020, by clicking here.
Model range prices
Cannondale SystemSix Carbon Ultegra 2020 is the most economical model, with a starting price of 4750$. Cannondale SystemSix Hi-MOD Dura Ace Di2 2020 on the other hand costs 12000$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Aero bikes
If you want to purchase a solid Aero bike, it is important to know that the average cost is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2020 for 7250$. In conclusion, this bike price is 72.17% higher than the price of the average Aero bike.
Aero bikes average weight
The average weight for Aero bikes is 7.34 kg (16.18 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
SystemSix Carbon Ultegra Di2 weighs 7.8 kg (17.2 lbs) and is a bit heavier than the average. To sum up, it’s 6.27% heavier than the average weight of Aero bikes.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
SystemSix Carbon Ultegra Di2 components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The wheels on SystemSix Carbon Ultegra Di2 are the 700c carbon type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
