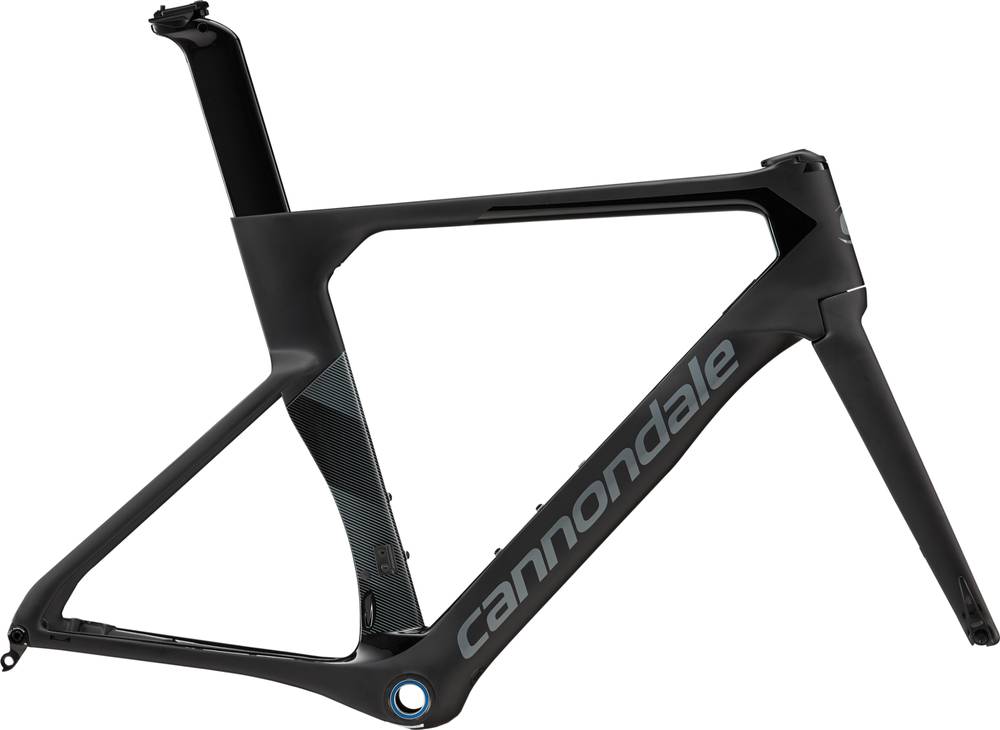

Cannondale SystemSix Hi-MOD Frameset 2019
2019 Road
Estimate price |
4,500$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALL-NEW SystemSix, BallisTec Hi-MOD Carbon, Di2 ready, SAVE, BB30a, flat mount, Speed Release thru-axle
Suspension Fork
ALL-NEW SystemSix, BallisTec Hi-MOD Carbon, Speed Release thru-axle
Drivetrain
Bottom Bracket
Cannondale Alloy PressFit30
Cockpit
Headset
Tapered, 1-1/8” upper, 1-1/4” lower bearing
Seat
Seatpost
Cannondale KNØT Carbon, 330mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.36 mm | 1.4 mm | 1.43 mm | 1.46 mm | 1.49 mm | 1.51 mm |
| Bottom Bracket Height | 261 mm | 266 mm | 269 mm | 269 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 582 mm | 595 mm | 581 mm | 593 mm | 605 mm | 617 mm | 629 mm |
| Rake | 55 mm | 55 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 58 mm | 58 mm | 57 mm | 57 mm | 57 mm | 58 mm | 58 mm |
| Stack | 502 mm | 522 mm | 542 mm | 562 mm | 582 mm | 602 mm | 622 mm |
| Reach | 377 mm | 383 mm | 388 mm | 394 mm | 400 mm | 405 mm | 411 mm |
| Top Tube Length | 516 mm | 531 mm | 546 mm | 562 mm | 578 mm | 594 mm | 611 mm |
| Seat Tube Angle | 74.5 ° | 74.1 ° | 73.7 ° | 73.3 ° | 72.9 ° | 72.5 ° | 72.1 ° |
| Seat Tube Length | 385 mm | 433 mm | 482 mm | 530 mm | 553 mm | 577 mm | 600 mm |
| Head Tube Angle | 71.2 ° | 71.2 ° | 73 ° | 73 ° | 73 ° | 72.9 ° | 72.9 ° |
| Head Tube Length | 88 mm | 114 mm | 128 mm | 149 mm | 172 mm | 193 mm | 214 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 976 mm | 991 mm | 977 mm | 989 mm | 1002 mm | 1014 mm | 1026 mm |
| Bottom Bracket Drop | 79 mm | 74 mm | 72 mm | 72 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 682 mm | 725 mm | 764 mm | 800 mm | 823 mm | 845 mm | 865 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
SystemSix Hi-MOD Frameset is a Cannondale Systemsix model. There are 33 frames that carry this model name. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Aero frames
If you want to purchase a solid Aero frame, it is important to know that the average cost is 2657$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Aero frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4500$. Comparing this to the average Aero frame price, we see that the price is 69.36% higher.
SystemSix Hi-MOD Frameset components
Fork material
When it comes to the fork, this frame has a carbon one, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
