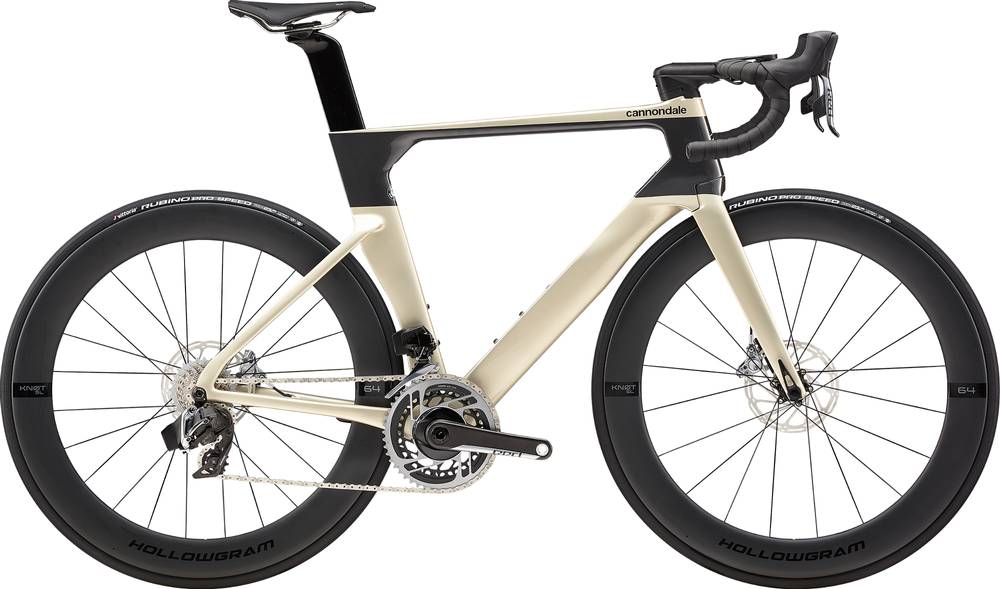

Cannondale SystemSix Hi-MOD Red eTap AXS 2020
2020 Road
Estimate price |
11,000$
Weight | 7.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED eTAP -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BallisTec Hi-MOD Carbon, integrated cable routing w/ Switchplate, SAVE, PF30a, flat mount disc, 142x12 Speed Release thru-axle, Integrated cable routing w/ Switchplate, SAVE, PF30a, Flat mount disc, 142x12 Speed Release thru-axle
Suspension Fork
BallisTec Hi-MOD Carbon, 1-1/8" - 1-1/4" steerer, 12x100mm Speed Release thru-axle, flat mount disc, 55mm offset (47-51cm) 45mm offset (54-62cm)
Drivetrain
Rear Derailleur
SRAM RED eTap AXS
Front Derailleur
SRAM RED eTap AXS, braze-on
Shift Levers
SRAM RED eTap AXS HRD, 2x12
Cassette
SRAM XG-1290, 10-28, 12-speed
Crank
SRAM RED Carbon, 48/35
Bottom Bracket
SRAM RED DUB PF30
Chain
SRAM RED, 12-speed
Pedals
Not Included
Wheels
Front Hub
HollowGram KNØT, sealed bearing 12x100 centerlock
Rear Hub
HollowGram KNØT, 12x142 centerlock w/ DT Swiss internals, SRAM XDR driver
Rims
HollowGram 64 SL KNØT, Carbon, 20h front, 24h rear, 64mm deep, 21mm ID, tubeless ready
Spokes
DT Swiss Aerolite, straight pull
Tires
Vittoria Rubino Pro Speed, 700 x 26mm (23c)
Brakes
Brakes
SRAM RED eTap AXS HRD, 160/160mm Centerlock rotors
Brake Levers
SRAM RED eTap AXS HRD
Cockpit
Stem
HollowGram Stem KNØT, alloy w/ cable cover, -17°
Handlebar
HollowGram SystemBar KNØT, alloy w/ cable cover
Grips
Cannondale Grip Bar Tape w/Gel, 3.5mm
Headset
Tapered, 1-1/8” upper, 1-1/4” lower bearing
Seat
Saddle
Prologo Dimension NDR, 143mm width, Tirox rails
Seatpost
HollowGram 60 KNØT Carbon, 330mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.36 mm | 1.4 mm | 1.43 mm | 1.46 mm | 1.49 mm | 1.51 mm |
| Bottom Bracket Height | 261 mm | 266 mm | 269 mm | 269 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 582 mm | 595 mm | 581 mm | 593 mm | 605 mm | 617 mm | 629 mm |
| Rake | 55 mm | 55 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 58 mm | 58 mm | 57 mm | 57 mm | 57 mm | 58 mm | 58 mm |
| Stack | 502 mm | 522 mm | 542 mm | 562 mm | 582 mm | 602 mm | 622 mm |
| Reach | 377 mm | 383 mm | 388 mm | 394 mm | 400 mm | 405 mm | 411 mm |
| Top Tube Length | 516 mm | 531 mm | 546 mm | 562 mm | 578 mm | 594 mm | 611 mm |
| Seat Tube Angle | 74.5 ° | 74.1 ° | 73.7 ° | 73.3 ° | 72.9 ° | 72.5 ° | 72.1 ° |
| Seat Tube Length | 385 mm | 433 mm | 482 mm | 530 mm | 553 mm | 577 mm | 600 mm |
| Head Tube Angle | 71.2 ° | 71.2 ° | 73 ° | 73 ° | 73 ° | 72.9 ° | 72.9 ° |
| Head Tube Length | 88 mm | 114 mm | 128 mm | 149 mm | 172 mm | 193 mm | 214 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 976 mm | 991 mm | 977 mm | 989 mm | 1002 mm | 1014 mm | 1026 mm |
| Bottom Bracket Drop | 79 mm | 74 mm | 72 mm | 72 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 682 mm | 725 mm | 764 mm | 800 mm | 823 mm | 845 mm | 865 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
SystemSix Hi-MOD Red eTap AXS completes the Cannondale Systemsix model. There are 33 bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Cannondale SystemSix Carbon Ultegra 2020 is the cheapest bike model and costs 4750$. Cannondale SystemSix Hi-MOD Dura Ace Di2 2020 is the most expensive one and costs 12000$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Aero bikes average price
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Aero bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Cannondale SystemSix Hi-MOD Red eTap AXS price was 11000$. If we compare this with the average Aero bike cost we notice that the price is 161.22% higher.
Aero bikes average weight
The average weight for Aero bikes is 7.34 kg (16.18 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Cannondale SystemSix Hi-MOD Red eTap AXS it’s weighing 7.9 kg (17.42 lbs). At this weight, is a bit heavier than average. In other words, this model is 7.63% heavier than the average Aero bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
SystemSix Hi-MOD Red eTap AXS components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The SystemSix Hi-MOD Red eTap AXS 2020 bike is equipped with 700c carbon wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Cannondale SystemSix Hi-MOD Red eTap AXS has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
