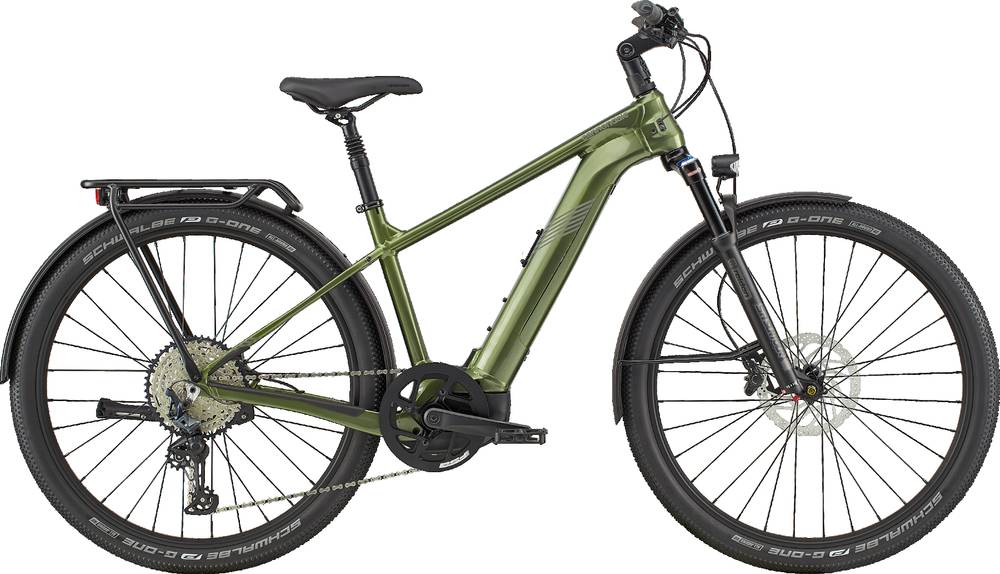

Cannondale Tesoro Neo X 1 SMU 2020
2020 E-bike
Estimate price |
4,750$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour RAIDON 34
-
Groupset SLX -
Suspension Hardtail -
Motor Bosch -
Battery Bosch PowerTube 500Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C1 Alloy, Dual Battery ready, removable downtube battery, SAVE, tapered headtube, internal cable routing, Ai offset drivetrain, 148x12mm thru-axle, post mount disc, integrated speed sensor, KickFlip hidden kickstand mount, motor protection, lock mount, Dual Battery ready, Removable downtube battery, SAVE, Tapered headtube, Internal cable routing, Ai offset drivetrain, 148x12mm thru-axle, Post mount disc, KickFlip hidden kickstand mount
Suspension Fork
SR Suntour Raidon 34, 100mm, 15x110, 46mm offset
Drivetrain
Rear Derailleur
Shimano SLX, SGS Shadow Plus
Shift Levers
Shimano SLX, 12-speed
Cassette
Shimano SLX, 10-51, 12-speed
Crank
Bosch Gen4 w/ custom Ai offset, 46T
Bottom Bracket
Cannondale AI, 83mm, press-fit
Chain
KMC X12, 12-speed
Pedals
Cannondale Fitness
Wheels
Front Hub
Shimano MT400 15x110
Rear Hub
(F) Shimano MT400 15x110 / (R) Shimano MT510, 12x148
Rims
WTB STX i29 TCS, 32h, tubeless ready
Spokes
DT Swiss Champion
Tires
Schwalbe G-One Allround Performance, 29 x 2.25", RaceGuard, tubeless ready
Brakes
Brakes
Shimano Deore M6000 hydro disc, 203/180mm RT30 rotors
Brake Levers
Shimano Deore M6000 hydro disc
Cockpit
Stem
Cannondale Adjustable, A-headset, 31.8mm
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm
Grips
Cannondale Ergo Performance, Lock-On
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Cannondale Ergo Touring
Seatpost
Suspension Seatpost S/M 350mm, L/XL 400mm
Motor & Battery
Motor
Bosch PowerTube 500Wh
Battery
Bosch PowerTube 500Wh
Remote
Bosch Purion
Charger
Bosch 4a
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.47 mm | 1.42 mm | 1.36 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 682 mm | 719 mm | 813 mm | 847 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 92 mm | 92 mm | 92 mm | 92 mm |
| Stack | 626 mm | 626 mm | 634 mm | 641 mm |
| Reach | 390 mm | 427 mm | 448 mm | 471 mm |
| Top Tube Length | 577 mm | 614 mm | 637 mm | 662 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 435 mm | 485 mm | 535 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 128 mm | 128 mm | 136 mm | 144 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1152 mm | 1189 mm | 1213 mm | 1239 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 57 mm | 57 mm |
| Standover Height | 743 mm | 772 mm | 810 mm | 844 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Tesoro Neo X 1 SMU belongs to the Cannondale E Tesoro model. 49 e-bikes variations carry this model name so far. Take a sneak peek at all Cannondale E Tesoro e-bikes models from 2020, by clicking here.
Model range prices
Cannondale Tesoro Neo X 3 2020 is the most affordable e-bike of this model and has a price of 3200$. On the other hand, Cannondale Tesoro Neo X 1 Remixte SMU 2020, is the most expensive and costs 4750$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2020 for 4750$. Doing a quick comparison, we notice that Tesoro Neo X 1 SMU price is 84.9% more expensive than the average cost of a Commuter e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Tesoro Neo X 1 SMU components
Fork
Cannondale Tesoro Neo X 1 SMU 2020 e-bike is equipped with the SunTour RAIDON 34 fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the Tesoro Neo X 1 SMU model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
