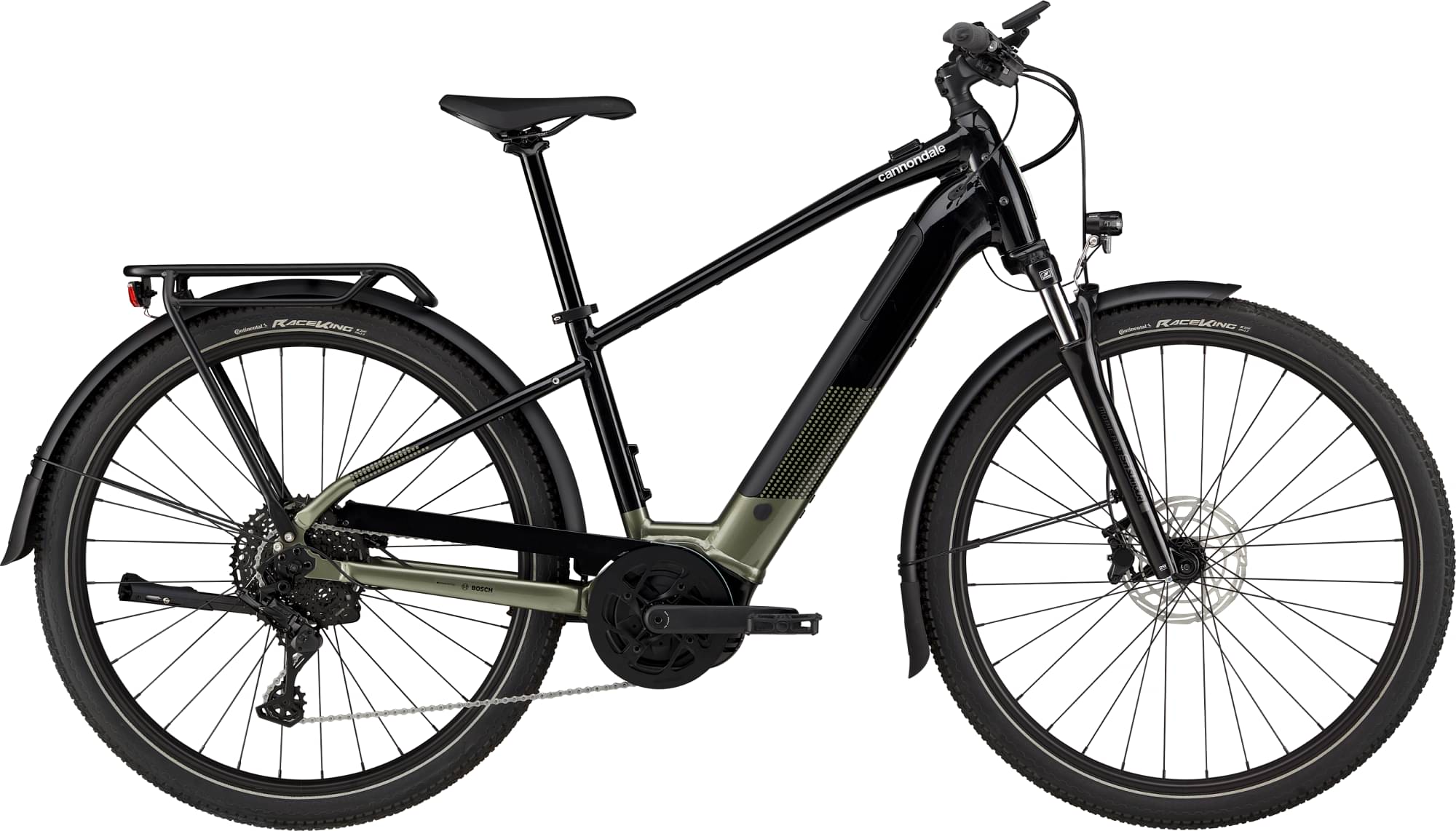

Cannondale Tesoro Neo X 2 2023
2023 E-bike
Estimate price |
3,750$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour MOBIE
-
Groupset microSHIFT Advent X, FSA -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube, 625Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
170cm - 184cm
LG
181cm - 190cm
XL
193cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, removable 625Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection
Suspension Fork
SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset
Drivetrain
Rear Derailleur
microSHIFT Advent X, 10-speed
Shift Levers
microSHIFT Advent X Trail Trigger Pro, 10-speed
Cassette
microSHIFT EH104, 11-48, 10-speed
Crank
FSA for Bosch
Bottom Bracket
Bosch, press-fit
Chain
KMC E10S, EPT anti-rust, 10-speed
Pedals
Cannondale Fitness
Wheels
Front Hub
(F) Formula CL-71, 15x100mm centerlock / (R) Formula CL-26, 135QR centerlock
Rear Hub
(F) Formula CL-71, 15x100mm centerlock / (R) Formula CL-26, 135QR centerlock
Rims
Alloy, double wall, 32 hole, 25mm internal width, disc-specific
Spokes
Stainless Steel, 14g
Tires
Continental Race King, 27.5x2.20" 55-584 (SM), 29x2.20" 55-622 (MD-LG)
Brakes
Brakes
Riderever Attack-U-OE, 2-piston hydraulic disc, 180/180 rotors
Brake Levers
Riderever Attack-U-OE, hydraulic disc
Cockpit
Stem
Cannondale 3 with Intellimount, Alloy, 31.8mm clamp
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm
Grips
Cannondale Ergo Fitness Dual Density, Lock-on
Headset
Semi-Integrated, Tapered; 1-1/8"-1-1/2"
Seat
Saddle
Fizik Essenza Moderate
Seatpost
Cannondale 3, 6061 Alloy, 31.6
Motor & Battery
Motor
Bosch Performance Line Sport (28 mph)
Battery
Bosch PowerTube, 625Wh
Charger
Bosch 4A
Fit data

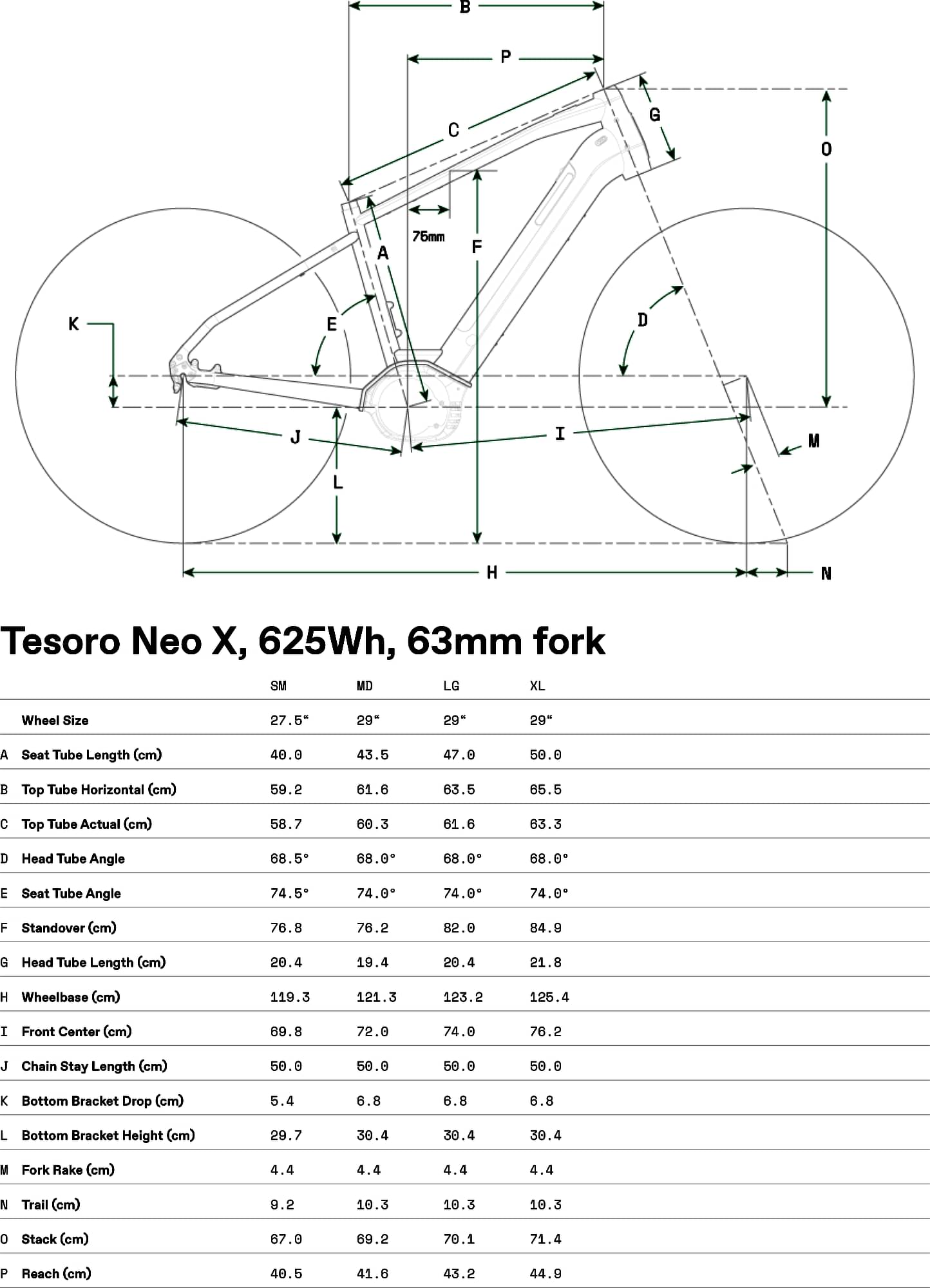

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.47 mm | 1.42 mm | 1.36 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 682 mm | 719 mm | 813 mm | 847 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 92 mm | 92 mm | 92 mm | 92 mm |
| Stack | 626 mm | 626 mm | 634 mm | 641 mm |
| Reach | 390 mm | 427 mm | 448 mm | 471 mm |
| Top Tube Length | 577 mm | 614 mm | 637 mm | 662 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 435 mm | 485 mm | 535 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 128 mm | 128 mm | 136 mm | 144 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1152 mm | 1189 mm | 1213 mm | 1239 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 57 mm | 57 mm |
| Standover Height | 743 mm | 772 mm | 810 mm | 844 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 162 cm | 170 cm | 181 cm | 193 cm |
| Rider Max Height | 172 cm | 184 cm | 190 cm | 203 cm |
Model Overview
Tesoro Neo X 2 is part of the Cannondale E Tesoro model. There are 49 e-bikes that carry this model name. You can easily view all of the Cannondale E Tesoro e-bikes models from 2023, here.
Model range prices
Cannondale Tesoro Neo SL EQ Remixte 2023 is the most affordable e-bike of this model and has a price of 2825$. On the other hand, Cannondale Tesoro Neo X 1 StepThru 2023, is the most expensive and costs 6082$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 3750$. In conclusion, this e-bike price is 45.97% more expensive than the price of the average Commuter e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The Suntour MOBIE is included from the factory. It has a travel distance of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on Tesoro Neo X 2 are the aluminum type. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Cannondale Tesoro Neo X 2 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 162 cm – 203 cm (5.31 ft – 6.66 ft). In conclusion, it won’t take much to find one that’s right for you.
